Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RT20151AK61

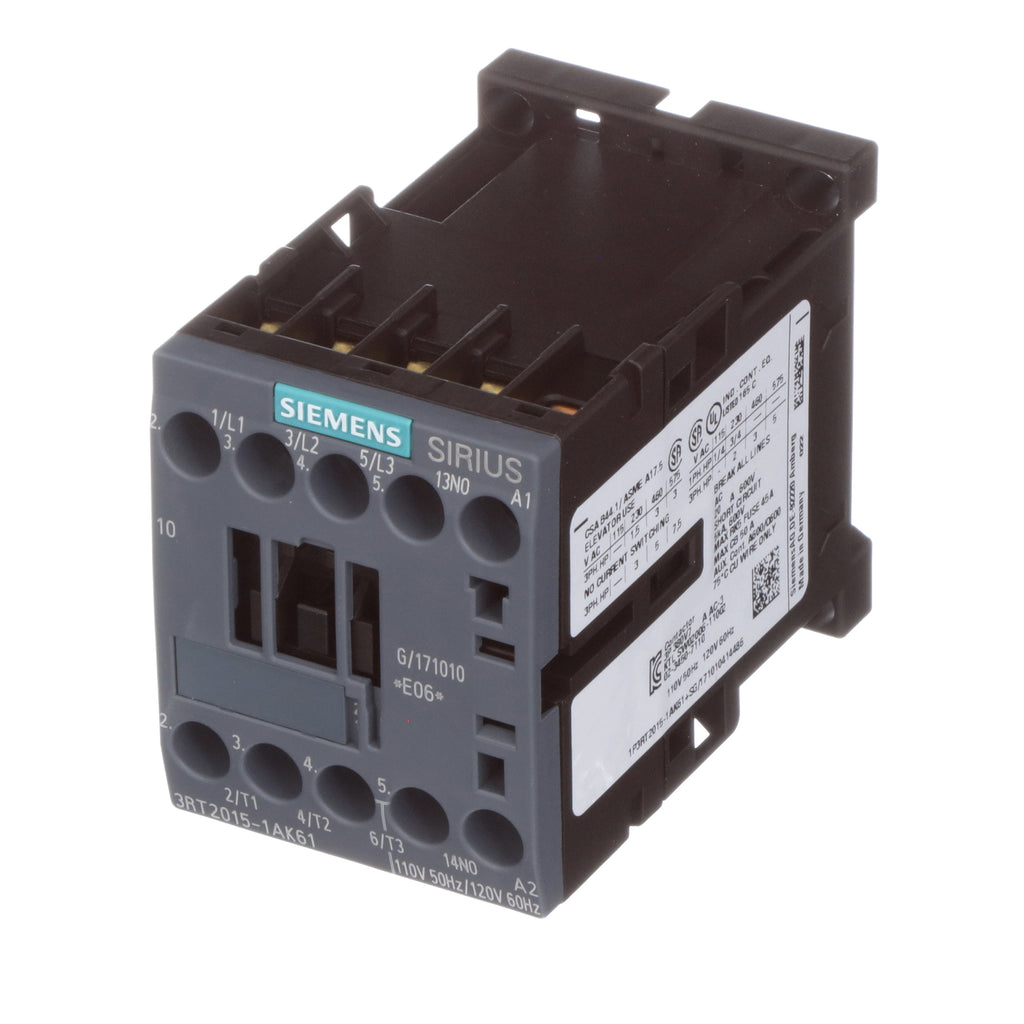

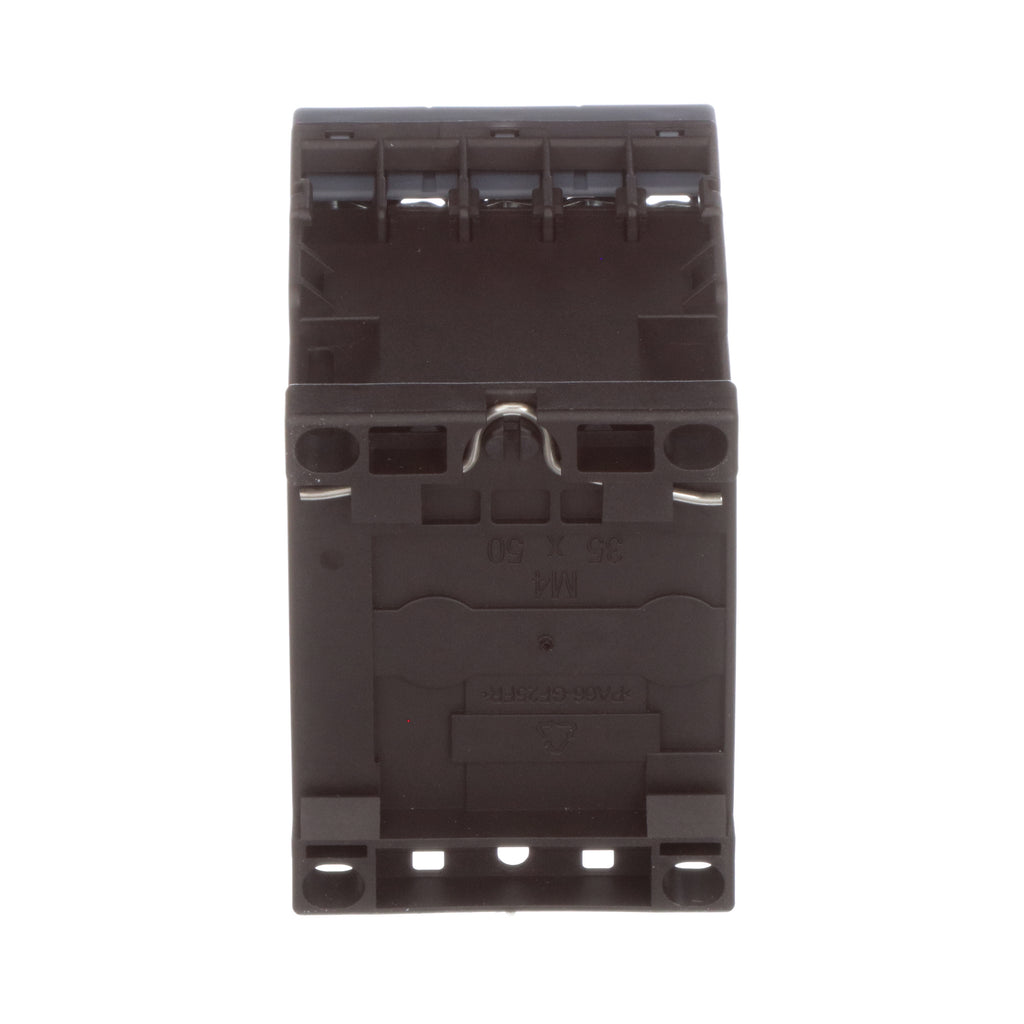

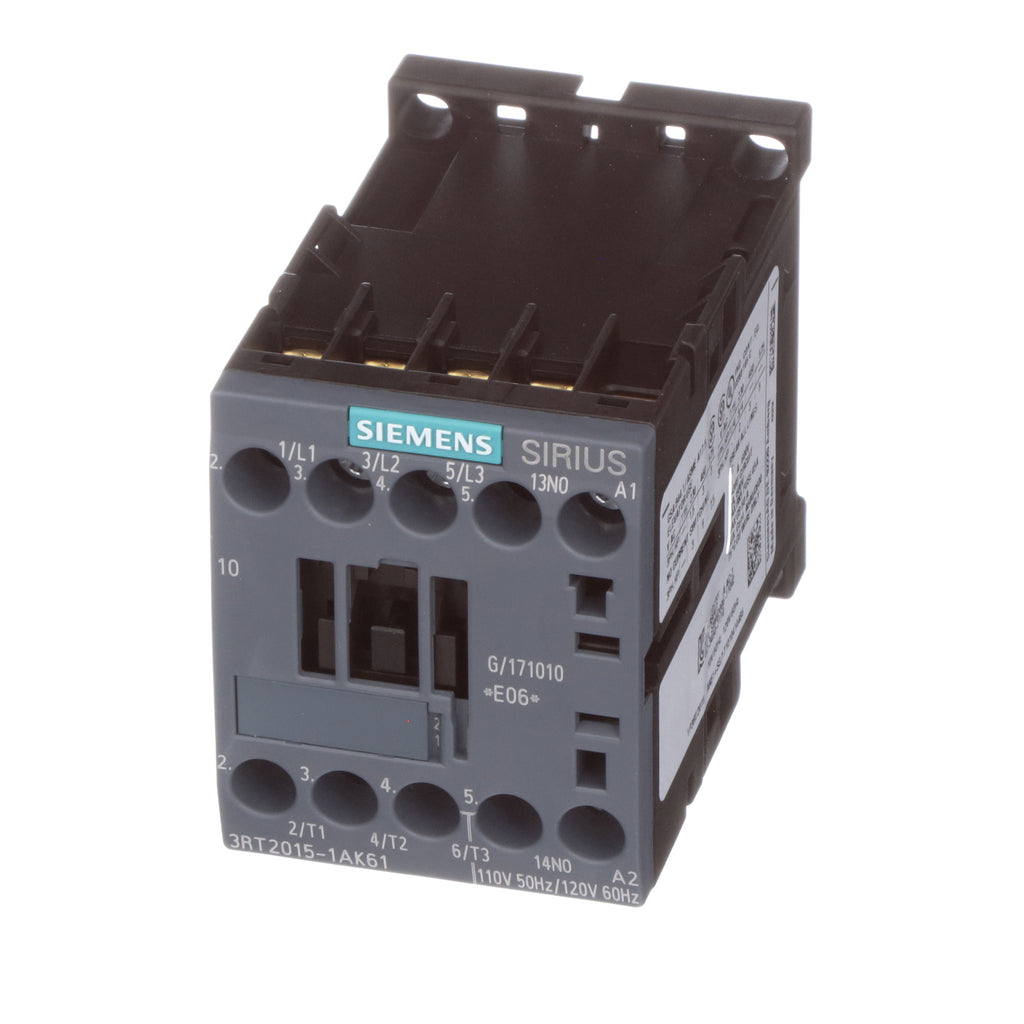

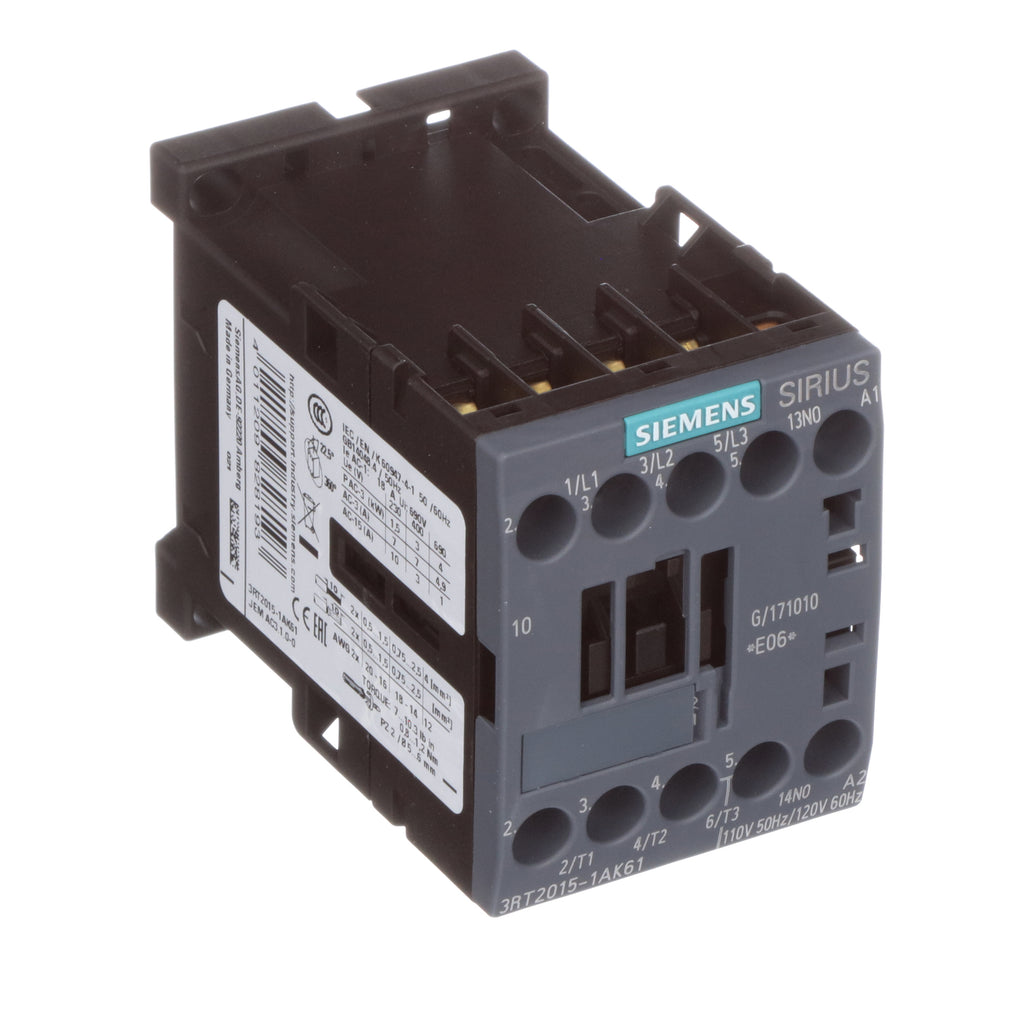

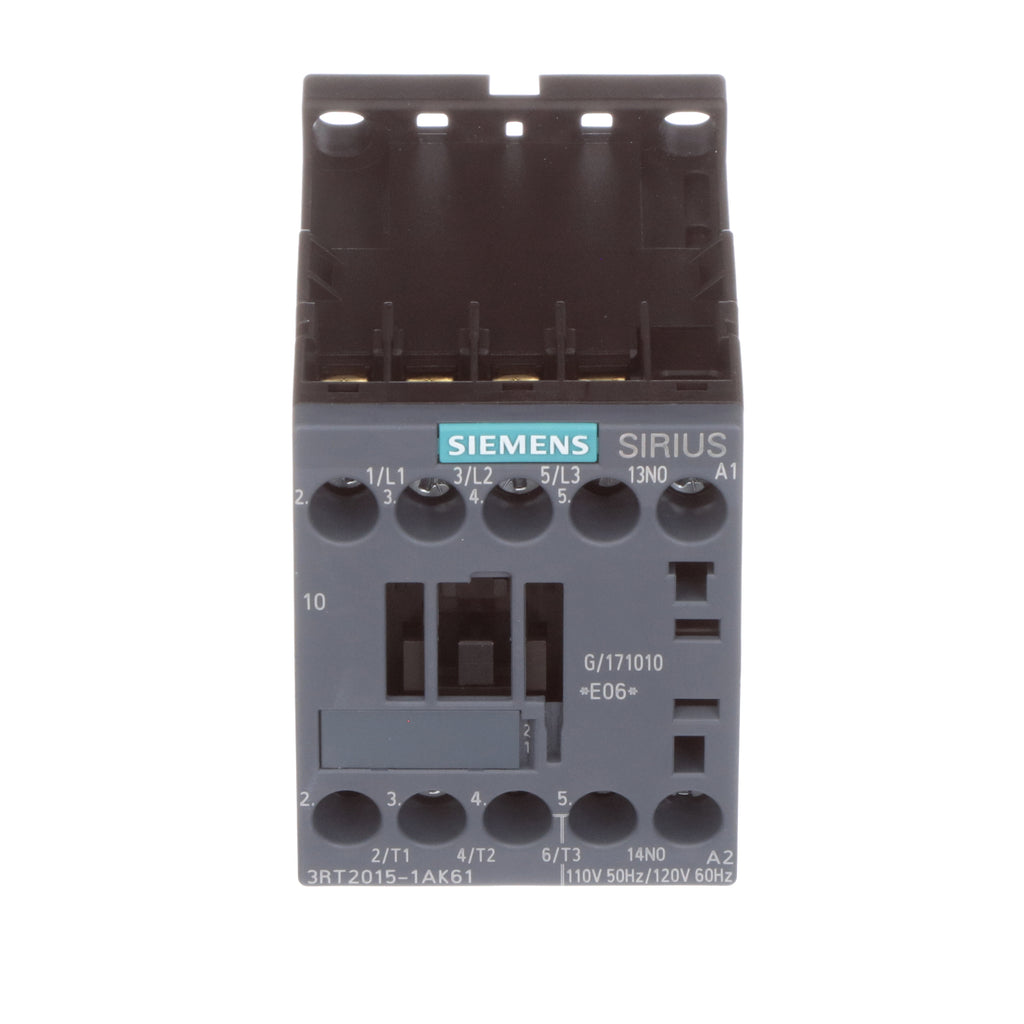

3RT20151AK61 is a Siemens 7 Amp 3-pole IEC contactor with a 120V AC coil and screw terminals designed for motor control applications.This Siemens contactor features a 3 kW power rating at 400V AC, 1 normally open auxiliary contact, and is sized S00 for compact DIN rail or screw mounting.
- Amperage: 7 A AC-3
- Voltage: 110/120 V AC, 50/60 Hz coil
- Poles: 3
- Mounting Type: DIN rail or screw mount
- Contact Configuration: 1 normally open (1 NO) auxiliary contact
- Power Rating: 3 kW at 400 V AC
- Terminal Type: Screw terminals
- Frame/Size: S00
- Operating Temperature: -25 to 60 °C
- Interrupt Rating: IEC standard, suitable for motor control
- Coil Power Rating: 27/24.3 VA pickup, 3.3/4.2 VA holding
- Certifications: IEC compliant
Specifications
- Part Number: 3RT20151AK61
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Contactors
Product Data
- UPC : 662643908817
- Country of Origin : Germany
- Dimensions : 2.421 x 1.969 x 3.051 inch
- Weight : 0.511 lb
- Certification : REACH Art 33, WEEE (2012/19/EU)
