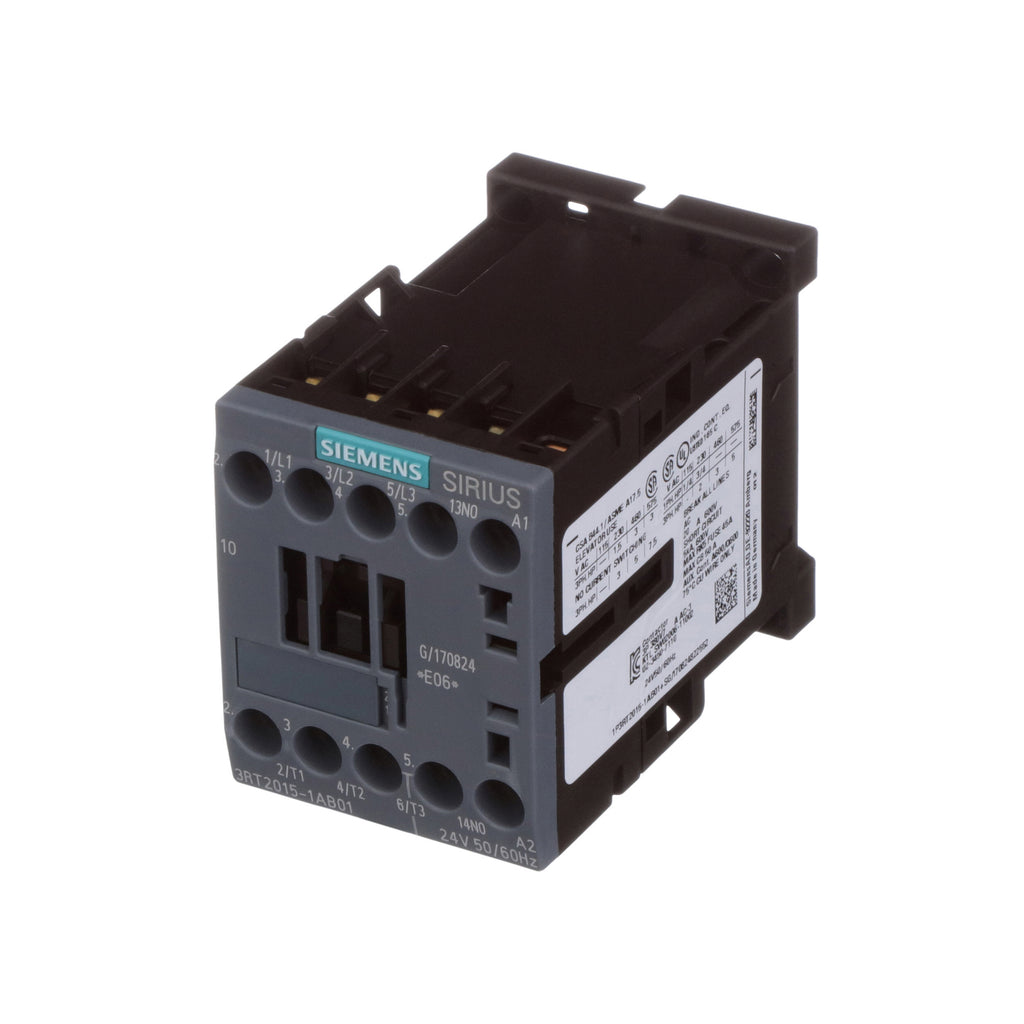

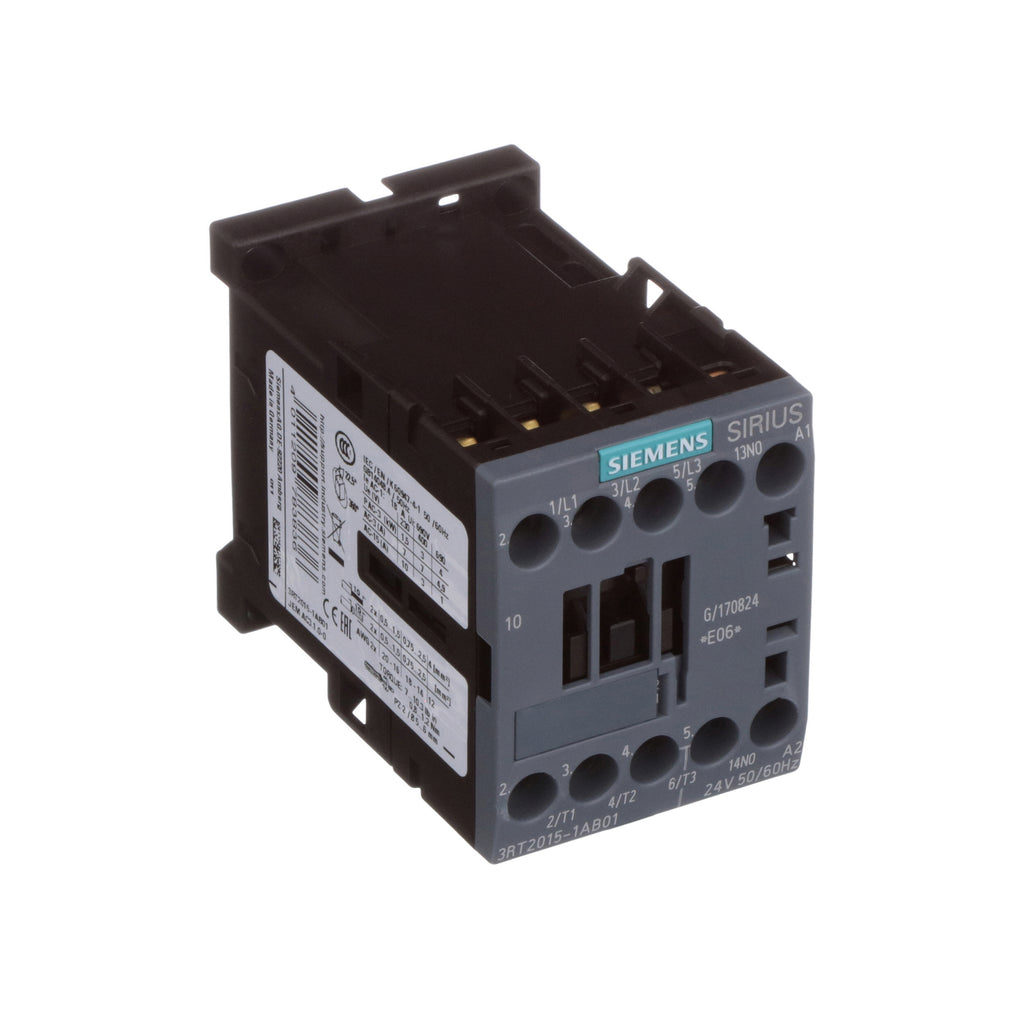

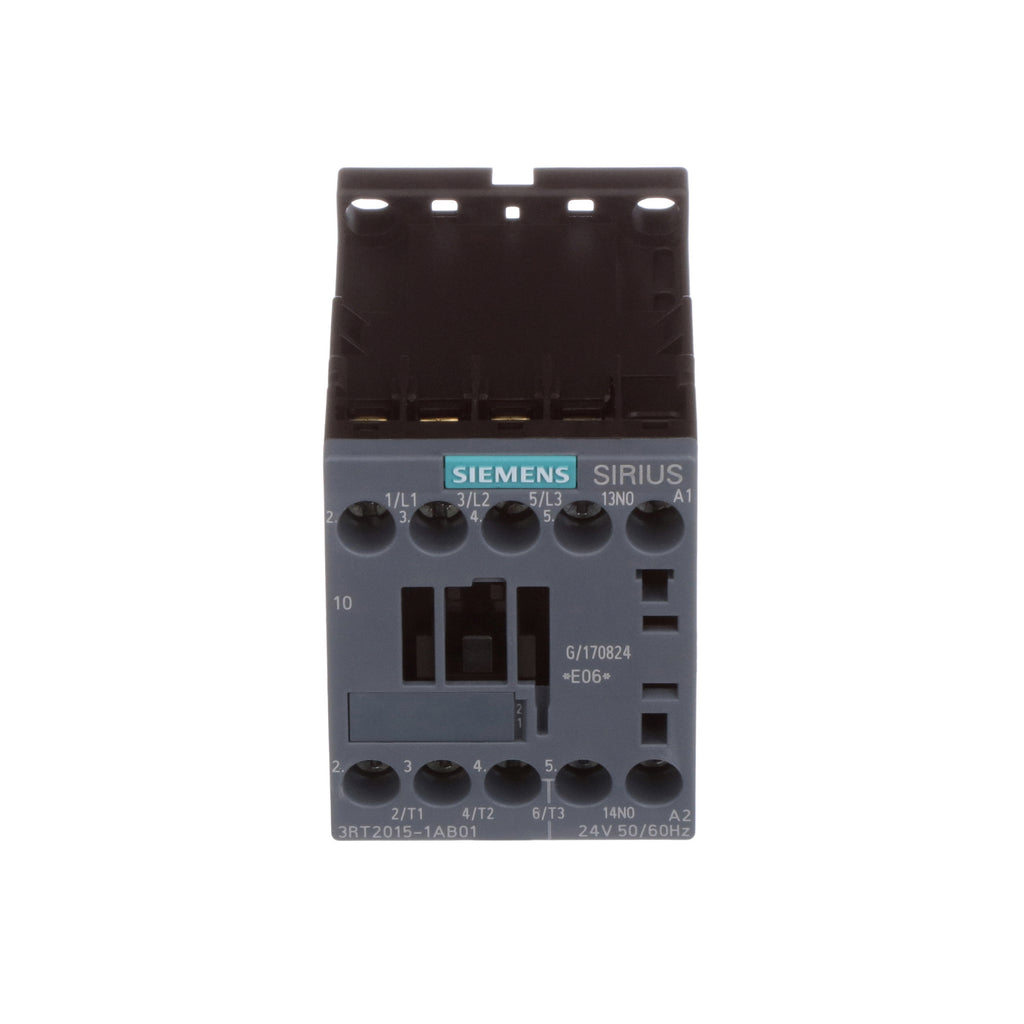

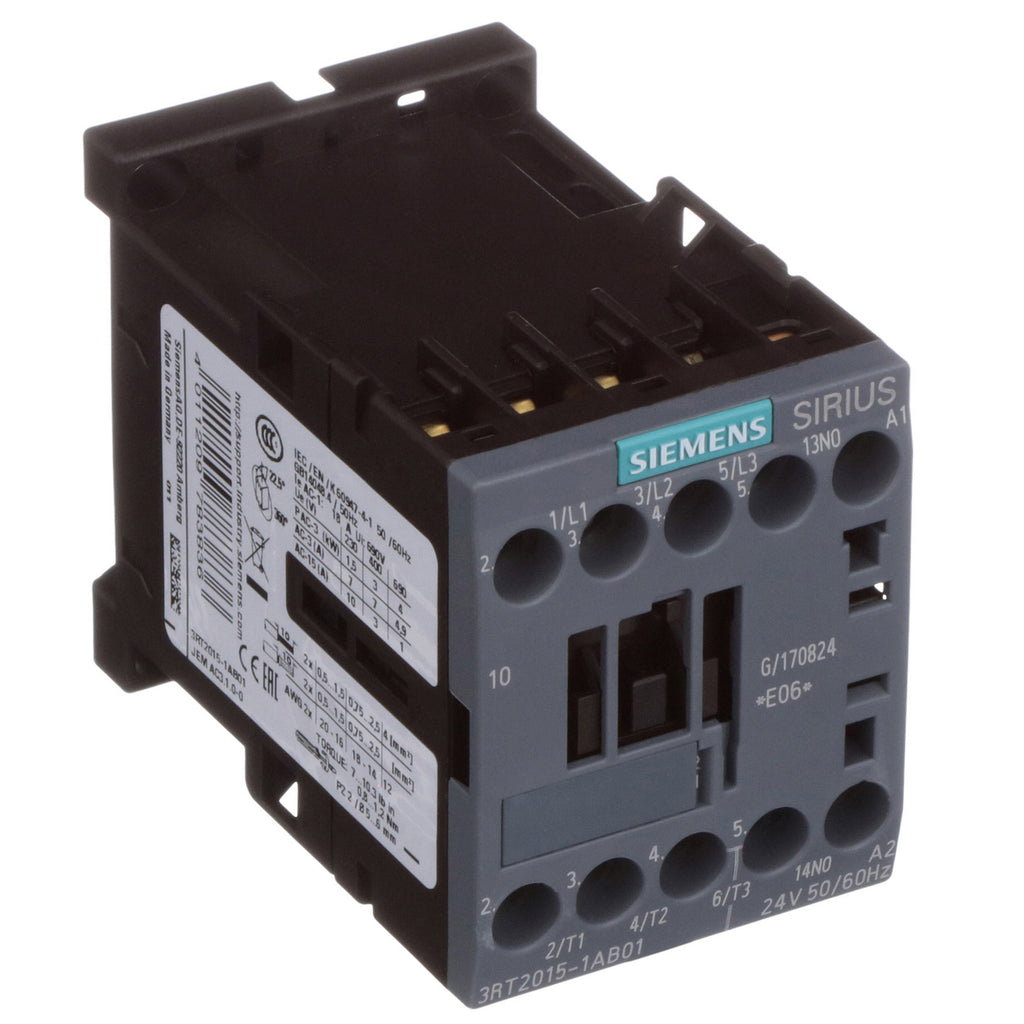

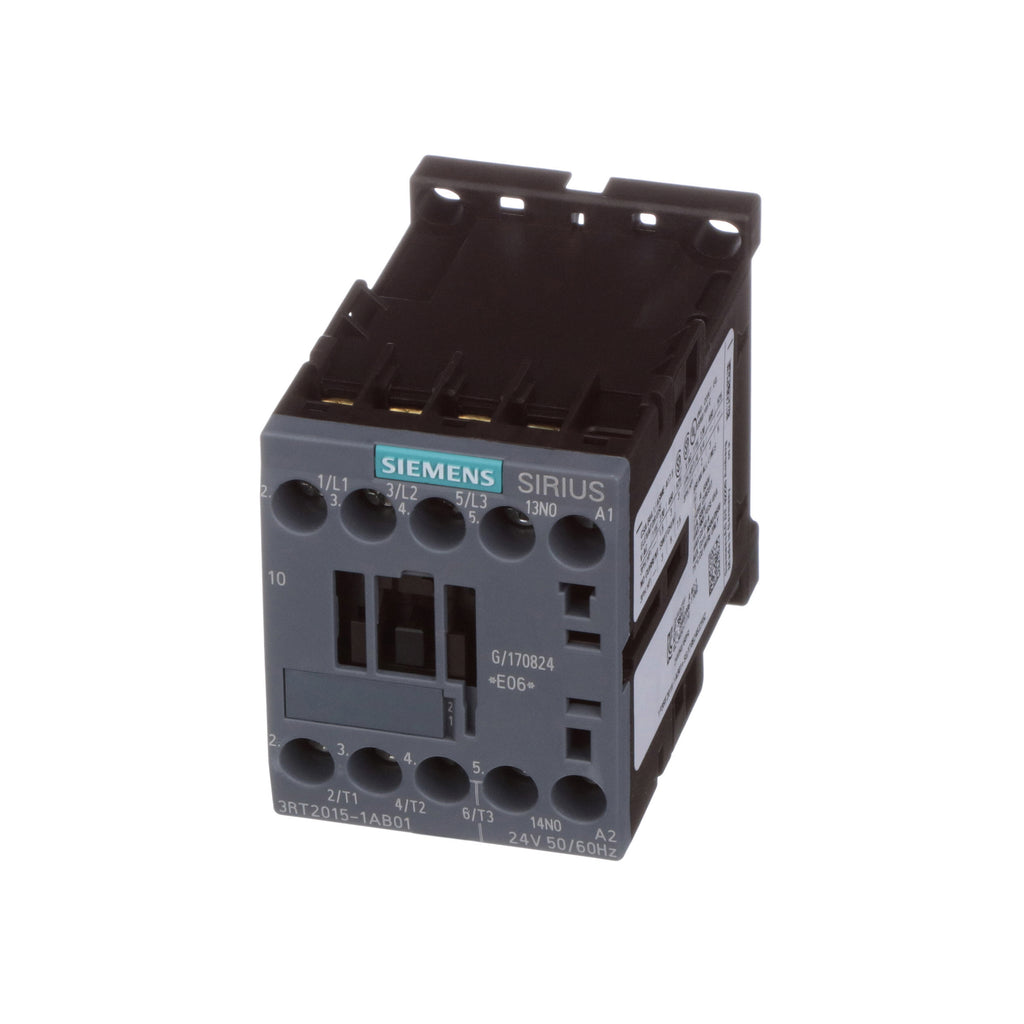

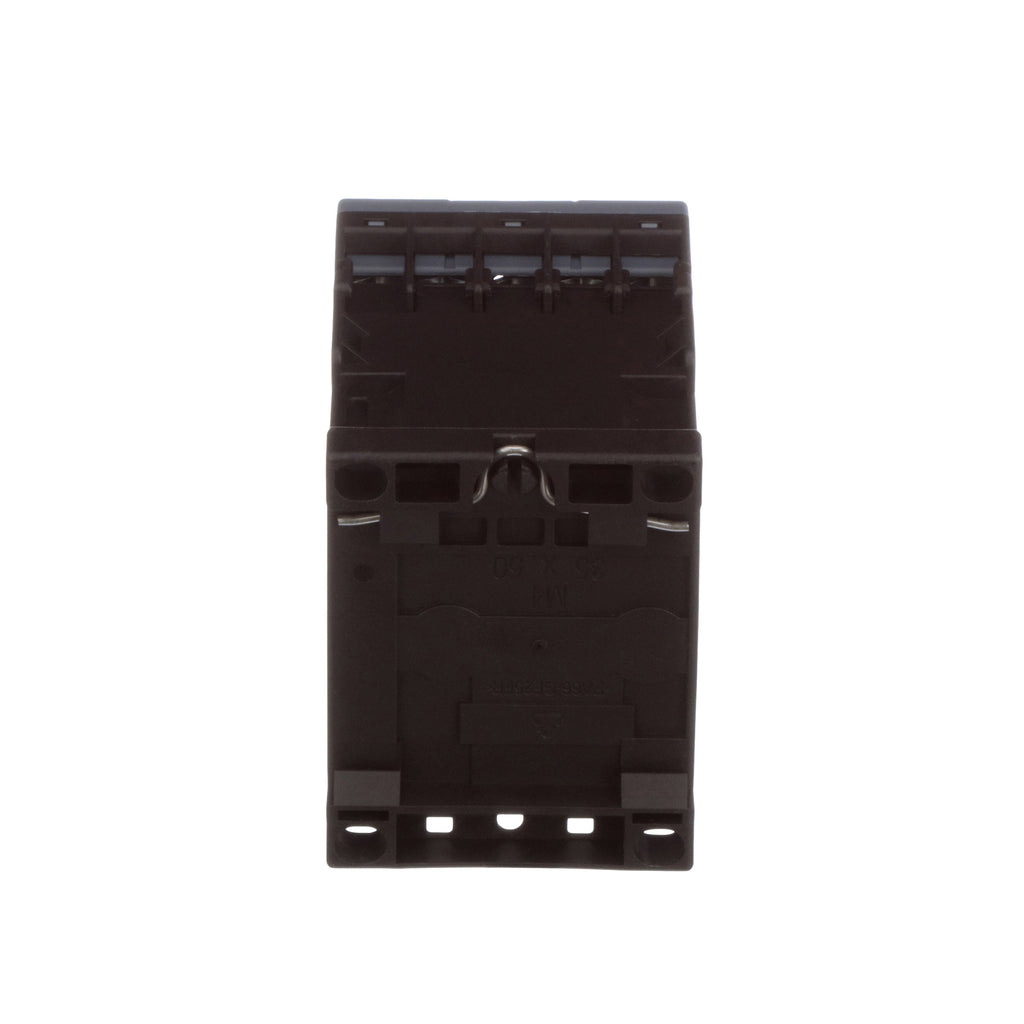

3RT20151AB01 - Siemens 7A 3-Pole 24V AC Power Contactor S00 Frame IEC Motor Control

3RT20151AB01

3RT20151AB01 is a Siemens 3-pole power contactor designed for motor control applications with a 7 ampere rating and 24V AC coil voltage.This Siemens Sirius 3RT20151AB01 contactor features a 3-pole configuration with 1 normally open (NO) auxiliary contact, suitable for switching motors up to 3 kW at 400V. It operates at 50/60 Hz with a coil power rating of 27/24.3 VA pickup and 4.2/3.3 VA holding. The device is sized S00 with screw terminals and supports DIN rail, snap-on, or threaded mounting. It conforms to IEC standards and is rated for AC-3 utilization category.

Key Specifications
• Amperage: 7 A
• Voltage: 24 V AC coil, 400 V operational
• Poles: 3
• Auxiliary Contacts: 1 NO
• Frame Size: S00
• Mounting Type: DIN rail, snap-on, threaded
• Contact Configuration: 3 NO main contacts
• Operating Frequency: 50/60 Hz
• Power Rating: 3 kW at 400 V
• Terminal Type: Screw
• Coil Power Rating: 27/24.3 VA pickup, 4.2/3.3 VA holding
• Standards: IEC compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3RT20151AB01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Contactors
• Type : 3RT Series



Product Data

• UPC : 662643908718
• GTIN : 00662643908718
• Country of Origin : Germany
• Dimensions : 2.421 x 1.969 x 3.051 inch
• Weight : 0.509 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
