Description
3RT2015-2KA42

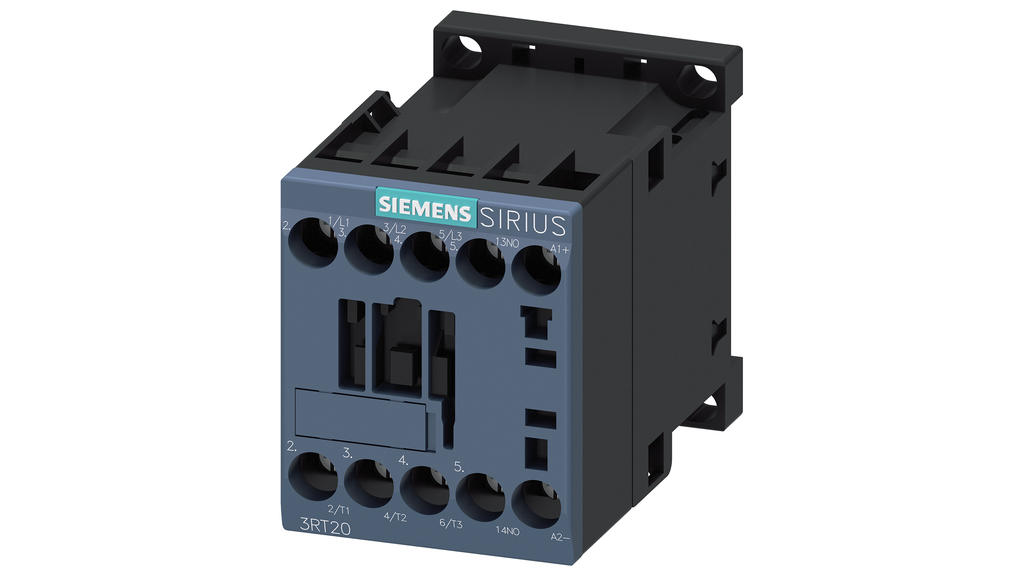

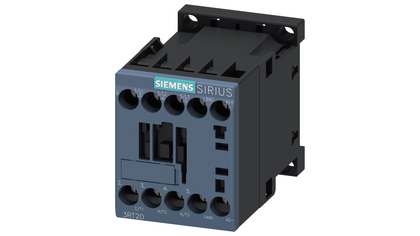

3RT2015-2KA42 is a Siemens SIRIUS power contactor designed for motor control applications with a 12V DC coil.
This 3-pole contactor features a 7 ampere rating and supports switching up to 3 kW at 400 V AC. It includes one normally closed (NC) auxiliary contact and an integrated suppressor diode. The device uses spring-loaded terminals for secure wiring and is built on the S00 frame size, suitable for compact installations.
- Key Specifications
- Manufacturer: Siemens
- Part Number: 3RT2015-2KA42
- Poles: 3
- Rated Current: 7 A
- Switching Capacity: 3 kW at 400 V AC
- Coil Voltage: 12 V DC
- Auxiliary Contacts: 1 NC
- Frame Size: S00
- Terminal Type: Spring-loaded
- Integrated Suppressor Diode
- Max Switching Voltage: 690 V AC
- Part Number: 3RT2015-2KA42
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT20
- Voltage : 600
- Amperage : 7
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 12
- Coil Voltage Minimum : 12
- UPC : 004089295717
- GTIN : 00040892957174
- Weight : 1
