Product Info
- Manufacturer:Siemens
Description
3RT19755AP31

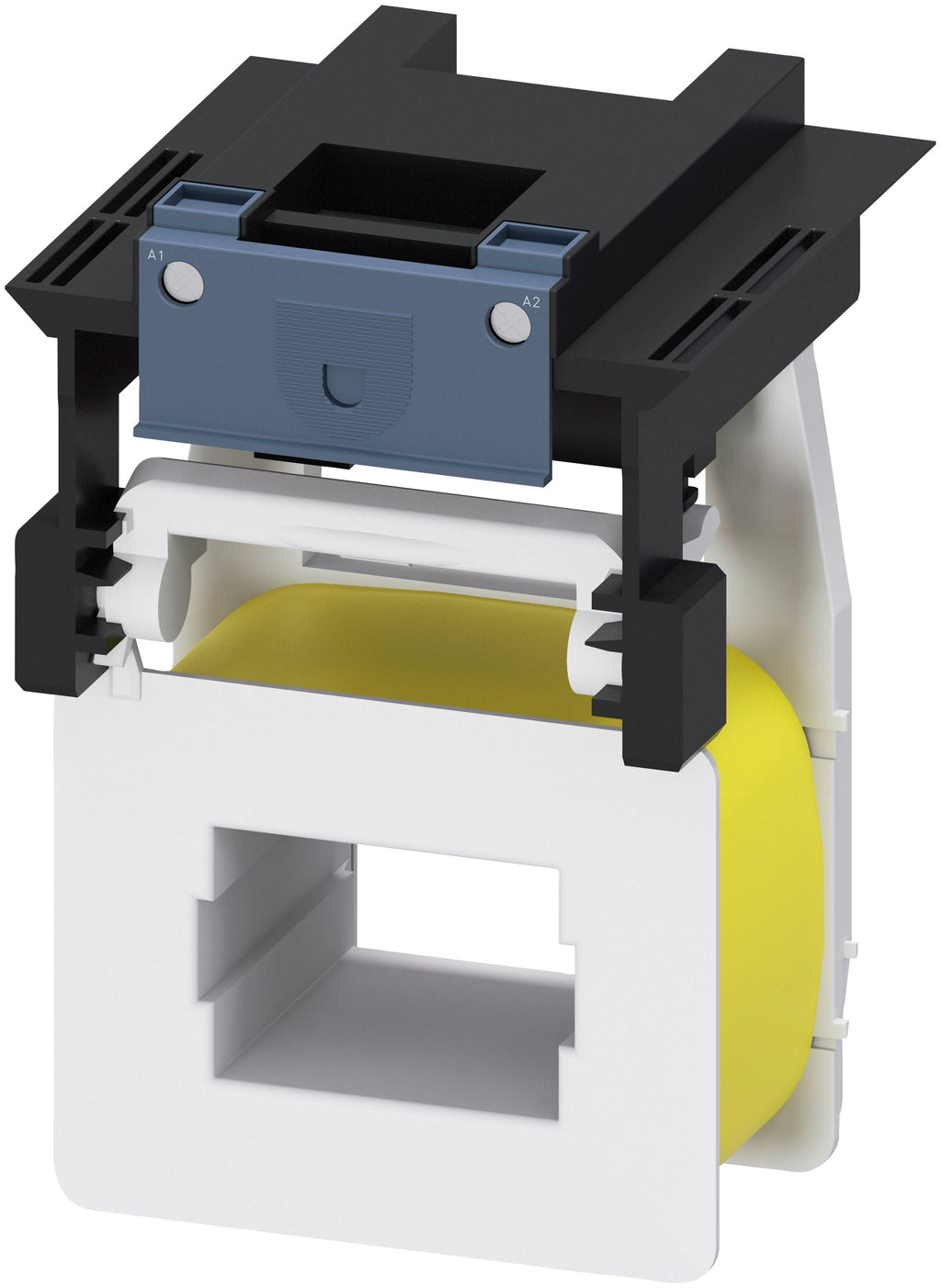

3RT19755AP31 is a Siemens withdrawable coil designed for S12 size contactors 3RT107, 3RT127, and 3RT147, operating on 220-240 V AC/DC control voltage.3RT19755AP31 features a standard economy circuit operating mechanism with screw terminal connections, suitable for AC (50/60 Hz) and DC operation. It provides reliable magnet coil performance with an apparent pick-up power of 830 VA at 50/60 Hz and holding power of 9.2 VA. This coil is part of the Siemens SIRIUS modular system, known for efficiency and up-to-date technology.
- Key Specifications
- Control supply voltage: 220-240 V AC/DC
- Frequency: 50/60 Hz
- Operating mechanism: Standard economy circuit
- Mounting type: Withdrawable coil for S12 contactors
- Compatible contactors: 3RT107, 3RT127, 3RT147
- Connection type: Screw terminal
- Apparent pick-up power: 830 VA
- Apparent holding power: 9.2 VA
- Inductive power factor: 0.9
- Weight: 1.225 kg
- Series: Siemens SIRIUS
- Certifications: General product approval, EMV compliant
Specifications
- Part Number: 3RT19755AP31
- Brand : Siemens
Product Data
- UPC : 75455477443
- GTIN : 00754554774435
- Weight : 2.65 lb
