3RT10756AF36

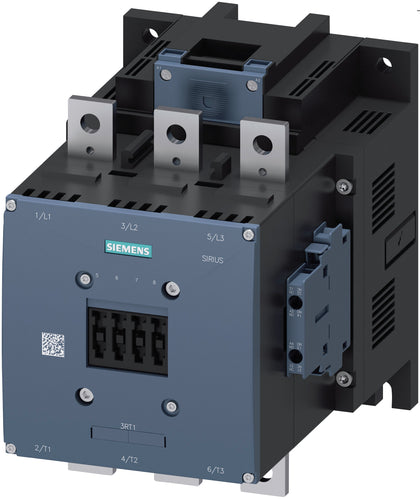

3RT10756AF36 is a Siemens 3-pole power contactor designed for heavy-duty switching applications with a 400A rated operational current.This contactor features a conventional main circuit with a coil voltage rating of 110-127 V DC/AC and auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC). It supports AC-3 utilization category at 400 V and 50-60 Hz frequency, suitable for motor control up to 200 kW at 400 V. The device is size S12 and designed for screw fixing mounting, allowing series installation with bar connections.
- Key Specifications
- Rated operational current: 400 A at AC-3, 400 V
- Number of poles: 3
- Coil voltage: 110-127 V DC/AC
- Auxiliary contacts: 2 NO + 2 NC
- Power rating: 200 kW at 400 V AC (50-60 Hz)
- Mounting type: Screw fixing, series installation
- Size/frame: S12
- Main circuit type: Conventional
- Part Number: 3RT10756AF36
- Brand : Siemens
- UPC : 754554772660
- GTIN : 00754554772660
- Country of Origin : Germany
- Dimensions : 9.173 x 11.378 x 10.709 inch
- Weight : 22.796
