Product Info
- Manufacturer:Siemens
Description
3RT10656AF36

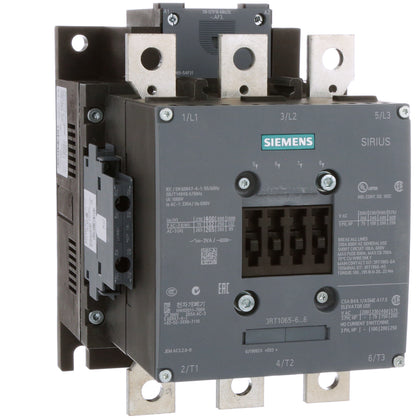

3RT10656AF36 is a Siemens 3-pole power contactor designed for motor control applications with a 265A rated current and 110-127V AC/DC coil voltage.This Siemens Sirius contactor features a size S10 frame, supports up to 132 kW at 400V AC-3 utilization category, and includes 2 NO + 2 NC auxiliary contacts permanently mounted.
- Rated operational current: 265 A
- Poles: 3
- Coil voltage: 110-127 V AC/DC (50-60 Hz)
- Power rating: 132 kW at 400 V AC-3
- Frame size: S10
- Auxiliary contacts: 2 NO + 2 NC
- Interrupt rating: Thermal short-time current limited to 2400 A for 10 s
- Conforms to IEC 60947-4-1
- Mounting type: Conventional bar connections
- Operating frequency: Up to 2000 operations/hour AC and DC
- Shock resistance: 8.5g / 5 ms at AC and DC
Specifications
- Part Number: 3RT10656AF36
- Manufacturer : Siemens
- Brand : Siemens
Product Data
- UPC : 754554771021
- GTIN : 4011209507913
- Country of Origin : Germany
- Dimensions : 7.717 x 10.433 x 9.213 inch
- Weight : 14.471 lb
