Product Info
- Manufacturer:Siemens
Description

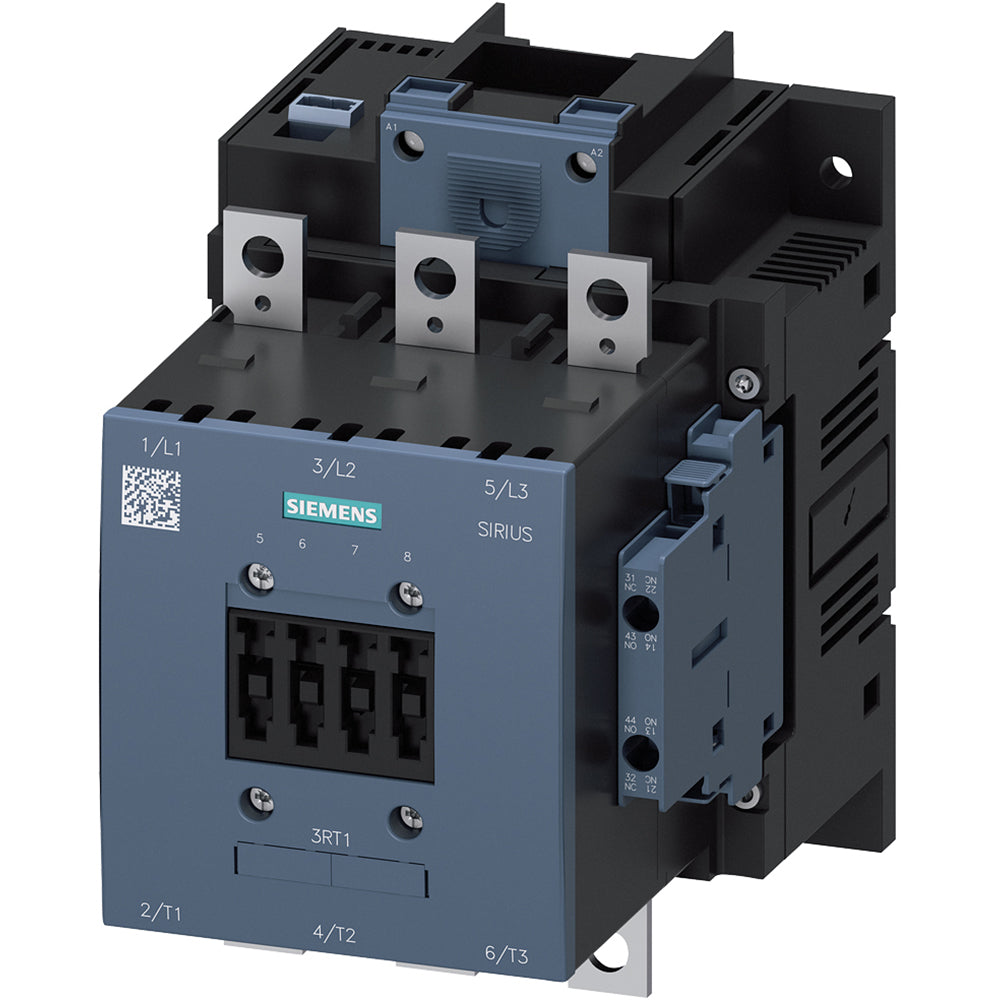

3RT10566NF36
3RT10566NF36 is a Siemens S6 frame power contactor designed for reliable switching in industrial applications. This 3-pole contactor features a rated operational current of 185 A at 400 V AC-3 and is suitable for use with control voltages from 96 to 127 V AC/DC. It includes 2 NO and 2 NC auxiliary contacts for flexible control circuit integration. The contactor is built for robust performance with bar connections for the main circuit, making it ideal for high-current applications. It is rated for switching voltages up to 1000 VAC and operates efficiently within a wide temperature range. The device is designed for rail mounting and is suitable for use in demanding environments.
- Manufacturer: Siemens
- Part Number: 3RT10566NF36
- Frame Size: S6
- Rated Operational Current: 185 A at 400 V AC-3
- Control Voltage: 96-127 V AC/DC
- Poles: 3
- Main Circuit Connection: Bar
- Mounting Type: Rail
- Switching Voltage: Up to 1000 VAC
- Auxiliary Contacts: 2 NO + 2 NC
- Operating Temperature: -25°C to +55°C
- Rated Power at AC-3: 90 kW at 400 V
Specifications
- Part Number: 3RT10566NF36
- Brand : Siemens
Product Data
- UPC : 754554773681
- GTIN : 00754554773681
- Country of Origin : Germany
- Dimensions : 5.079 x 7.48 x 7.126 inch
- Weight : 7.352
