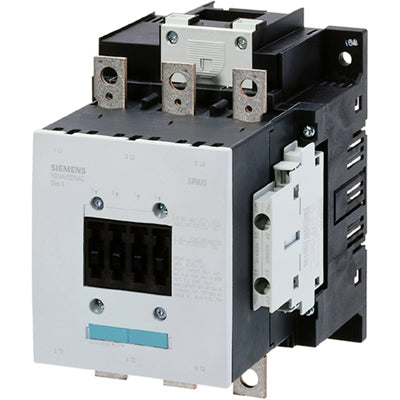

3RT10566AF36 - Siemens 185A 3-Pole Power Contactor 90kW 400V AC-3, 110-127V AC/DC Coil, Size S6

3RT10566AF36

3RT10566AF36 is a Siemens 3-pole power contactor designed for industrial motor control applications with a rated current of 185A and power rating of 90 kW at 400 V AC-3.This contactor features a conventional main circuit with 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts, suitable for AC and DC coil operation at 110-127 V. It belongs to the Size S6 frame and supports high power motors up to 160 kW at 690 V. The device offers robust performance with a mechanical endurance of up to 10 million operating cycles and an insulation voltage rating of 1000 V. It is designed for use in environments with a pollution degree of 3 and an ambient temperature range from -25 to +60 °C.

Key Specifications
• Rated current: 185 A at AC-3, 400 V
• Power rating: 90 kW at 400 V AC-3
• Poles: 3-pole main contacts
• Auxiliary contacts: 2 NO + 2 NC
• Coil voltage: 110-127 V AC/DC
• Size/frame: S6
• Insulation voltage: 1000 V
• Mechanical endurance: 10,000,000 cycles
• Degree of pollution: 3
• Ambient temperature: -25 to +60 °C
• Mounting type: chassis mount, DIN rail compatible
• Contact rating: A600/Q600 for auxiliary contacts

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT10566AF36
• Manufacturer : Siemens
• Brand : Siemens

Product Data

• UPC : 754554766300
• GTIN : 754554766300
• Country of Origin : Germany
• Dimensions : 5.079 x 7.48 x 7.126 inch
• Weight : 7.408 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
