Description
3RT1056-6AF36

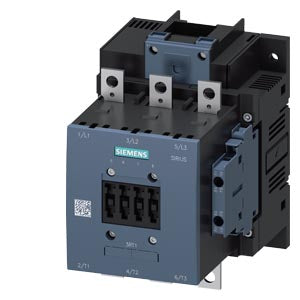

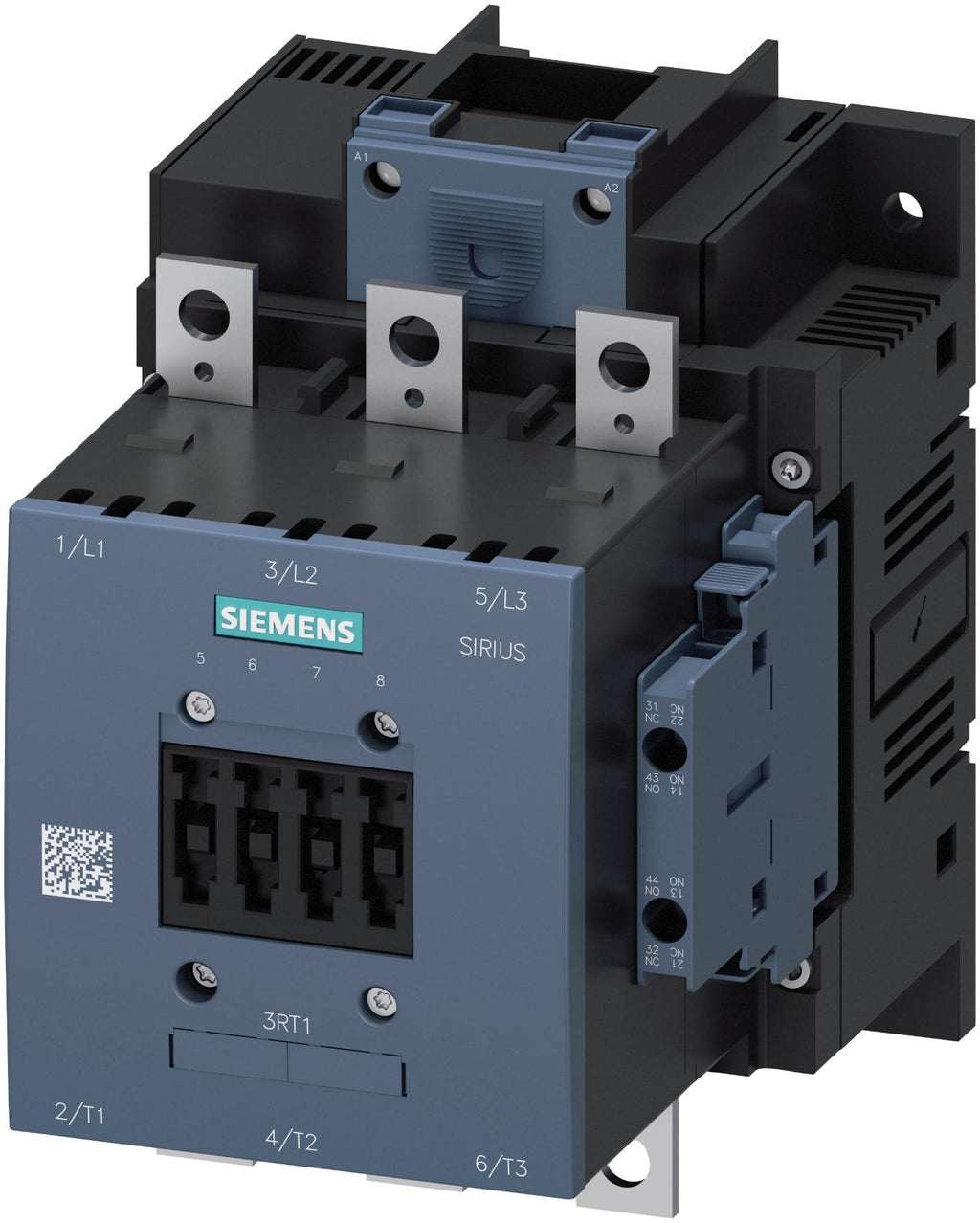

3RT1056-6AF36 is a Siemens Sirius S6 frame 3-pole IEC contactor designed for reliable motor control in industrial applications. This contactor features an AC/DC coil rated 110-127V, 185A AC-3 current rating, and 2 NO + 2 NC auxiliary contacts for flexible control signaling. It is suitable for 3-phase motor loads up to 90 kW at 400V AC and offers busbar and screw terminal connections for easy installation. Engineered for durability and safety, the 3RT1056-6AF36 meets IEC 60947-4-1 standards and is ideal for use with electronic overload relays. The contactor is designed for panel mounting and supports direct connection of auxiliary contacts for expanded control options.
- Part Number: 3RT1056-6AF36
- Manufacturer: Siemens
- Series/Frame: Sirius S6
- Poles: 3
- Amperage: 185A AC-3, 215A AC-1
- Voltage: 110-127V AC/DC coil, 600V max main circuit
- Mounting Type: Panel mount, busbar and screw terminals
- Interrupt Rating: 8 kV surge voltage resistance (main circuit)
- Auxiliary Contacts: 2 NO + 2 NC
- Standards: IEC 60947-4-1, IP00/IP20 (with cover)
- Motor Rating: 75 HP @ 230V, 150 HP @ 460V
- Wattage: 90 kW @ 400V AC
Specifications
- Part Number: 3RT1056-6AF36
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 185
- Phase : 3
- Poles : 3
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
- Coil Voltage Maximum : 127
- Coil Voltage Minimum : 110
Product Data
- UPC : 075455476630
- GTIN : 00754554766300
- Weight : 8
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
