3RT10546AF36 - Siemens 115A 3-Pole Contactor 110-127V AC/DC Coil 55kW AC-3 Frame S6

3RT10546AF36

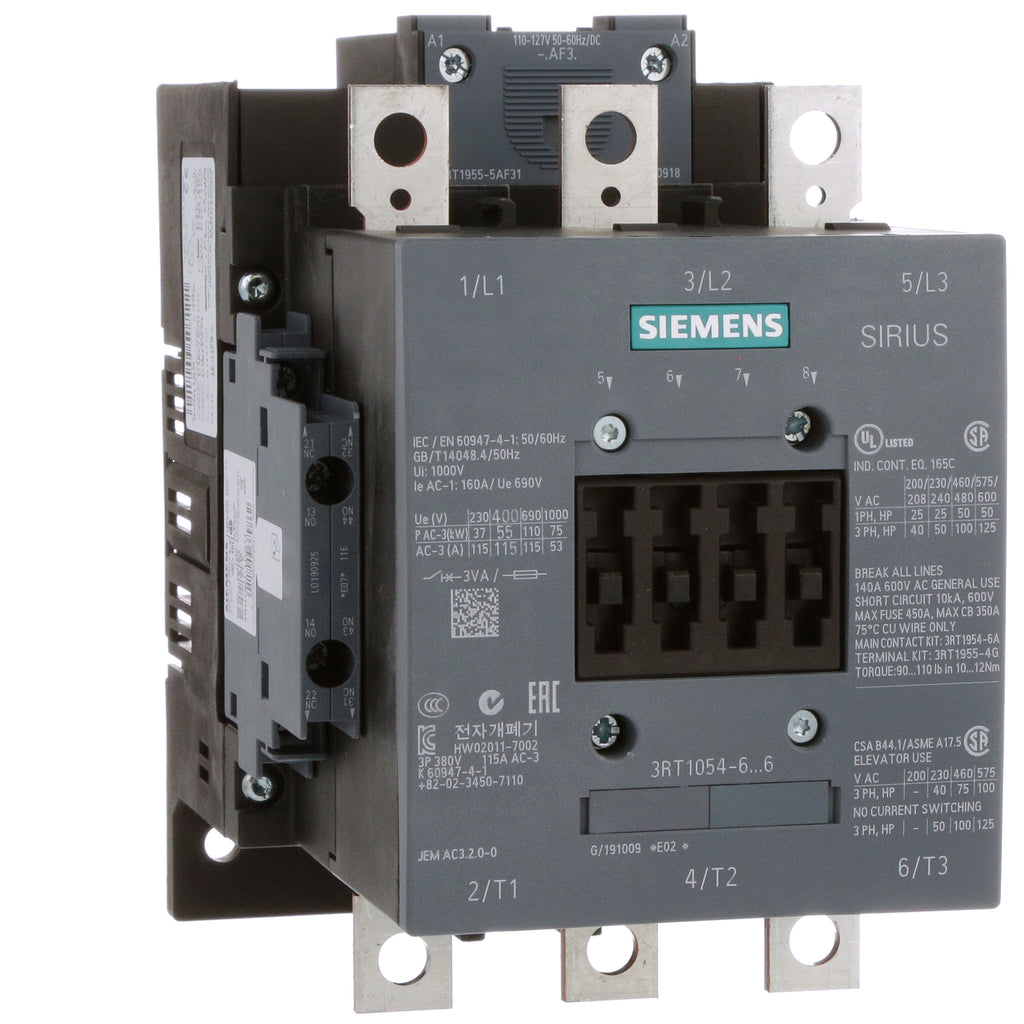

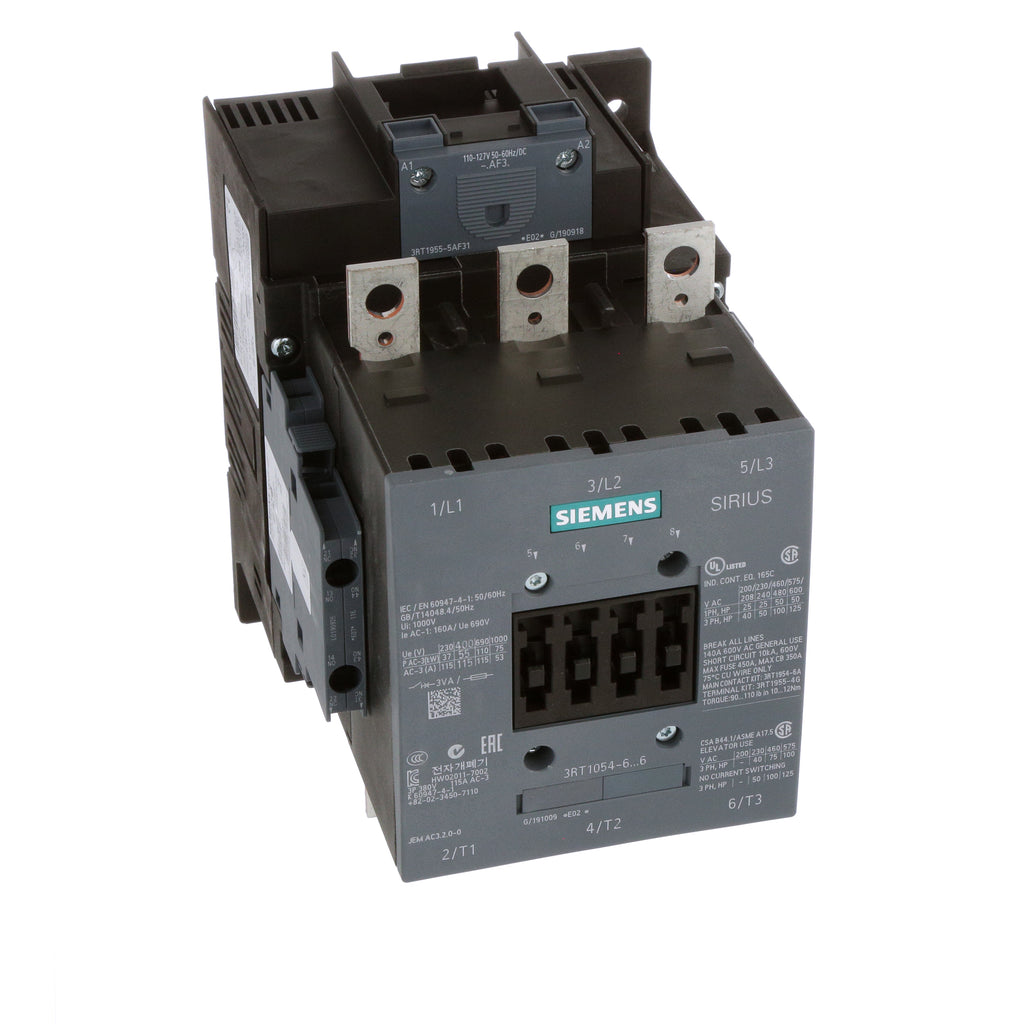

3RT10546AF36 is a Siemens 3-pole contactor designed for industrial motor control applications with a 115 ampere rating and 110-127 volt AC/DC coil voltage.This Siemens Sirius contactor supports up to 55 kW power at AC-3 utilization category and 400 V, with a frame size S6. It features screw terminal connections, a rated operation current of 115 A at AC-3, and 160 A at AC-1. The contactor includes auxiliary contacts both normally open and normally closed for signaling, and is suitable for mounting on DIN rails or chassis. It is RoHS compliant and designed for reliable switching in motor control circuits.

Key Specifications
• Rated current: 115 A (AC-3), 160 A (AC-1)
• Rated power: 55 kW at 400 V AC-3
• Coil voltage: 110-127 V AC/DC
• Poles: 3
• Mounting type: DIN rail / chassis mount
• Auxiliary contacts: 2 normally open, 2 normally closed
• Connection type: Screw terminals
• Frame size: S6
• Rated operation current AC-4: 97 A at 400 V
• Short-circuit protection: C characteristic 10 A miniature circuit breaker for auxiliary circuit
• RoHS compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RT10546AF36
• Manufacturer : Siemens
• Brand : Siemens

Product Data

• UPC : 754554771014
• GTIN : 4011209507111
• Country of Origin : Germany
• Dimensions : 5.079 x 7.48 x 7.126 inch
• Weight : 7.28 lb
• Certification : REACH Art 33, WEEE (2012/19/EU)
