Description
3RT1035-3AG14

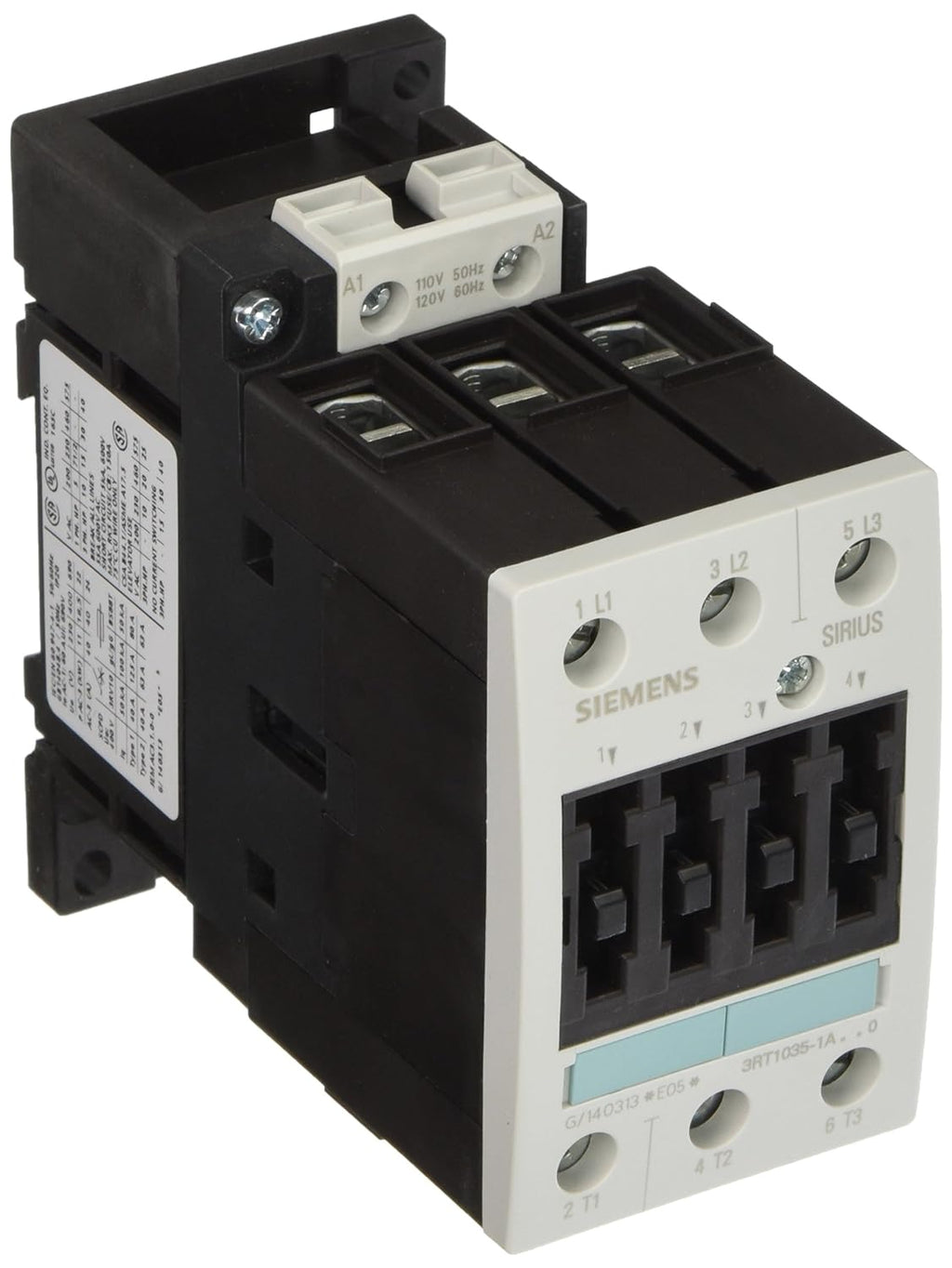

3RT1035-3AG14 is a Siemens Sirius power contactor designed for reliable motor control applications. This 3-pole contactor features AC-3 rated performance at 40 amperes and 18.5 kilowatts at 400 volts, with support for 600 volt operation. The unit comes equipped with a 110 volt AC coil and is sized S2 for compact installation on standard 35mm DIN rail. It includes 2 normally open and 2 normally closed auxiliary contacts for flexible signaling and control logic integration. The main circuit utilizes screw terminals for secure connections, while the auxiliary circuit employs spring-type terminals for quick assembly.
- Amperage Rating: 40 A AC-3 at 400 V
- Voltage: 600 V rated
- Poles: 3-pole configuration
- Coil Voltage: 110 V AC, 60 Hz
- Frame Size: S2
- Auxiliary Contacts: 2 NO + 2 NC
- Main Circuit Terminals: Screw terminal
- Auxiliary Circuit Terminals: Spring-type
- Power Rating: 18.5 kW at 400 V
- Mounting: 35mm DIN rail compatible
- Thermal Short-Time Current: 400 A (10 seconds)
Specifications
- Part Number: 3RT1035-3AG14
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 40
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 110
- Coil Voltage Minimum : 110
Product Data
- Weight : 3
