Description

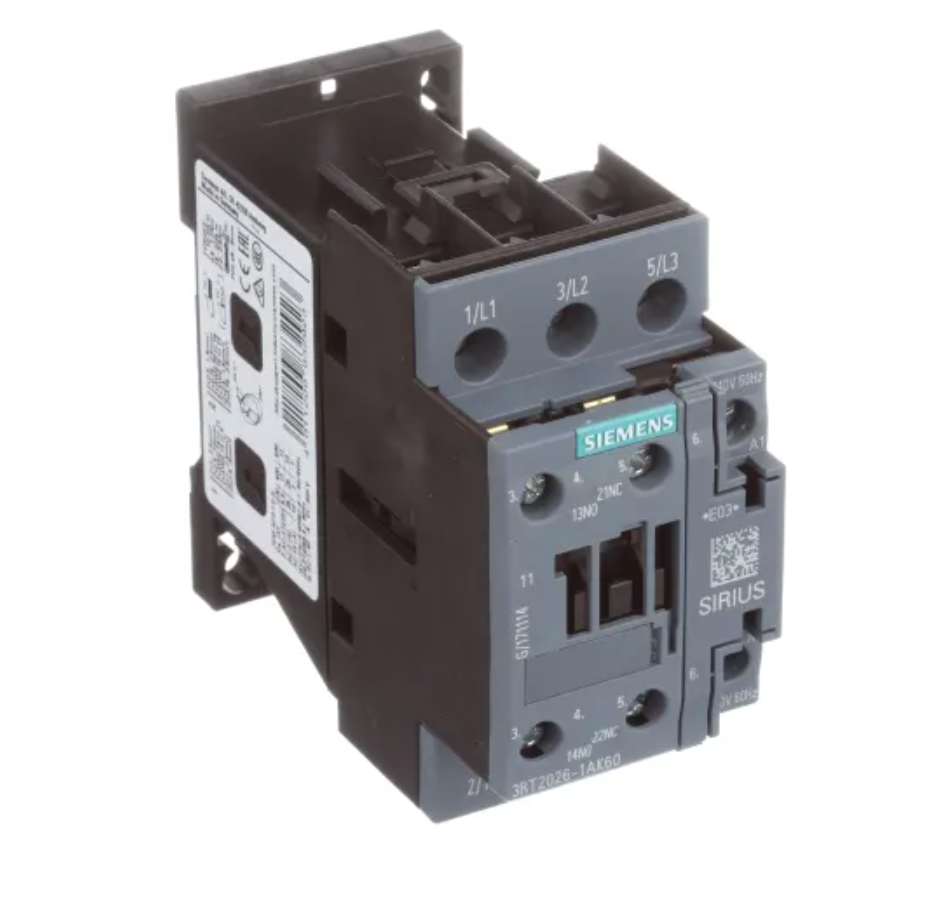

3RT1026-1AK60
3RT1026-1AK60 is a Siemens Sirius 3-pole motor contactor designed for reliable control of electric motors in industrial applications.This IEC-rated contactor supports up to 25 amps and is suitable for 3-phase motors with ratings of 7.5 HP at 230V and 15 HP at 460V. It features a 120V AC coil (110V 50Hz / 120V 60Hz), screw terminal connections, and can be mounted on a standard 35mm DIN rail or panel. The size S0 frame allows for auxiliary contact blocks and overload relays to be added for enhanced motor protection. It meets UL and CSA certifications for safety and performance.
- Key Specifications
- Amperage: 25 Amps AC-3
- Voltage Rating: 600V max, 7.5 HP @ 230V, 15 HP @ 460V
- Poles: 3 Pole
- Coil Voltage: 110V 50Hz / 120V 60Hz AC
- Mounting Type: DIN Rail or Panel Mount
- Frame/Series: Sirius S0
- Interrupt Rating: IEC Rated
- Trip Unit: Not applicable (contactor only)
- Certifications: UL, CSA, IEC
- Terminal Type: Screw Terminals
- Part Number: 3RT1026-1AK60
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
- Family : Sirius
- Type : 3RT10
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Coil Voltage Maximum : 120
- UPC : 754554411026
- GTIN : 00754554411026
- Weight : 10
