Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RH29111NF11

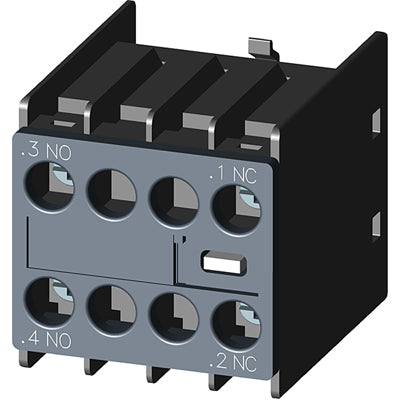

3RH29111NF11 is a Siemens SIRIUS auxiliary switch block designed for use with 3RH and 3RT contactors in motor control applications. This compact block features a 1NO+1NC contact configuration for reliable signal switching and monitoring. The 3RH29111NF11 is engineered for durability with a high mechanical cycle life and is suitable for a wide range of industrial environments. It offers snap-on mounting for easy installation and is compatible with S00 and S0 frame sizes.
- Manufacturer: Siemens
- Part Number: 3RH29111NF11
- Series: SIRIUS
- Frame Size: S00, S0
- Contact Configuration: 1NO+1NC
- Amperage Rating: 0.3 A
- Voltage Rating: 24/60 VDC
- Mounting Type: Snap-On
- Operating Temperature: -25 to 60 °C
- Storage Temperature: -55 to 80 °C
- Operating Cycles: 5,000,000 mechanical
- Dimensions: 37.5 mm H x 36 mm W x 43.7 mm D
Specifications
- Part Number: 3RH29111NF11
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Electrical contacts
- Voltage : 24/60 24/60 DC
Product Data
- UPC : 662643910193
- Country of Origin : Czechia
- Dimensions : 37.5 mm H x 36 mm W x 43.7 mm D
- Weight : 0.104
