Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RH29111HA11

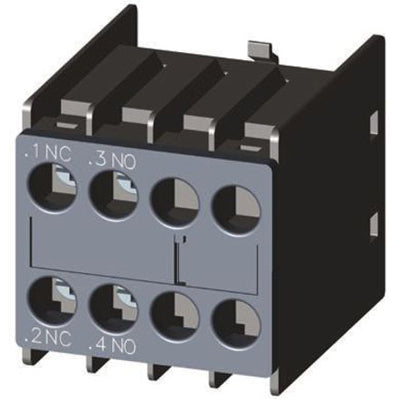

3RH29111HA11 is a Siemens auxiliary switch block designed for use with SIRIUS contactors and relays, providing reliable switching for control circuits. This auxiliary switch block features a 1 NO + 1 NC contact arrangement, screw terminal connections, and a snap-on mounting design for easy installation. It is suitable for use in a wide range of industrial control applications, offering durability and consistent performance.
- Manufacturer: Siemens
- Part Number: 3RH29111HA11
- Contact Arrangement: 1 NO + 1 NC
- Rated Current: 10A
- Mounting Type: Snap-On
- Electrical Connection: Screw Terminals
- Operating Temperature: -25°C to +60°C
- Duty Cycles: 10,000,000
- IP Rating: IP20
- Height: 38mm
- Width: 36mm
- Depth: 44mm
- Weight: 0.11 lbs
Specifications
- Part Number: 3RH29111HA11
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Electrical contacts
- Voltage : 24/230 /24/110/220 DC 690/600
Product Data
- UPC : 066264391006
- GTIN : 00662643910063
- Dimensions : 37.5 mm H x 36 mm W x 43.7 mm D
- Weight : 0.099 lb
