Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RH29111FA22

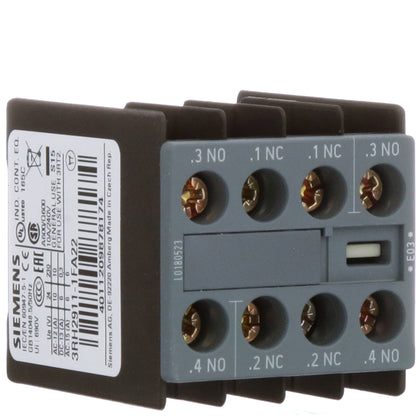

3RH29111FA22 is a Siemens auxiliary switch block designed for front mounting on SIRIUS contactors, featuring 2 normally open (NO) and 2 normally closed (NC) contacts.This auxiliary switch block provides reliable switching with a contact rating of up to 690 V AC/600 V DC, supporting 10 A at AC-12 and DC-12 utilization categories, suitable for various motor control applications.
- Contact configuration: 2 NO + 2 NC
- Mounting type: Front mount
- Rated operational voltage: 690 V AC / 600 V DC
- Rated operational current: 10 A (AC-12, DC-12), 6 A (AC-14/AC-15)
- Suitable for use with Siemens 3RT2 and 3RT contactors
- Screw terminal connection
- Impulse voltage resistance: 6 kV
- Brand: Siemens SIRIUS series
- Protection class: IP on the front
Specifications
- Part Number: 3RH29111FA22
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Electrical contacts
- Voltage : 24/230 /24/110/220 DC 690/600
Product Data
- UPC : 662643909920
- Country of Origin : United States
- Dimensions : 37.5 mm H x 36 mm W x 43.7 mm D
- Weight : 0.123 lb
