Product Info
- Manufacturer:Siemens
- Sub-Category:Contactor And Motor Starter Auxiliary
Description
3RH2911-1HA22

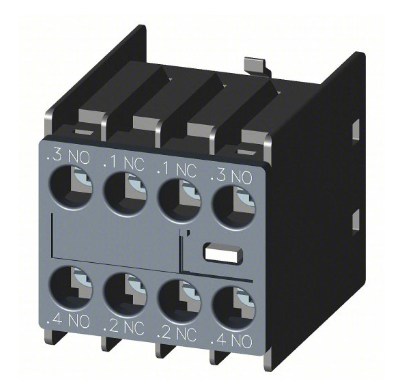

3RH2911-1HA22 is a Siemens 4-pole auxiliary switch block designed for front mounting on S00 and S1 series contactors, featuring 2 normally open (NO) and 2 normally closed (NC) contacts.This auxiliary switch block easily snaps onto the front of Siemens 3RT2 and 3RH2 series contactors, providing reliable switching with a centrally positioned release lever for quick disassembly. It conforms to IEC 60947-5-1 standards and is suitable for enhancing contactor relay functionality by extending contact configurations. The switch block supports screw terminal connections and is compatible with SIRIUS series contactors.
- Manufacturer: Siemens
- Part Number: 3RH2911-1HA22
- Type: Auxiliary Switch Block
- Poles: 4
- Contacts: 2 NO + 2 NC
- Mounting: Front Snap-On for S00 and S1 Contactors
- Standards: IEC 60947-5-1 Compliant
- Series: SIRIUS
- Terminal Type: Screw Terminals
- Compatible With: Siemens 3RT2 & 3RH2 Contactors
- Mechanical Service Life: Up to 10,000,000 switching cycles
- Operating Current: 6A at 24V AC-15
Specifications
- Part Number: 3RH2911-1HA22
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
Product Data
- UPC : 785901255628
- GTIN : 00785901255628
- Country of Origin : Germany
- Weight : 0.05
- Temp Rating : -13-158 ¡F (-25-70 ¡C)
