Description

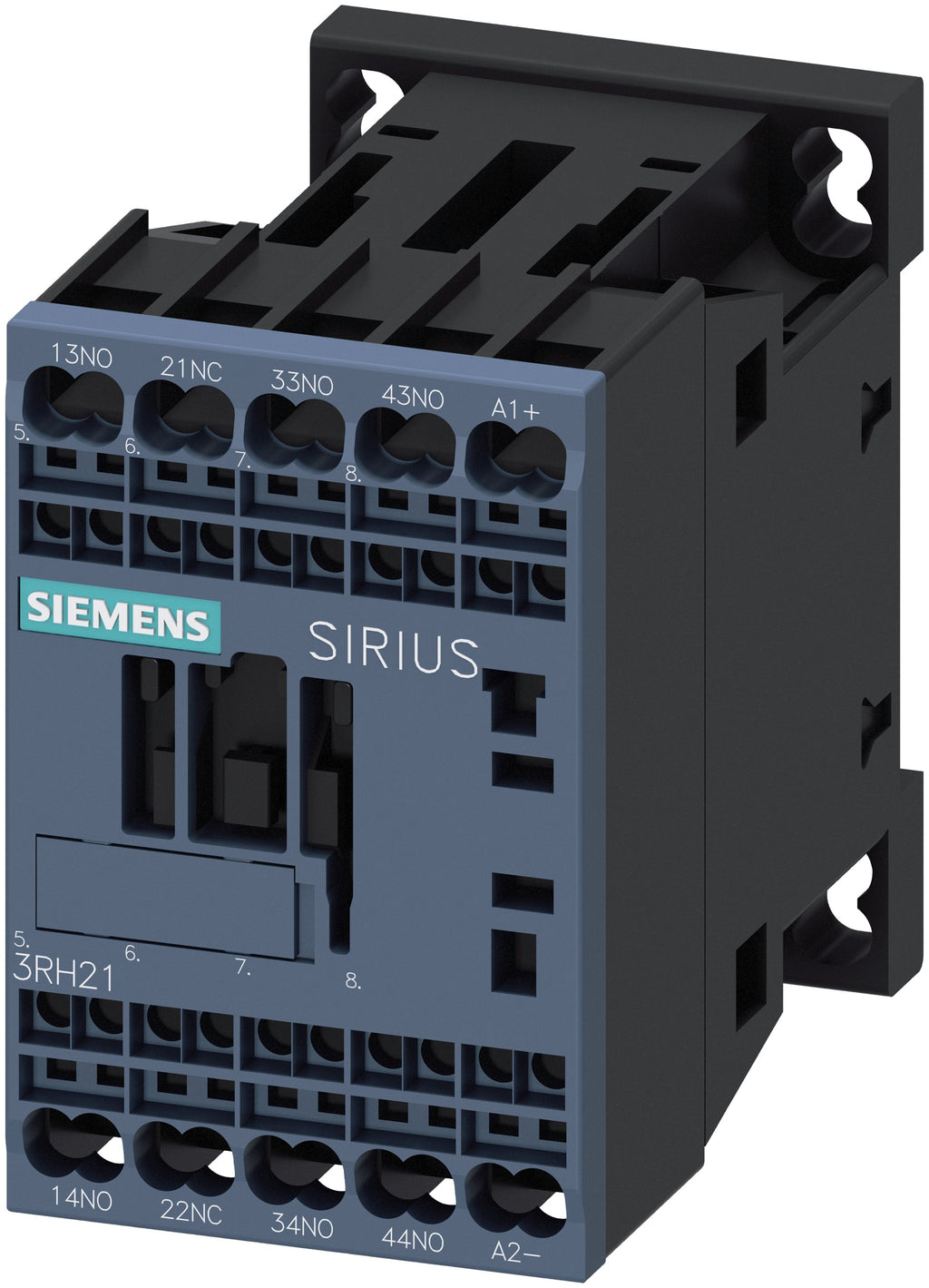

3RH2131-2BB40
3RH2131-2BB40 is a Siemens auxiliary contactor relay with 3 normally open and 1 normally closed contacts, designed for motor control applications.3RH2131-2BB40 features a 24V DC coil voltage, DIN rail mounting, and screw terminal connections. It is part of the Siemens SIRIUS series, suitable for various operating positions and provides reliable switching with a contact current rating of 10A. The enclosure rating is IP20, and it supports standard 35mm rail mounting.
- Key Specifications
- Contact Configuration: 3 NO + 1 NC
- Coil Voltage: 24V DC
- Mounting Type: DIN rail (35mm standard rail)
- Contact Current Rating: 10 Amps (AC-12/AC-15/DC-12/DC-13)
- Terminal Type: Screw terminals
- Contactor Size: S00
- Operating Position: Any
- Enclosure Rating: IP20
- Series: Siemens SIRIUS
Specifications
- Part Number: 3RH2131-2BB40
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor
Product Data
- UPC : 662643906523
- GTIN : 4011209828100
- Weight : 1 lb
