Product Info
- Manufacturer:Siemens
Description
3RH19211EA11

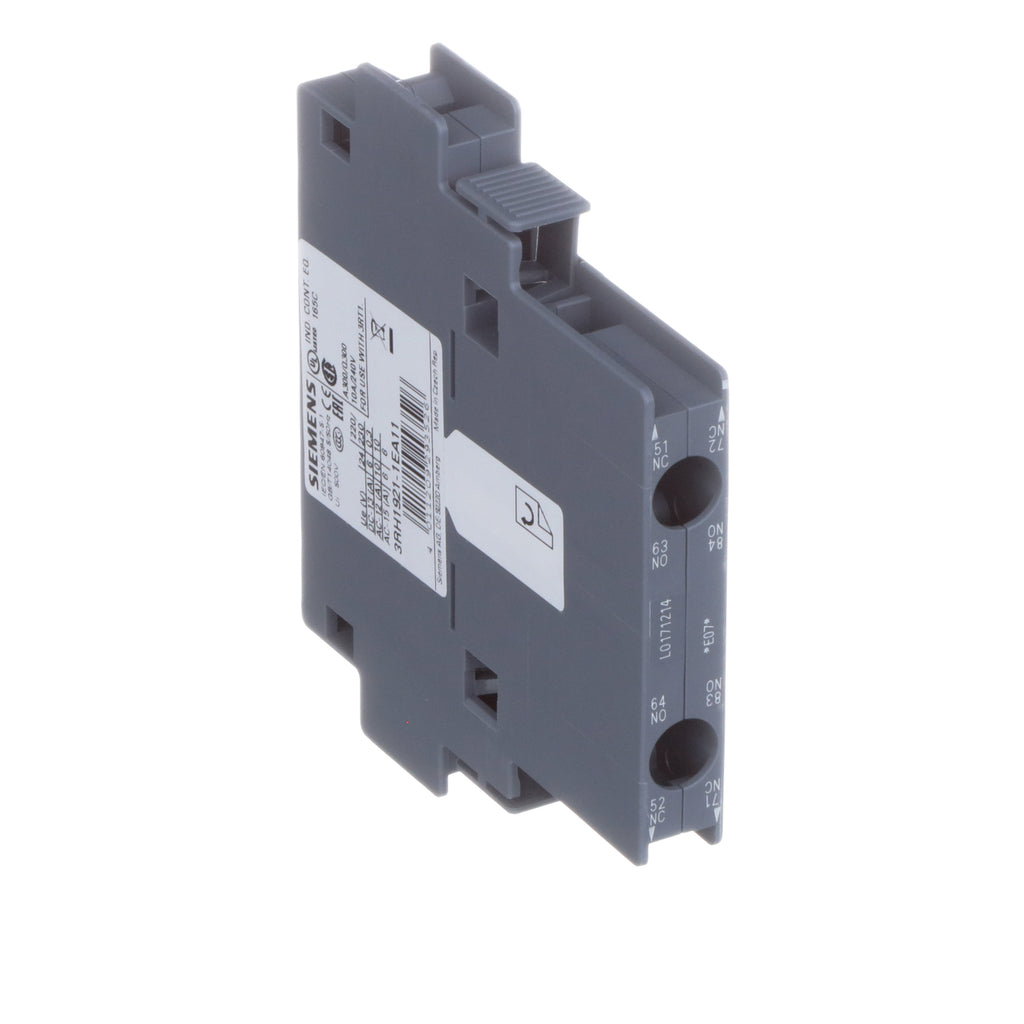

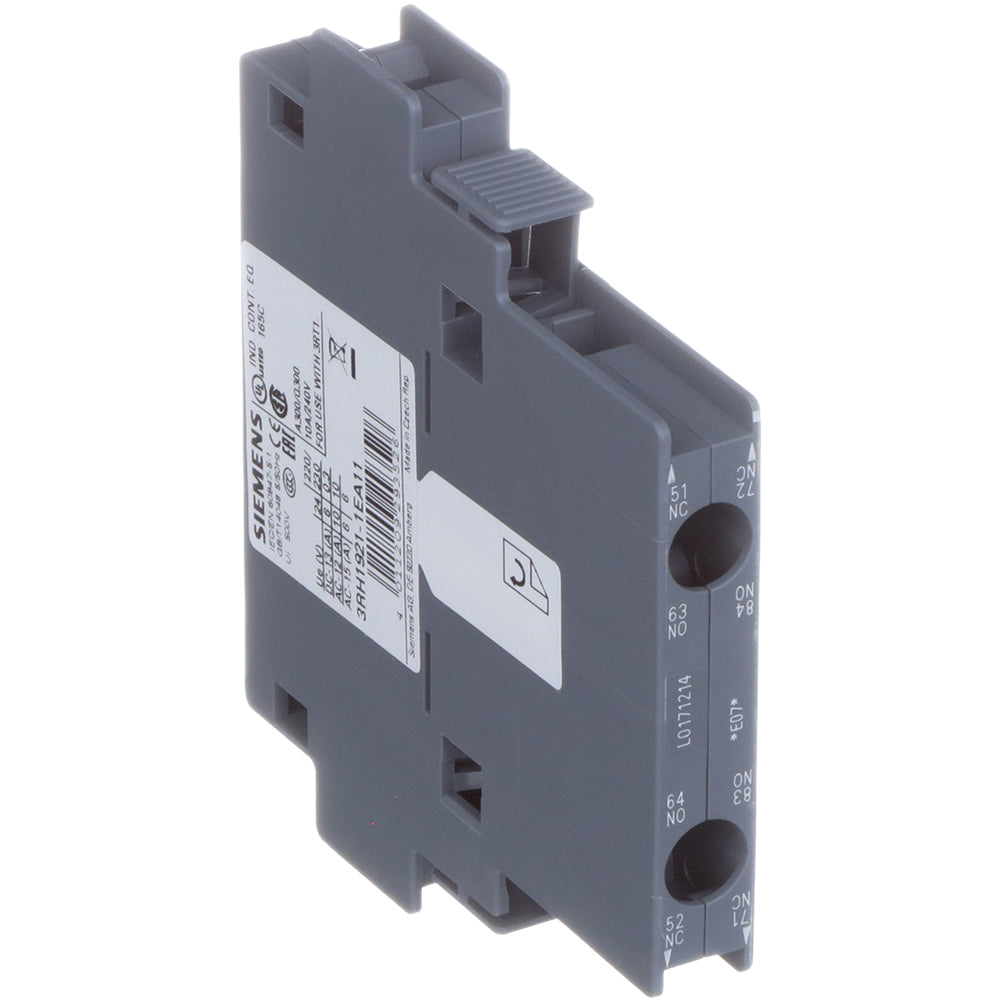

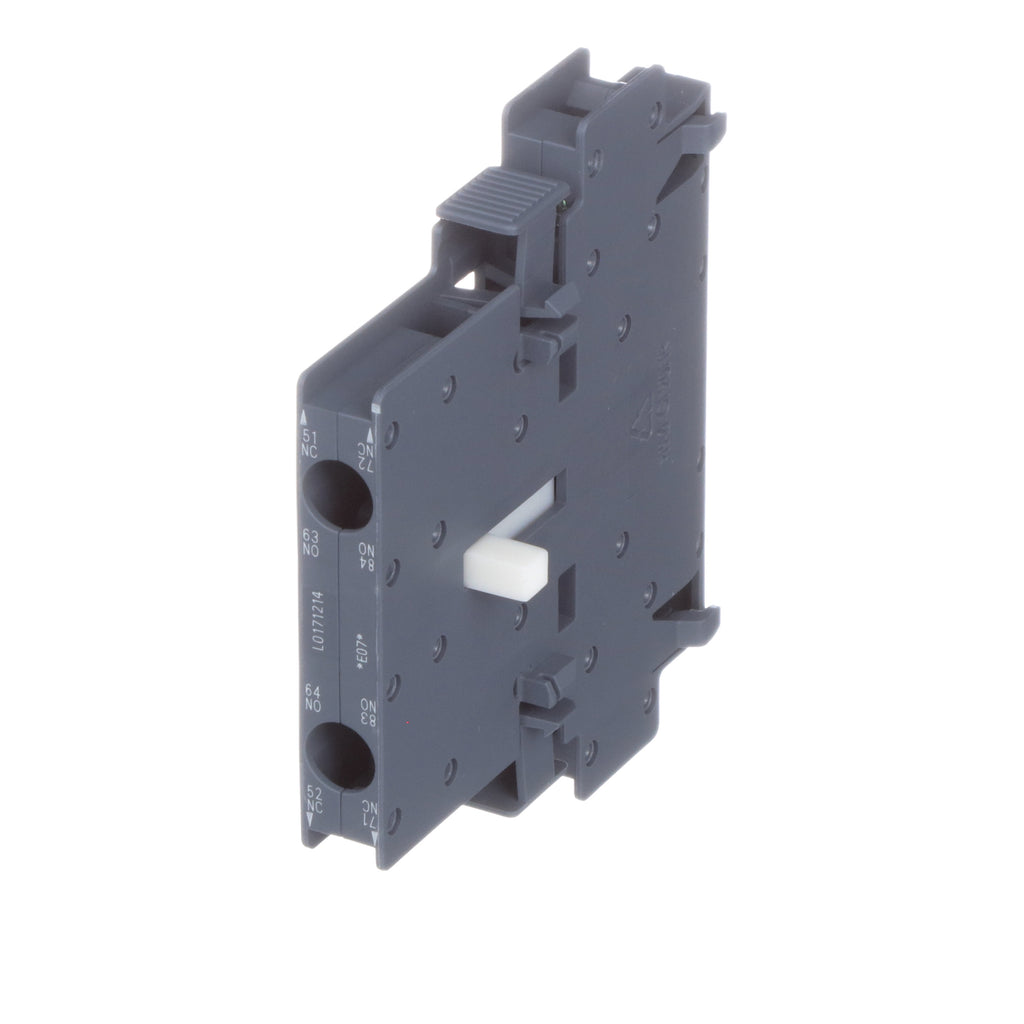

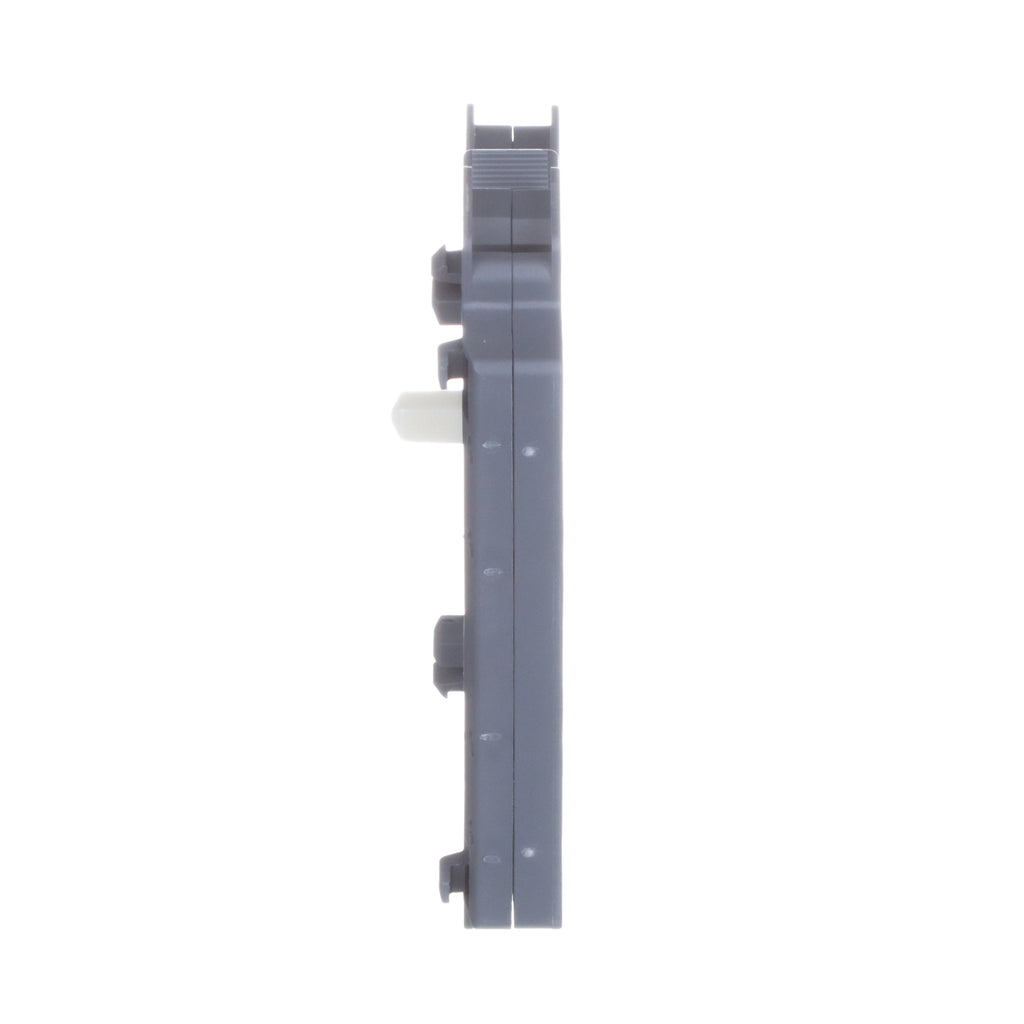

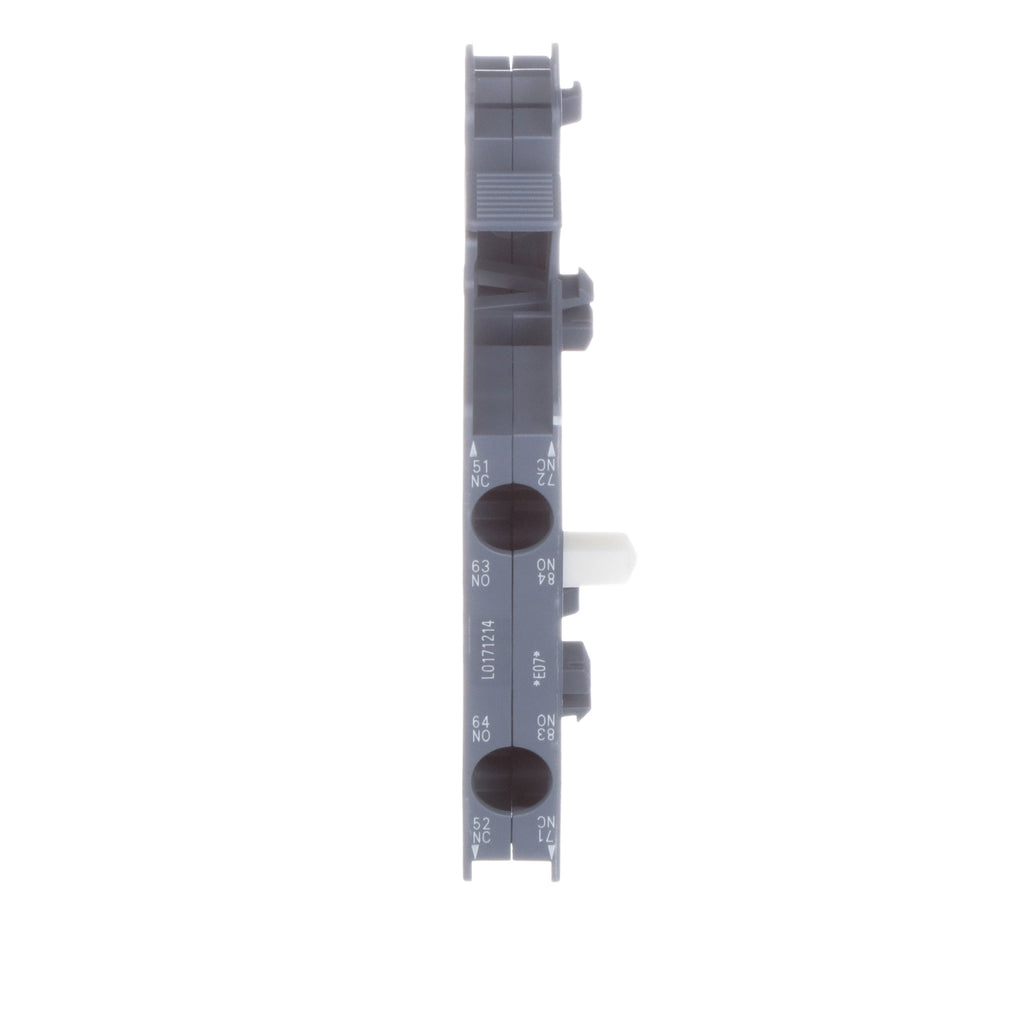

3RH1921-1EA11 is a Siemens SIRIUS auxiliary switch block designed for use with contactors in motor control applications. This block features 1 normally open (NO) and 1 normally closed (NC) contact, rated for 10 A at 230 VAC, with a maximum insulation voltage of 500 V and surge voltage resistance of 6 kV. It is suitable for S0 to S12 size contactors and features a snap-on mounting design with screw terminals for easy installation. The switch block provides reliable auxiliary contact switching for control circuits, with a mechanical service life of up to 10 million cycles and electrical endurance of 200,000 cycles at AC-15, 230 V. It meets IP20 protection standards and is certified to UL, CSA, EAC, CCC, and CE standards for global compliance.
- Manufacturer: Siemens
- Series: SIRIUS
- Part Number: 3RH1921-1EA11
- Contact Configuration: 1NO + 1NC
- Current Rating: 10 A
- Voltage Rating: 500 V insulation, 6 kV surge
- Number of Poles: 2
- Mounting Type: Snap-On
- Terminal Type: Screw
- Size Compatibility: S0-S12
- Protection Class: IP20
- Certifications: UL, CSA, EAC, CCC, CE
Specifications
- Part Number: 3RH19211EA11
- Manufacturer : Siemens
- Brand : Siemens
Product Data
- UPC : 754554401850
- GTIN : 4011209293526
- Country of Origin : Romania
- Dimensions : 3.346 x 2.953 x 0.906 inch
- Weight : 0.108 lb
