Product Info
- Manufacturer:Siemens
- Sub-Category:Contactor And Motor Starter Auxiliary
Description

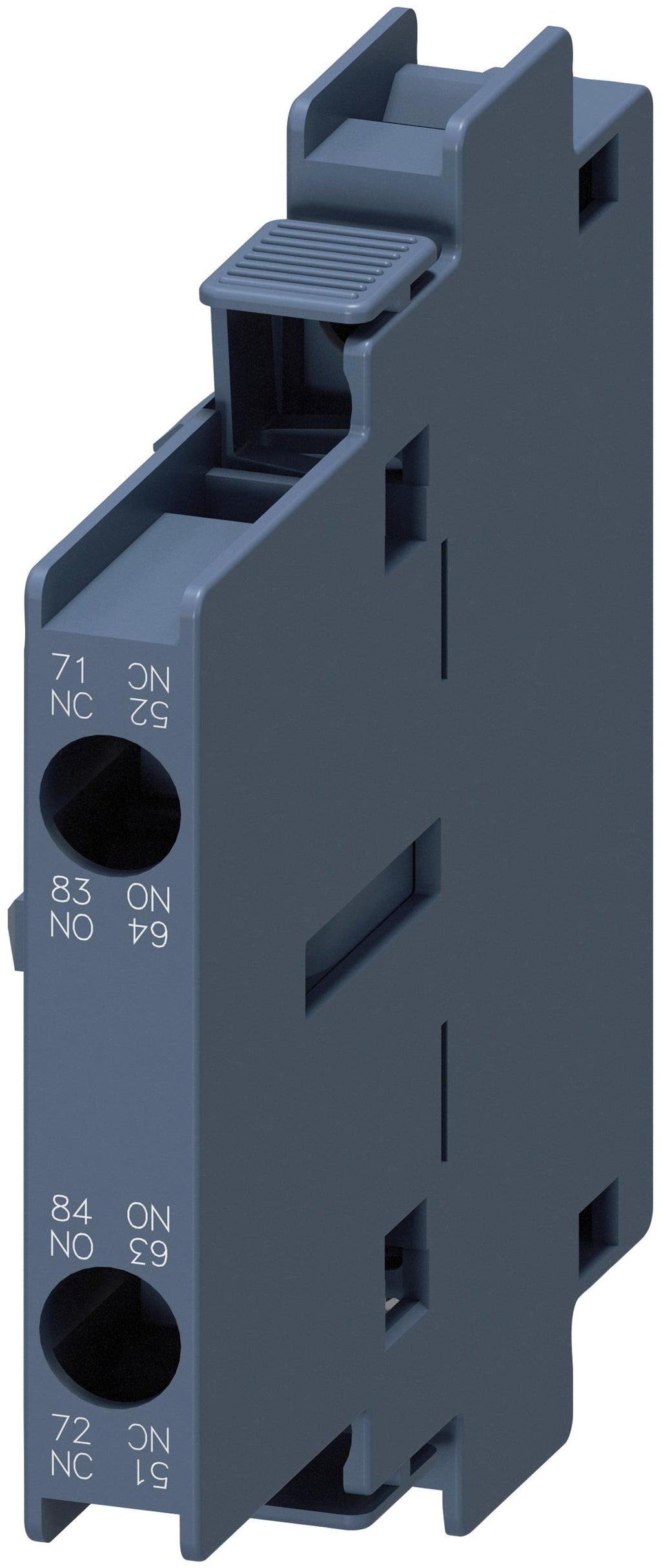

3RH1921-1EA11
3RH1921-1EA11 is a Siemens auxiliary switch block designed for motor control applications with 1 normally open (NO) and 1 normally closed (NC) contact in a 2-pole configuration.This auxiliary contact block features a lateral snap-on mount compatible with Siemens Sirius S0 to S12 contactors, screw terminal connections, and is rated for 6 amps at 230 volts.
- Contact Configuration: 1NO + 1NC
- Poles: 2
- Amperage Rating: 6 A
- Voltage Rating: 230 V AC
- Mounting Type: Lateral snap-on mount
- Compatible with Siemens Sirius S0 to S12 contactors
- Terminal Type: 10 mm screw connection
- Mechanical Service Life: 10,000,000 switching cycles
- Electrical Endurance: 200,000 cycles at AC-15, 230 V
- Insulation Voltage: 500 V rated
- Surge Voltage Resistance: 6 kV
- Operating Temperature Range: -25 to 60 °C
- Storage Temperature Range: -55 to 80 °C
Specifications
- Part Number: 3RH1921-1EA11
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Family : Sirius
- Type : 3RH
- Configuration : 1NO/1NC
Product Data
- UPC : 754554401850
- GTIN : 00754554401850
- Country of Origin : Germany
- Weight : 0.1078
