Product Info
- Manufacturer:Siemens
- Sub-Category:Contactor And Motor Starter Auxiliary
Description
3RH1921-1DA11

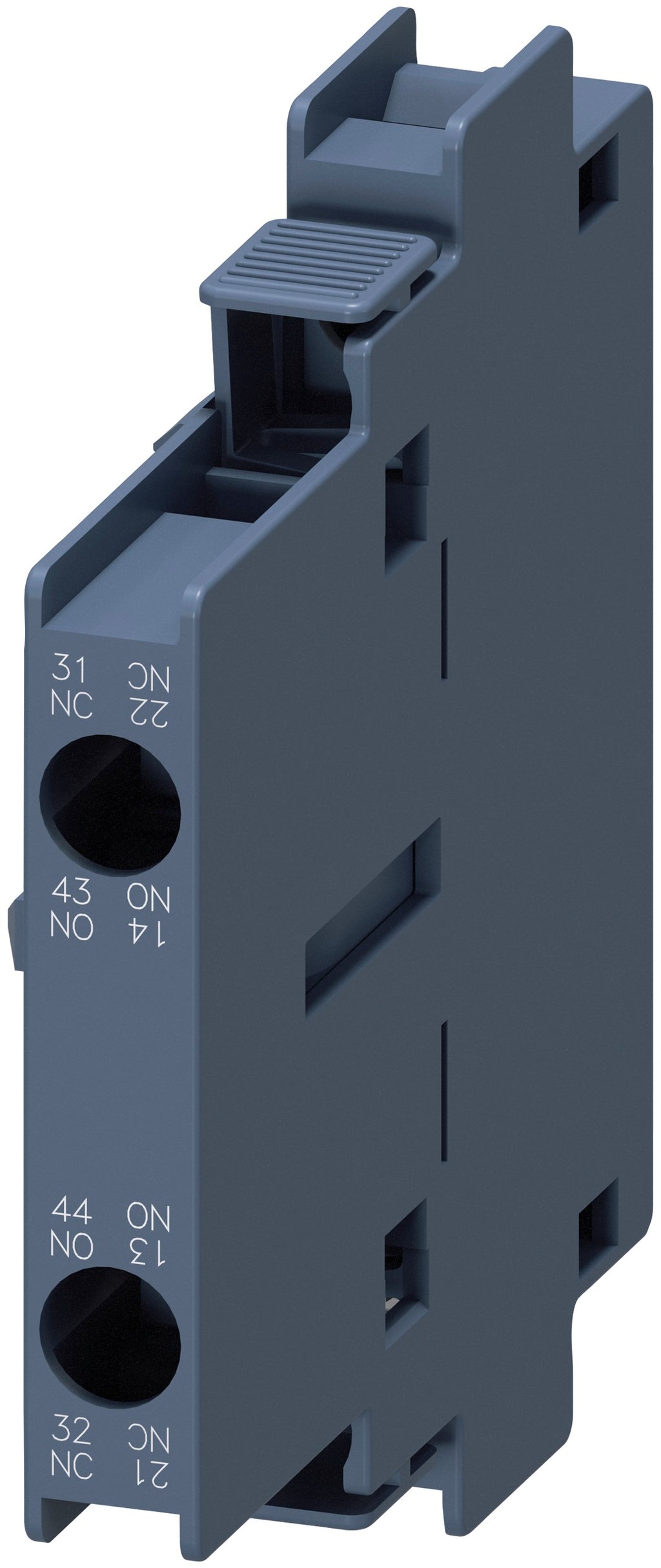

3RH1921-1DA11 is a Siemens SIRIUS 2-pole lateral auxiliary switch block designed for use with S0 to S12 frame motor and power contactors and contactor relays. This auxiliary switch block features a snap-on side mount design for easy installation and removal, making it ideal for electrical wiring applications in industrial control systems. The 3RH1921-1DA11 provides reliable switching with 1 normally open (NO) and 1 normally closed (NC) contact, rated for up to 6 A at 230 VAC. It is suitable for use in environments with operating temperatures from -25 to 60 degrees Celsius and offers IP20 protection. The block is designed for screw terminal connections and can be easily disassembled using a centrally positioned release lever.
- Manufacturer: Siemens
- Series: SIRIUS
- Part Number: 3RH1921-1DA11
- Mounting Type: Snap-on side mount
- Number of Poles: 2
- Contact Configuration: 1NO-1NC
- Amperage Rating: 6 A
- Voltage Rating: 230 VAC
- Connection Type: Screw terminal
- Operating Temperature: -25 to 60 °C
- Protection Rating: IP20

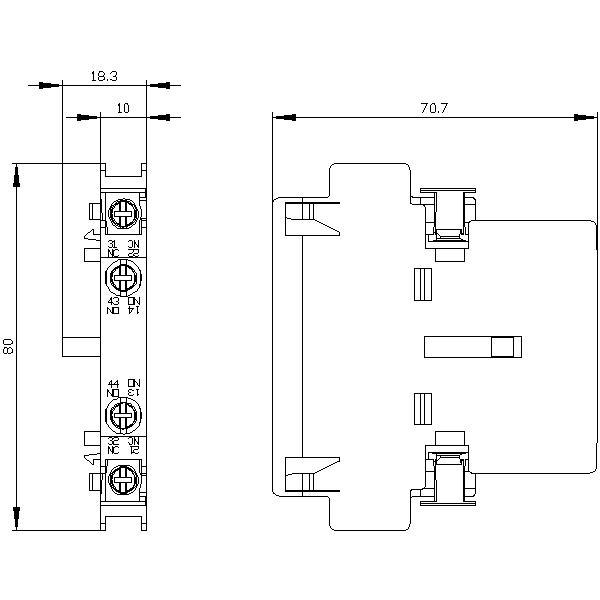

- Dimensions: 80 mm L x 10 mm W x 71 mm H
- Standards: IEC 60947-5-1
- Suitable For: S0 to S12 frame contactors and contactor relays
Specifications
- Part Number: 3RH1921-1DA11
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactor And Motor Starter Auxiliary
- Configuration : 1NO/1NC
Product Data
- UPC : 075455473885
- GTIN : 00754554738857
- Weight : 0.1056
