Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RB31434XB0

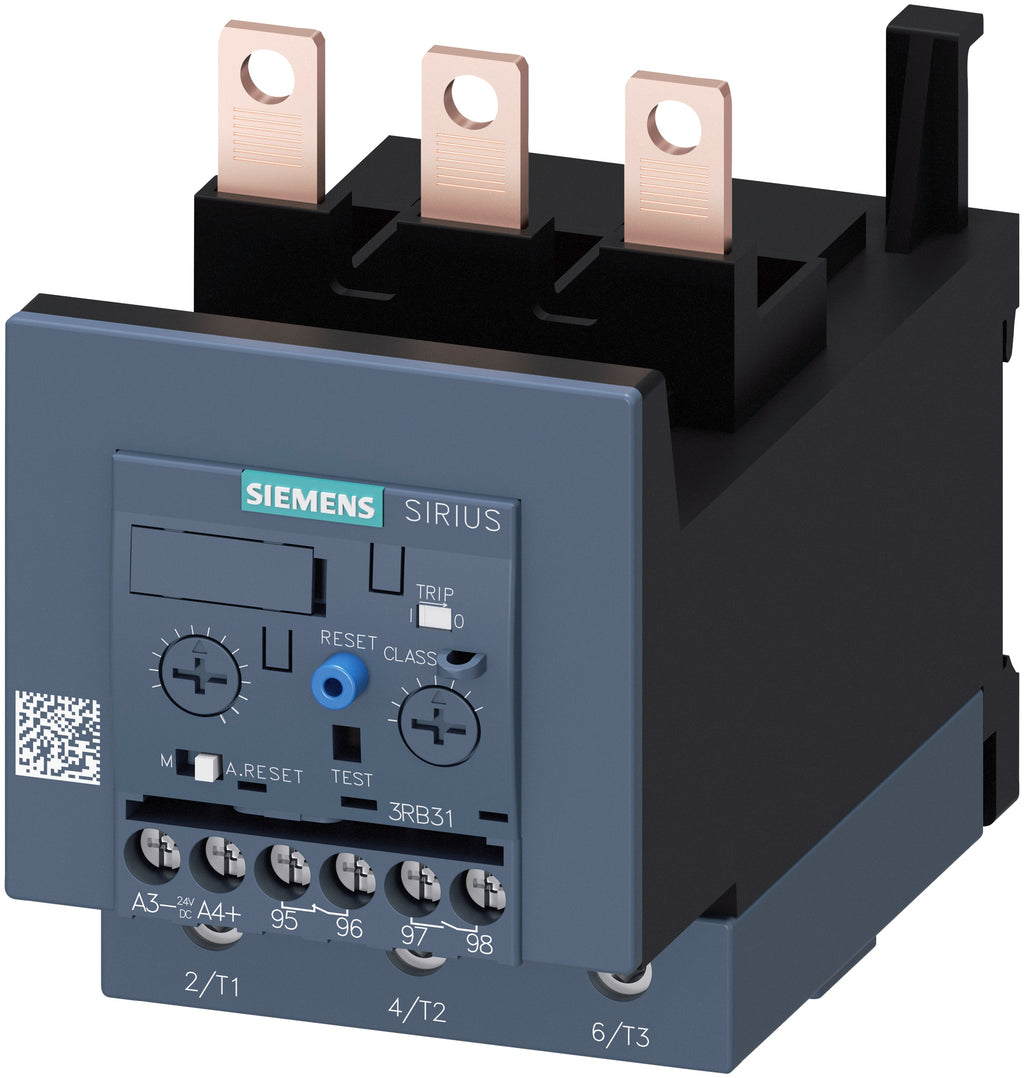

3RB31434XB0 is a Siemens Sirius electronic overload relay designed for motor protection with an adjustable current range of 32 to 115 amperes and 3 poles.This solid-state overload relay features a 1000 VAC coil voltage, 1NC-1NO contact form, and is suitable for mounting on contactors. It supports screw terminal connections for both main and auxiliary circuits, offers IP00/IP20 enclosure ratings, and operates within a temperature range of -25 to 60 degrees Celsius. The relay complies with trip classes 5E to 30E and is sized for S3 frame motors.
- Key Specifications
- Amperage Range: 32 to 115 A
- Poles: 3
- Coil Voltage: 1000 VAC
- Contact Form: 1NC-1NO
- Mounting Type: Contactor Mounting
- Terminal Type: Screw terminals for main and auxiliary circuits
- Enclosure Rating: IP00/IP20
- Trip Class: 5E to 30E
- Operating Temperature: -25 to 60 °C
- Dimensions: 106 mm H x 70 mm W x 124 mm D
- Protection Class: IP20 front, IP00 terminals
- Shock Resistance: 8g / 11 ms
- Part Number: 3RB31434XB0
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Overload relay
- UPC : 804766406638
- Dimensions : 106 mm H x 70 mm W x 124 mm D
- Weight : 1.246 lb
