Product Info
- Manufacturer:Siemens
- Sub-Category:Contactors
Description
3RB31134SB0

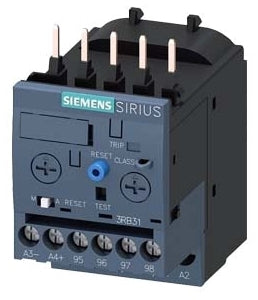

3RB31134SB0 is a Siemens 3-pole solid state overload relay designed for motor protection with a full load amperage range of 3 to 12 amps and a voltage rating up to 690 VAC.This overload relay features Class 5 to 30 trip characteristics, screw terminal connections, and includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact. It is designed for mounting on S00 size contactors and offers both automatic and manual reset options. The device is ambient temperature compensated and rated for industrial motor control applications.
- Amperage: 3 to 12 A full load
- Voltage: Up to 690 VAC, 50/60 Hz
- Number of Poles: 3
- Trip Class: 5 to 30
- Mounting Type: Contactor mounting, Size S00
- Connection Type: Screw terminals
- Auxiliary Contacts: 1NO + 1NC
- Reset Type: Automatic and manual reset
- Contact Rating: B300 / R300
- Enclosure: IP20
- Ambient Temperature Compensated
Specifications
- Part Number: 3RB31134SB0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Overload relay
- Family : 3RB3
Product Data
- UPC : 066264390314
- GTIN : 00662643903140
- Country of Origin : Czechia
- Dimensions : 79 mm H x 45 mm W x 73 mm D
- Weight : 0.492 lb
- Certification : Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
