Product Info
- Manufacturer:Siemens
- Sub-Category:Overload Relay
Description
3RB31134RB0

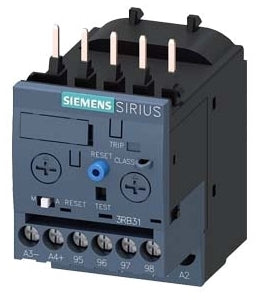

3RB31134RB0 is a Siemens SIRIUS electronic overload relay designed for motor protection in 3-phase applications. This 3-pole device features an adjustable amperage range from 0.1A to 0.4A and is compatible with NEMA Size S00 contactors. It provides reliable protection with screw terminal connections for both main and auxiliary circuits. The relay is engineered for easy mounting and offers manual reset functionality. It is suitable for use in industrial motor control circuits where precise overload protection is required. The device meets IP20 protection rating and is built to withstand shock and vibration in demanding environments.
- Part Number: 3RB31134RB0
- Manufacturer: Siemens
- Series: SIRIUS
- Frame Size: S00
- Number of Poles: 3
- Adjustable Amperage Range: 0.1A - 0.4A
- Coil Voltage: 230VAC, 220VDC
- Switching Voltage: 690VAC, 24VDC
- Terminal Type: Screw
- Mounting Type: Contactor Mount
- Protection Class: IP20
- Application: 3-Phase Motor Protection
Specifications
- Part Number: 3RB31134RB0
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Overload Relay
- Type : 3RB
- Phase : 3
- Poles : 3
- Amperage Maximum : 0.4
- Amperage Minimum : 0.1
- Nema Starter Size : Size S00
Product Data
- UPC : 662643903126
- GTIN : 00662643903126
- Country of Origin : Czechia
- Dimensions : 1.77" x 3.11"
- Weight : 0.456 lb
- Certification : Lead CAS-No. 7439-92-1 Greater Than 0, 1 % (w/w), REACH Art 33 Duty to Inform According to the Current List of Candidates, RoHS 07/01/2006, WEEE (2012/19/EU) Take-Back Obligation
