Description
3RB30462XB0

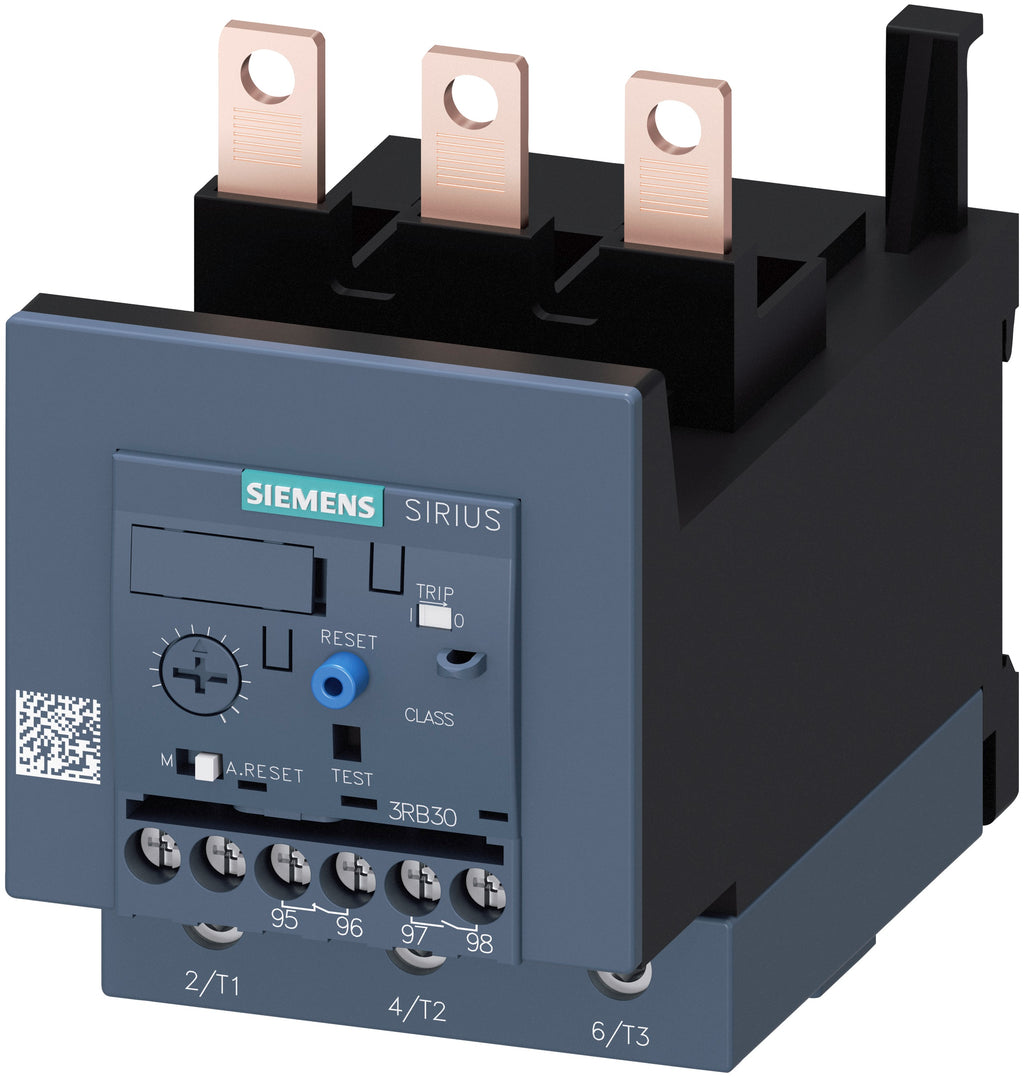

3RB30462XB0 is a Siemens electronic overload relay designed for motor protection with an amperage range of 32 to 115 A and Class 20E trip unit.
This overload relay features electronic overload release, mounting on contactors, and screw-type terminals for both main and auxiliary circuits. It supports a full-load current rating of 115 A at 480 V and 600 V, with a trip class of 20E and IP20 front protection. The relay includes 1 NO and 1 NC auxiliary contacts and is suitable for use with gG fuses rated 315 A for main circuit short-circuit protection. It offers shock resistance according to IEC 60068-2-27 and is designed for any mounting position.
- Amperage range: 32 to 115 A
- Voltage rating: 480 V / 600 V
- Trip class: 20E
- Mounting type: Contactor mounting
- Contact form: 1 NO, 1 NC auxiliary contacts
- Connection type: Screw terminals (main and auxiliary circuits)
- Protection class: IP20 front, IP00 terminals
- Short-circuit fuse rating: 315 A gG for main circuit
- Shock resistance: 8g / 11 ms and 15g / 11 ms per IEC 60068-2-27
- Size/Frame: S3
- UL/CSA ratings: B600 / R300 auxiliary contact rating
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3RB30462XB0
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Contactors
- Section : Overload relay
Product Data
- UPC : 804766407918
- Dimensions : 106 mm H x 70 mm W x 124 mm D
- Weight : 1.246 lb
