3RB2056-2FC2 - Siemens SIRIUS 3 Pole Overload Relay 50-200A 1000VAC Solid State Class 20E S6 Frame

3RB2056-2FC2

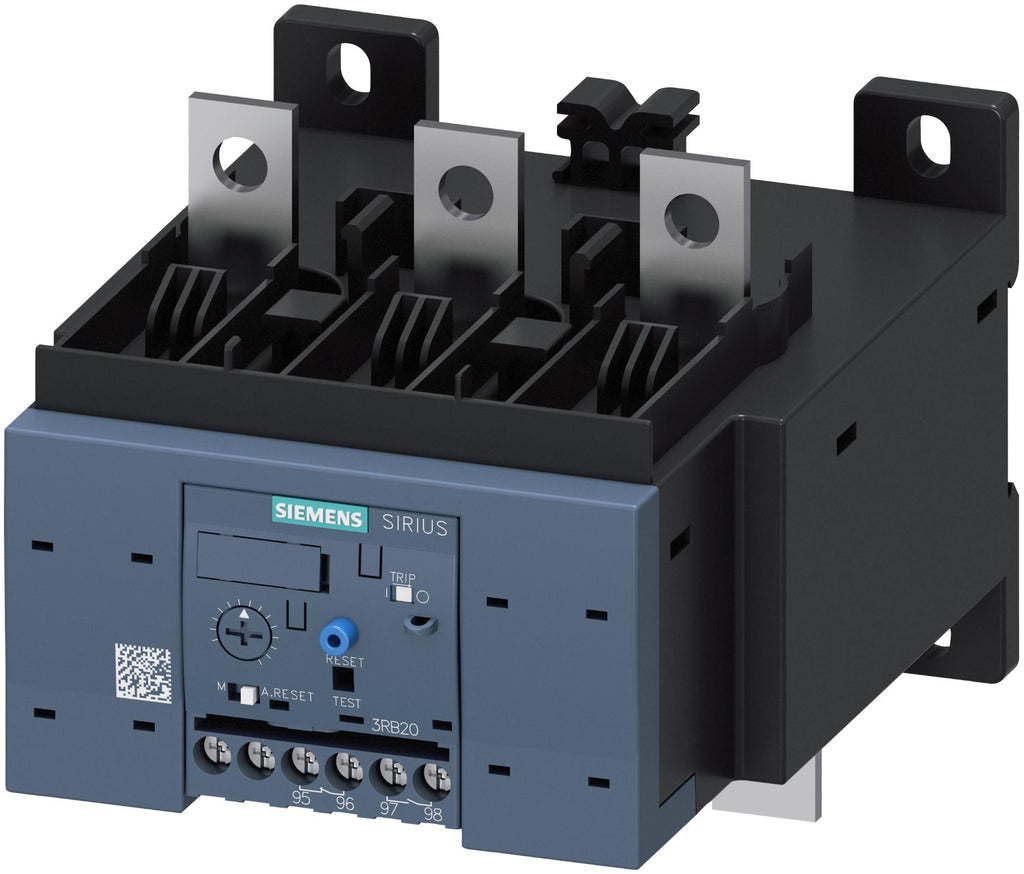

3RB2056-2FC2 is a Siemens SIRIUS solid-state overload relay designed for reliable motor protection in industrial applications. This 3-pole device features a 50-200A adjustable current range and is rated for 1000VAC, making it suitable for a wide range of three-phase motor circuits. The relay is built with a robust S6 frame and Class 20E trip unit for precise overload protection, and it supports both contactor mounting and stand-alone installation. Its solid-state design ensures fast response and long service life, while the screw terminal connection provides secure wiring. The 3RB2056-2FC2 is engineered for use in demanding environments, offering protection against overload, phase asymmetry, and phase failure. It features automatic/manual reset options and is compatible with Siemens 3RT large contactors. The relay is rated for operating temperatures from -25°C to 60°C and meets relevant IEC standards for industrial motor protection.

• Part Number: 3RB2056-2FC2
• Manufacturer: Siemens
• Series/Frame: SIRIUS S6
• Amperage: 50-200A
• Voltage: 1000VAC
• Poles: 3
• Mounting Type: Contactor/Stand-Alone
• Interrupt Rating: 1000VAC
• Trip Unit: Class 20E
• Connection Type: Screw Terminal
• Protection Type: Solid State
• Operating Temperature: -25°C to 60°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3RB2056-2FC2
• Manufacturer : Siemens
• Brand : Siemens
• Category : Motor Control
• Item Subcategory : Overload Relay
• Type : 3RB
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
• Relay Style : Solid State
• Amperage Maximum : 200
• Amperage Minimum : 50

Product Data

• UPC : 040892553468
• GTIN : 00040892553468
• Weight : 2.27
• Temp Rating : -13-158 ¡F (-25-70 ¡C)
