Product Info
- Manufacturer:Siemens
- Sub-Category:Electrical terminals
Description
3RA68230AB

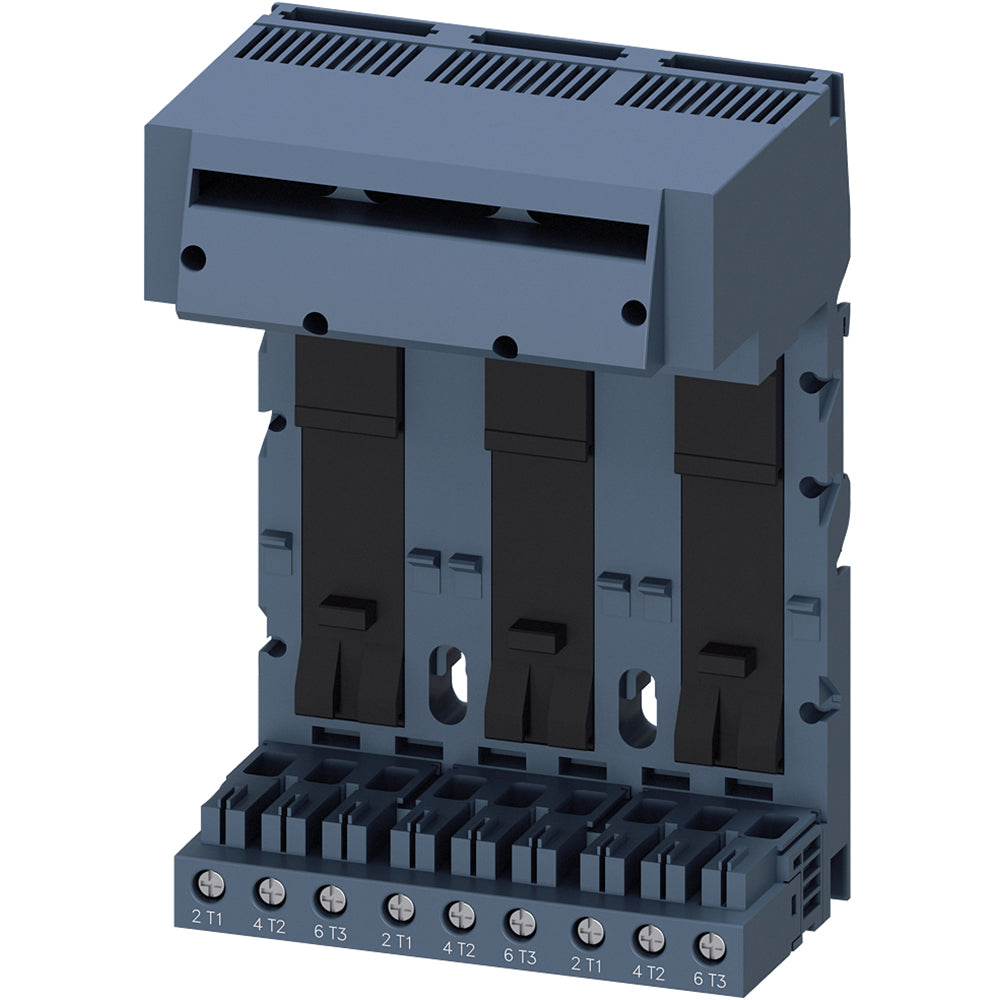

3RA68230AB - Siemens SIRIUS triple expansion block with screw terminal connections for main circuit, providing 3 slots for compact load feeders.This Siemens 3RA68230AB is a 3-pole extension block rated for 63A operational current at 400V AC and up to 690V operating voltage. It features IP20 protection class, screw and snap-on mounting, and screw-type terminals with M3 screws. Designed for motor control applications, it supports conductor cross-sections of 2x(16-10 AWG) or 1x(16-8 AWG) on the load side, with a 10mm stripped length and 2-2.5 Nm tightening torque.
- Part Number: 3RA68230AB
- Manufacturer: Siemens SIRIUS
- Type: Triple expansion block, 3 slots
- Poles: 3-pole
- Operational Current: 63A at 400V AC
- Operating Voltage: 690V AC maximum
- Protection Class: IP20
- Mounting: Screw and snap-on
- Dimensions: 135mm W x 197mm H x 100mm D
- Connection: Screw terminals, M3 screws
- Conductor Cross-Section: 2x(16-10 AWG), 1x(16-8 AWG)
- Operating Temperature: -20 to +60 C
Specifications
- Part Number: 3RA68230AB
- Manufacturer : Siemens
- Brand : Siemens
- Category : Motor Control
- Item Subcategory : Electrical terminals
- Family : Sirius
- Type : 3RA
Product Data
- UPC : 662643360660
- Weight : 1.967
