Product Info
- Manufacturer:Eaton
- Sub-Category:Load Center
Description
3BR4242L225

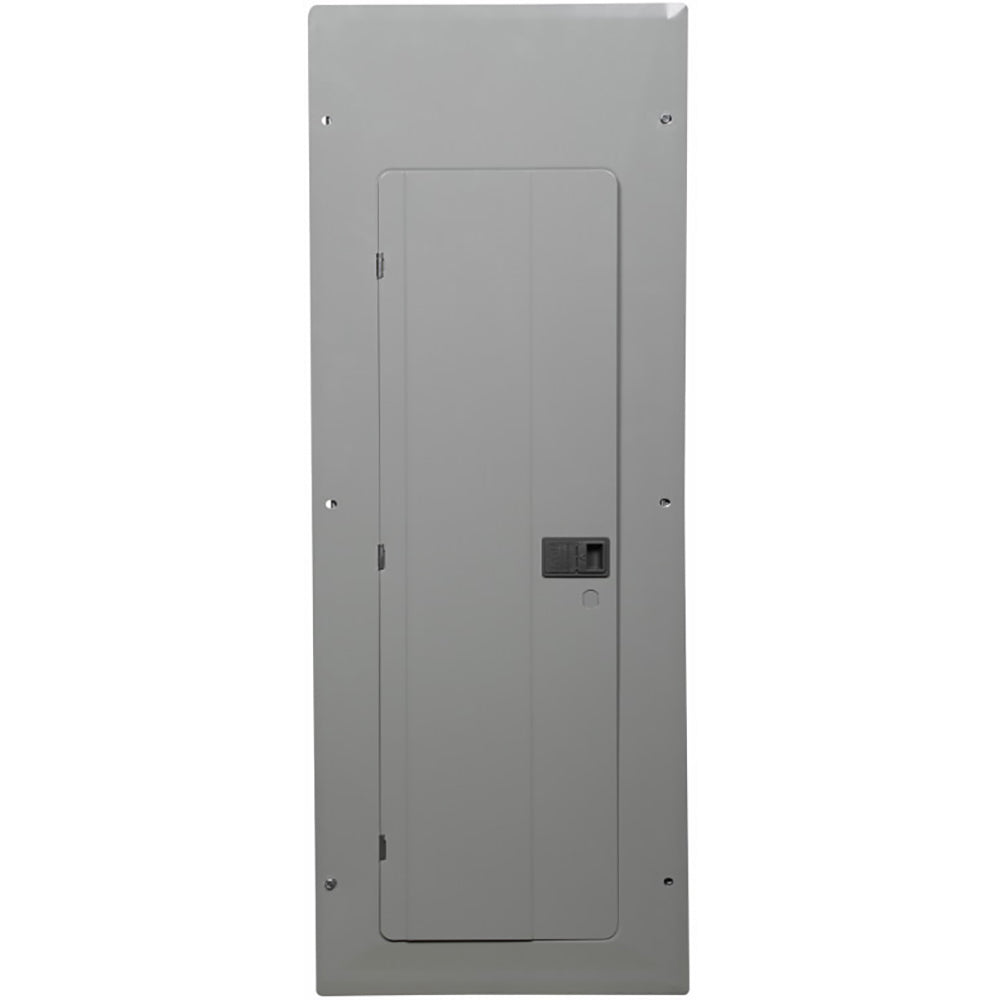

3BR4242L225 is an Eaton 225A 3-phase main lug loadcenter designed for reliable power distribution in commercial and industrial applications.3BR4242L225 features a metallic NEMA 1 enclosure with aluminum bus, supports 42 circuits and spaces, and is rated for 208Y/120 and 240 volts. It includes a cover, no feed-thru lugs, and is compatible with Type BR 1-inch breakers. The loadcenter has a 25 kA interrupt rating and combination mounting for versatile installation.
- Amperage Rating: 225 A
- Voltage Rating: 208Y/120, 240 V
- Poles: 3-Phase
- Number of Circuits: 42
- Interrupt Rating: 25 kAIC
- Bus Material: Aluminum
- Enclosure Type: NEMA 1 Metallic
- Mounting Type: Combination
- Compatible Breakers: Type BR 1-inch
- Number of Spaces: 42
- Number of Wires: 4
- Certifications: UL 50, UL 67
Specifications
- Part Number: 3BR4242L225
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Load Center
- Family : BR Series
- Type : 3BR
- Voltage : 240
- Amperage : 225
- Phase : 3
- Bus Type : Aluminum
Product Data
- UPC : 786676442756
- GTIN : 00786676442756
- Country of Origin : United States
- Dimensions : 3.88 in x 45 in x 14.31 in (Length/Depth x Height x Width)
- Weight : 36.8
- Certification : UL 67,UL 50
