Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
39018R2B5.5

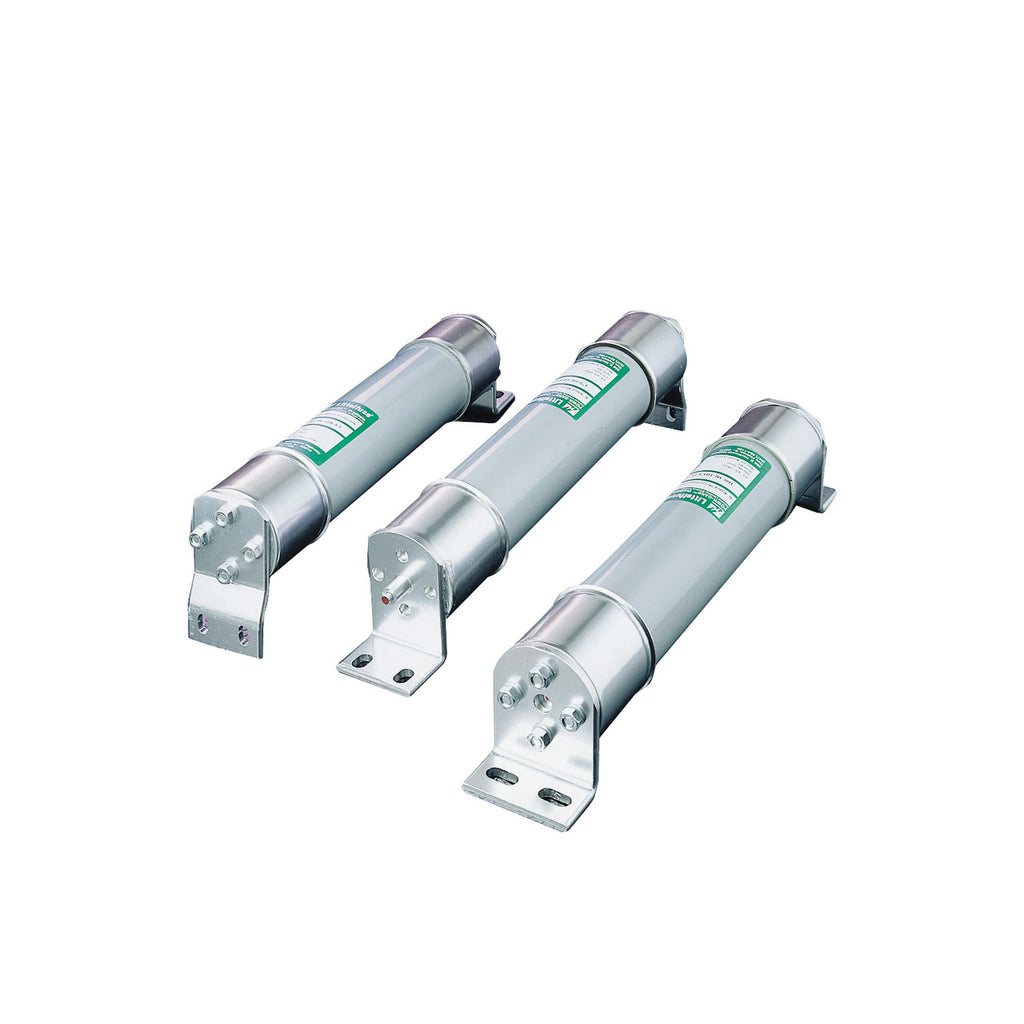

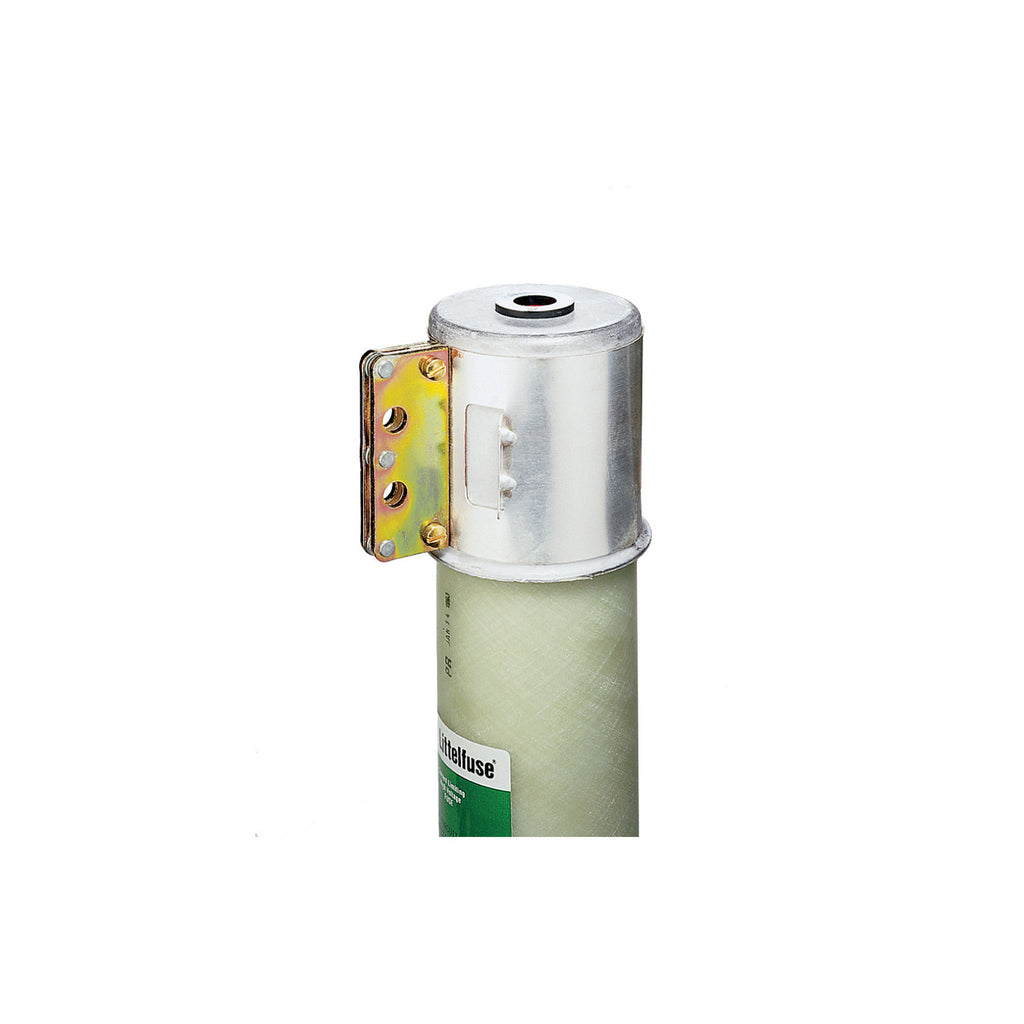

39018R2B5.5 is a Littelfuse R Rated Medium Voltage Fuse designed for reliable short-circuit protection in medium voltage applications. This fuse features a bolt-in mounting style and is rated for 5.5 kVAC and 390 amps, making it suitable for use with motors, transformers, and associated circuitry. The 39018R2B5.5 is a current-limiting, R-rated fuse with a robust design for demanding industrial environments. It provides high interrupting capacity and is engineered for secure, dependable operation in critical power distribution systems.
- Manufacturer: Littelfuse
- Part Number: 39018R2B5.5
- Amperage: 390A
- Voltage Rating: 5.5 kVAC
- Mounting Type: Bolt-In
- Interrupt Rating: 80,000A at 5.5 kVAC
- Series/Frame: R Rated
- Current Limiting: Yes
- Diameter: 3 inches
- Application: Medium Voltage Motors, Transformers
Specifications
- Part Number: 39018R2B5.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : R Rated
- Type : R Rated
- Voltage : 5500
- Amperage : 390
- AIC rating : [email protected]
- Connection : Bolt-In
- Diameter : 3
- Class Rating : R
- Barrels : 2
Product Data
- UPC : 079458042672
- GTIN : 00079458042672
- Weight : 20
