Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

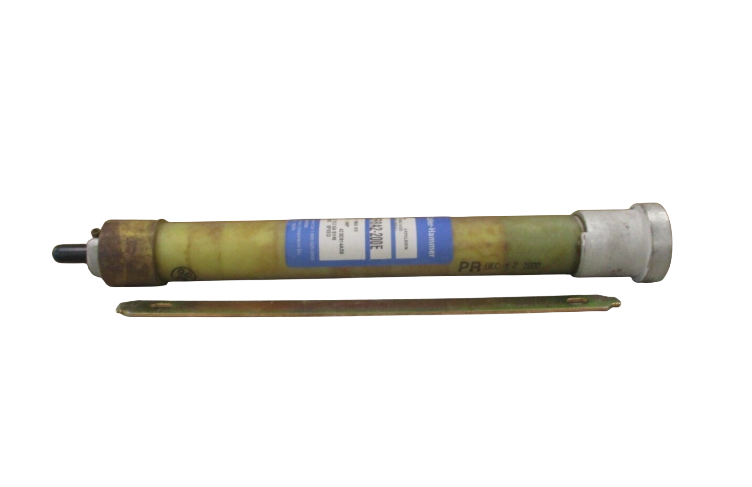

38RBA4-250E
38RBA4-250E is an Eaton Class RBA4 expulsion fuse designed for high voltage power protection applications.38RBA4-250E features a 250 ampere rating and a 38 kV voltage rating, providing reliable current interruption using boric acid as the arc extinguishing medium. It includes a calibrated current responsive fuse element, a parallel high strength strain element, and an arcing rod for effective fault clearing. This fuse is part of Eaton's RBA series, suitable for indoor mounting with front connected terminals and available in disconnect or non-disconnect mountings.
- Key Specifications
- Amperage: 250A
- Voltage Rating: 38 kV
- Fuse Class: RBA4
- Fuse Type: Expulsion
- Mounting: Front connected terminals, disconnect or non-disconnect options
- Interrupting Medium: Boric acid
- Internal Components: Calibrated fuse element, strain element, arcing rod
- Application: High voltage power protection
Specifications
- Part Number: 38RBA4-250E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Type : RBA4
- Voltage : 34500
- Amperage : 250
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 78667023718
- GTIN : 00786670237181
- Country of Origin : Dominican Republic
- Dimensions : 51.3 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 3.1
- Certification : IEEE Std. C37.41
