Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
38RBA4-20E

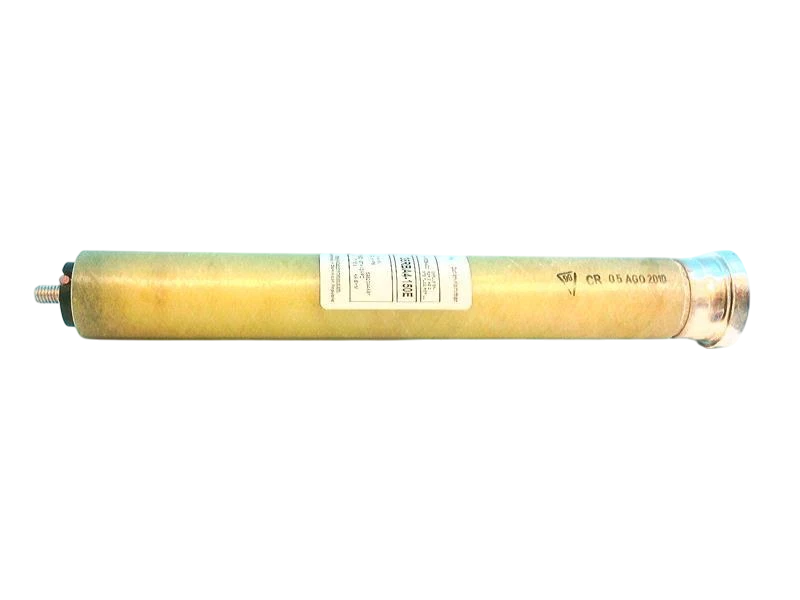

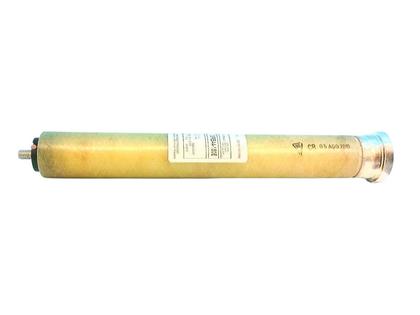

38RBA4-20E is a Eaton 20 amp, 38 kV RBA4 standard speed expulsion fuse designed for high voltage power protection.
This fuse is part of Eaton's RBA4 series, featuring a standard speed rating and expulsion type construction. It uses boric acid as the interrupting medium, which decomposes into water vapor under fault conditions to safely interrupt current. The fuse is rated for 20 amperes and 38 kilovolts, suitable for high voltage applications requiring reliable overcurrent protection.
- Key Specifications
- Amperage: 20 A
- Voltage Rating: 38 kV
- Type: RBA4 Standard Speed Expulsion Fuse
- Interrupting Medium: Boric Acid
- Series: RBA4
- Mounting: Expulsion Fuse Refill Unit
- Class: E
- Manufacturer: Eaton
- Part Number: 38RBA4-20E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : Fuse Refills
- Type : RBA4
- Voltage : 34500
- Amperage : 20
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
- UPC : 78667015061
- GTIN : 00786670150619
- Country of Origin : Dominican Republic
- Dimensions : 35.56 mm x 55.88 mm x 345.948 mm (Length/Depth x Height x Width)
- Weight : 1.46056624
- Certification : IEEE Std. C37.41
