- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
38RBA2-200E

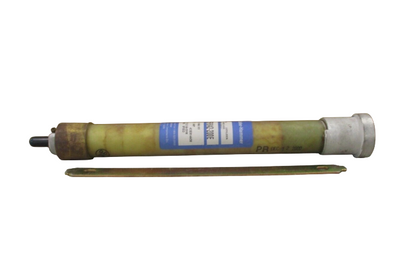

38RBA2-200E is an Eaton Type RBA2 single barrel standard speed expulsion fuse refill unit designed for high-voltage power distribution applications. This refill unit uses boric acid as the interrupting medium, which decomposes under fault conditions to safely interrupt electrical faults and release innocuous water vapor clouds. The unit is engineered for reliable performance in utility and industrial power systems requiring Class E expulsion fuse technology.Key Specifications
- Part Number: 38RBA2-200E
- Manufacturer: Eaton
- Fuse Type: RBA2 Expulsion Fuse Refill Unit
- Amperage Rating: 200E
- Nominal Voltage: 35 kV
- Maximum Voltage: 38 kV
- Fuse Class: E
- Speed: Standard Speed
- Interrupting Medium: Boric Acid
- Housing Material: Glass Epoxy
- Length: 13.12 inches
- Width: 1.5 inches
Specifications
- Part Number: 38RBA2-200E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Section : Fuse Refills
- Type : RBA2
- Voltage : 34500
- Amperage : 200
- AIC rating : [email protected]
- Class Rating : E
- Barrels : 1
- Velocity : Standard
Product Data
- UPC : 78667023509
- GTIN : 00786670235095
- Country of Origin : Dominican Republic
- Dimensions : 15.2 in x 2.2 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 1.4
- Certification : IEEE Std. C37.41
