Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
38DBA1-3E

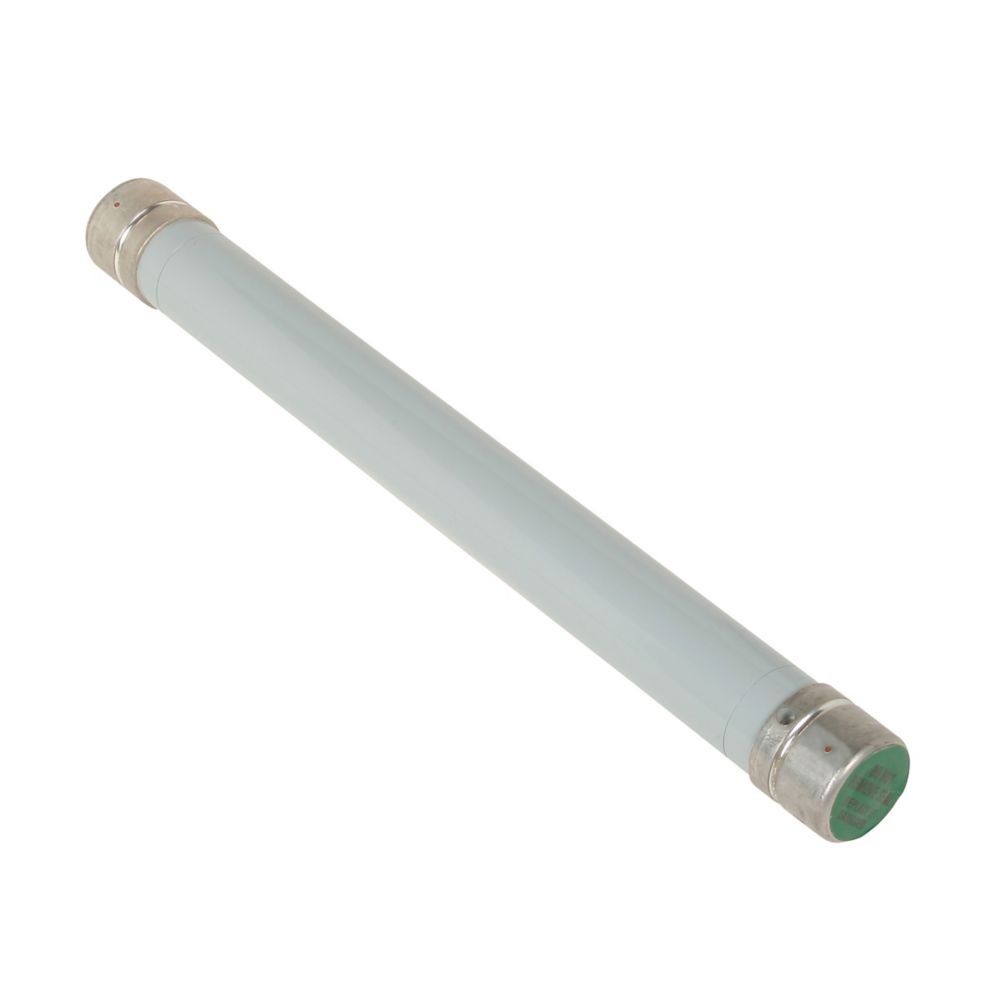

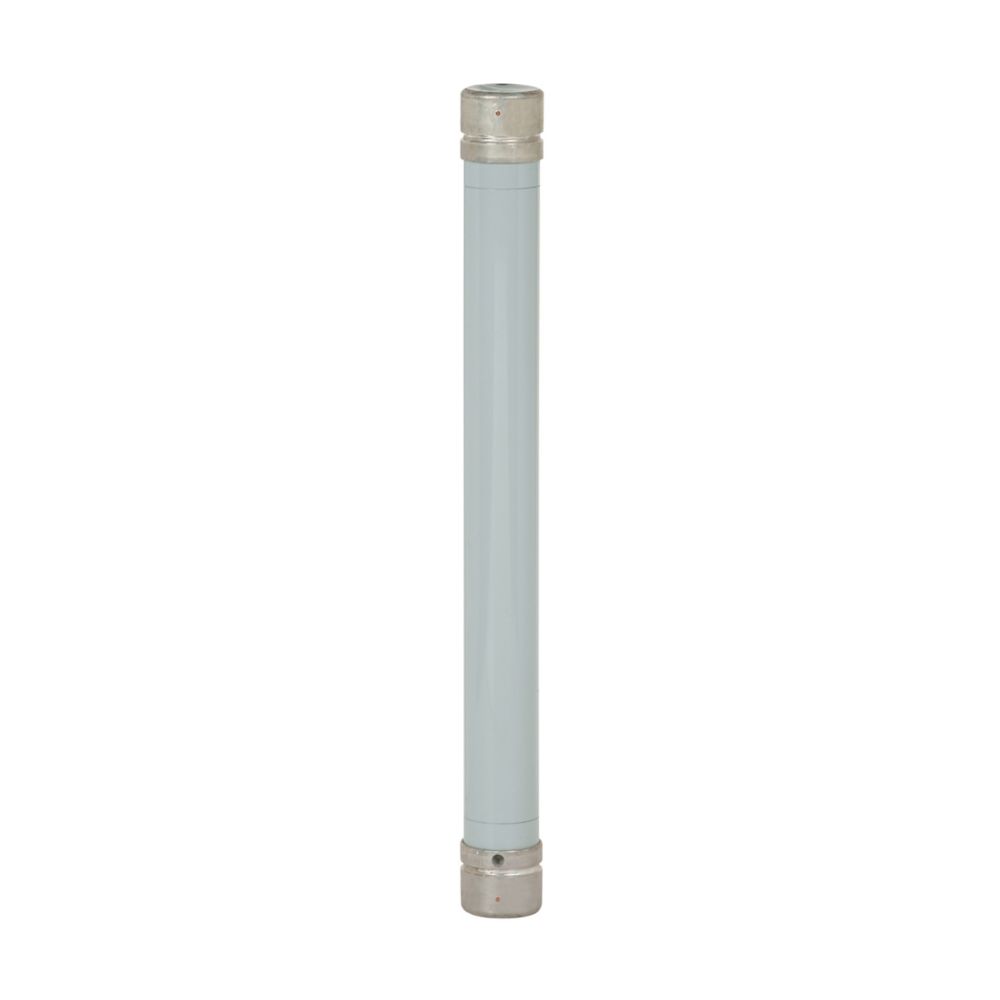

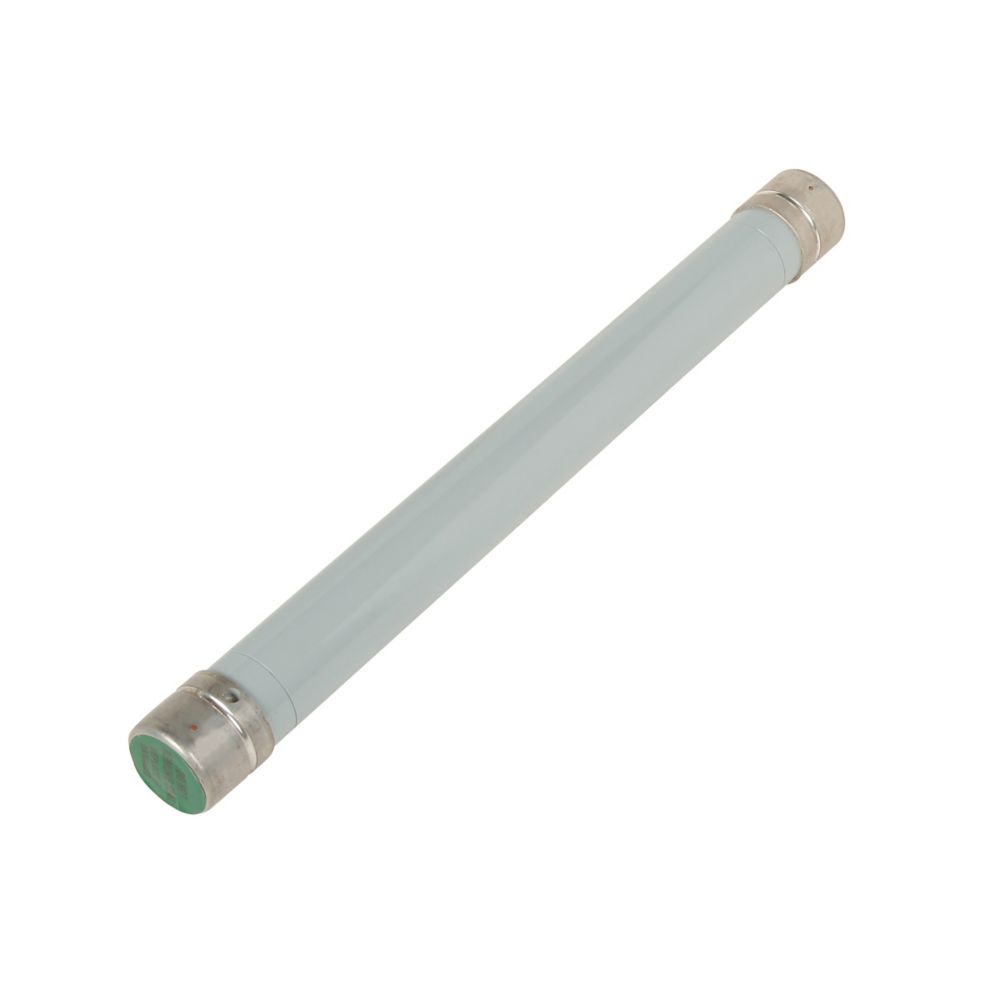

38DBA1-3E is an Eaton expulsion fuse refill unit designed for medium voltage applications.
This fuse is a Class E expulsion type with a 3 ampere rating and a maximum voltage of 38 kV (34.5 kV nominal). It features a single barrel design and provides an interrupting rating of 5 kA at 38 kV. The fuse uses boric acid as the interrupting medium to safely clear faults in electrical distribution systems.
- Key Specifications
- Manufacturer: Eaton
- Part Number: 38DBA1-3E
- Fuse Type: Expulsion Fuse Refill Unit
- Fuse Class: Class E
- Amperage Rating: 3 Amps
- Maximum Voltage: 38 kV
- Nominal Voltage: 34.5 kV
- Interrupt Rating: 5 kA at 38 kV
- Design: Single Barrel
- Part Number: 38DBA1-3E
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : DBA
- Type : DBA1
- Voltage : 34500
- Amperage : 3
- AIC rating : 5kA@38kV
- Connection : Ferrule
- Class Rating : E
- Barrels : 1
- Velocity : Standard
- UPC : 78667024322
- GTIN : 00786670243229
- Country of Origin : Dominican Republic
- Dimensions : 28.5 in x 1.7 in x 1.7 in (Length/Depth x Height x Width)
- Weight : 5
- Certification : IEEE Std. C37.41
