Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
36TDQSJ25

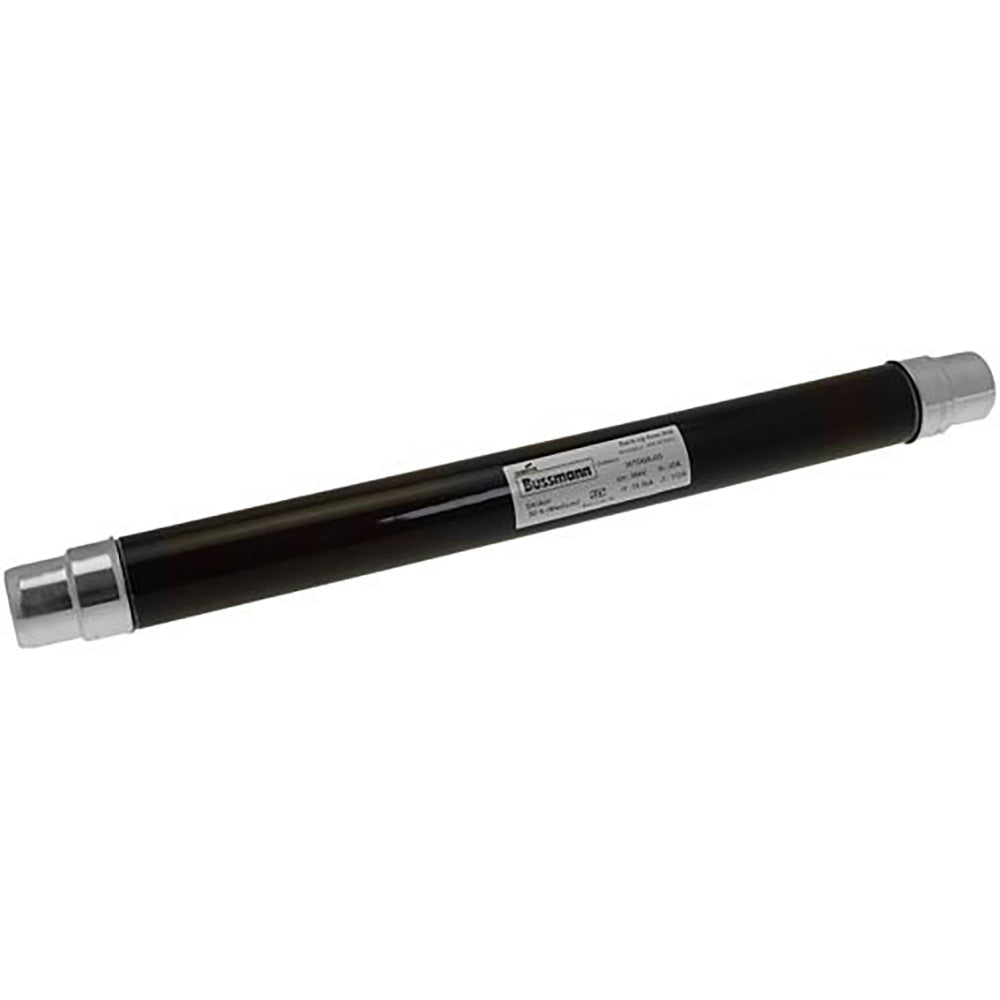

36TDQSJ25 is a medium voltage DIN fuse from the Eaton Bussmann series, designed for reliable circuit protection in demanding electrical environments. This fuse features a 25A current rating and a 36kVAC voltage rating, making it suitable for medium voltage applications. The 2" backup design with striker provides enhanced safety and performance. The 36TDQSJ25 fuse is engineered for DIN mounting and is built to deliver dependable protection in industrial and commercial power distribution systems. Its resin seal construction and striker mechanism ensure safe operation and easy status indication.
- Part Number: 36TDQSJ25
- Manufacturer: Eaton
- Series: Bussmann
- Mounting Type: DIN
- Current Rating: 25 A
- Voltage Rating AC: 36 kVAC
- Physical Size: 2", 51 x 537 mm
- Feature: Backup with Striker
- Type: Medium Voltage Fuse
- Construction: Resin Seal
- Application: Industrial and Commercial Power Distribution
- Category: Fuse
Specifications
- Part Number: 36TDQSJ25
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : DIN
- Type : DIN
- Voltage : 36000
- Amperage : 25
- AIC rating : 35.5kA@36kV
- Diameter : 2
- Class Rating : R
- Barrels : 1
Product Data
- UPC : 005171218644
- GTIN : 00051712186445
- Dimensions : 537 mm x 54 mm x 51 mm (Length/Depth x Height x Width)
- Weight : 6.67
