Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
3594120M83M

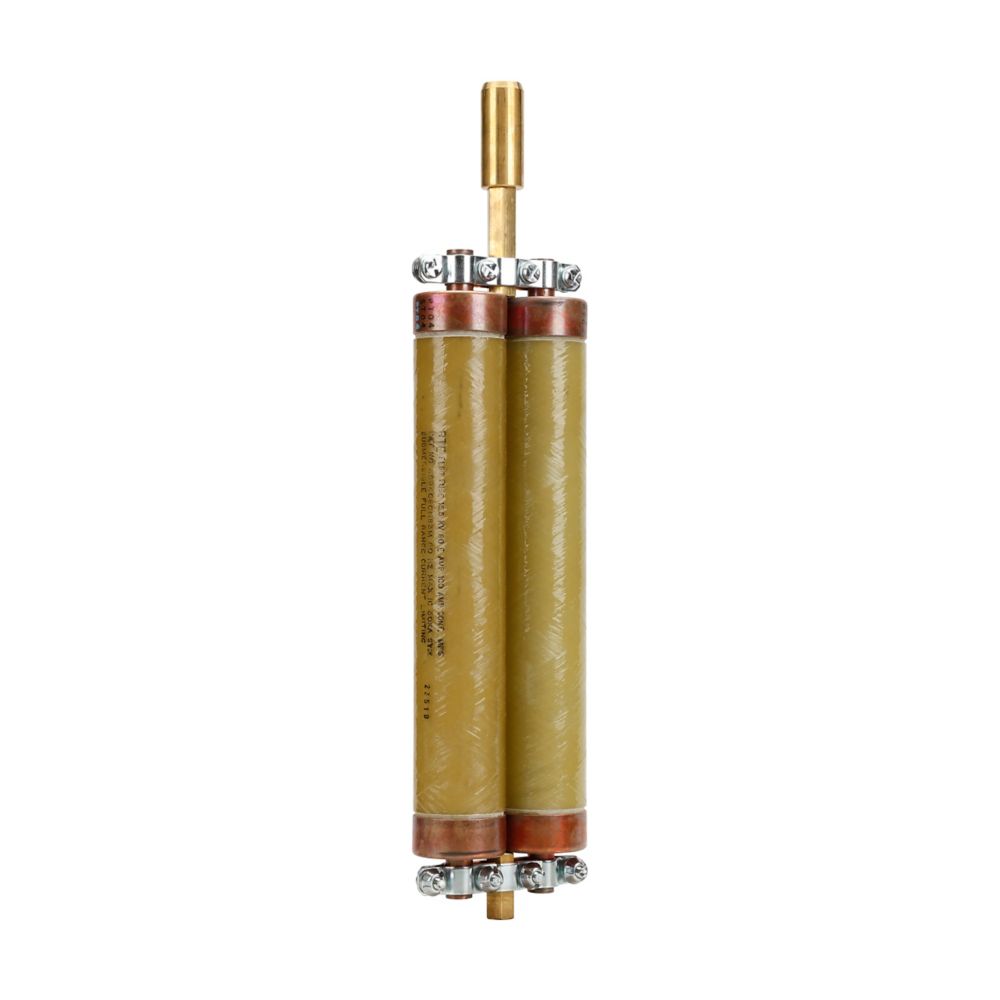

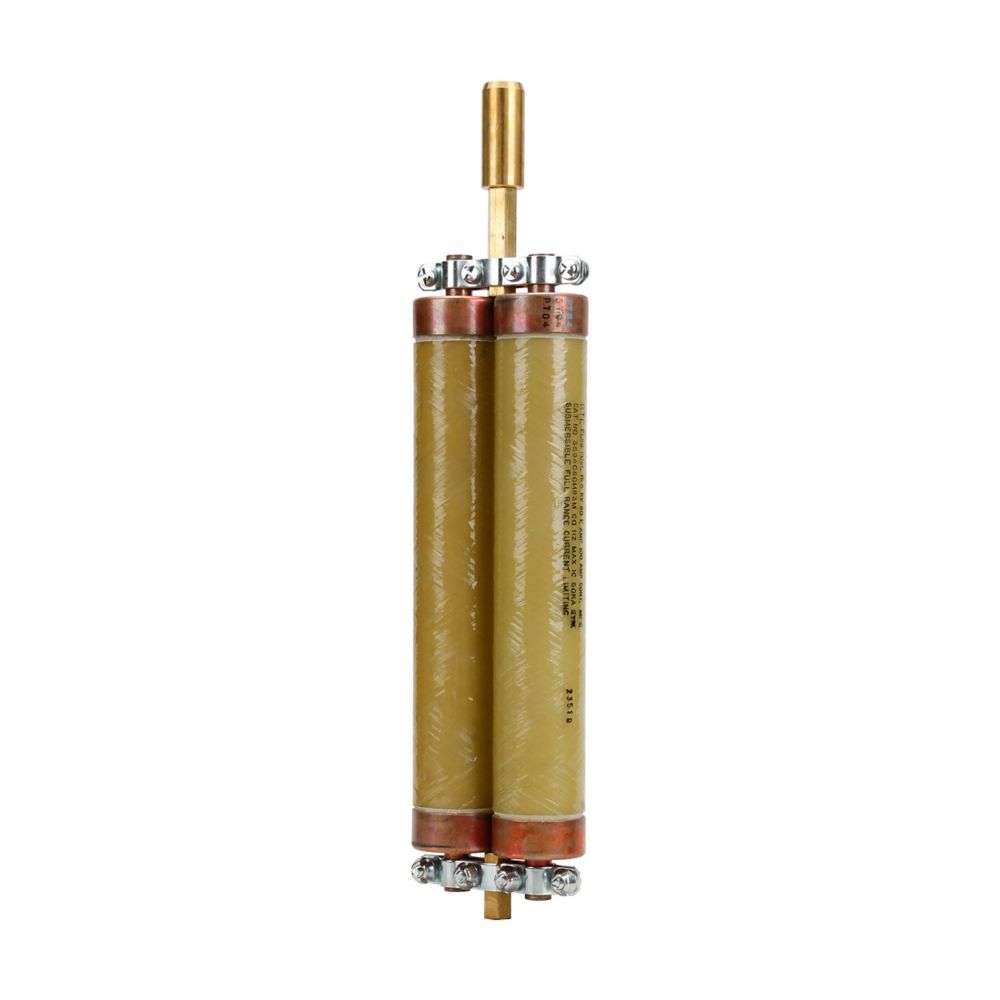

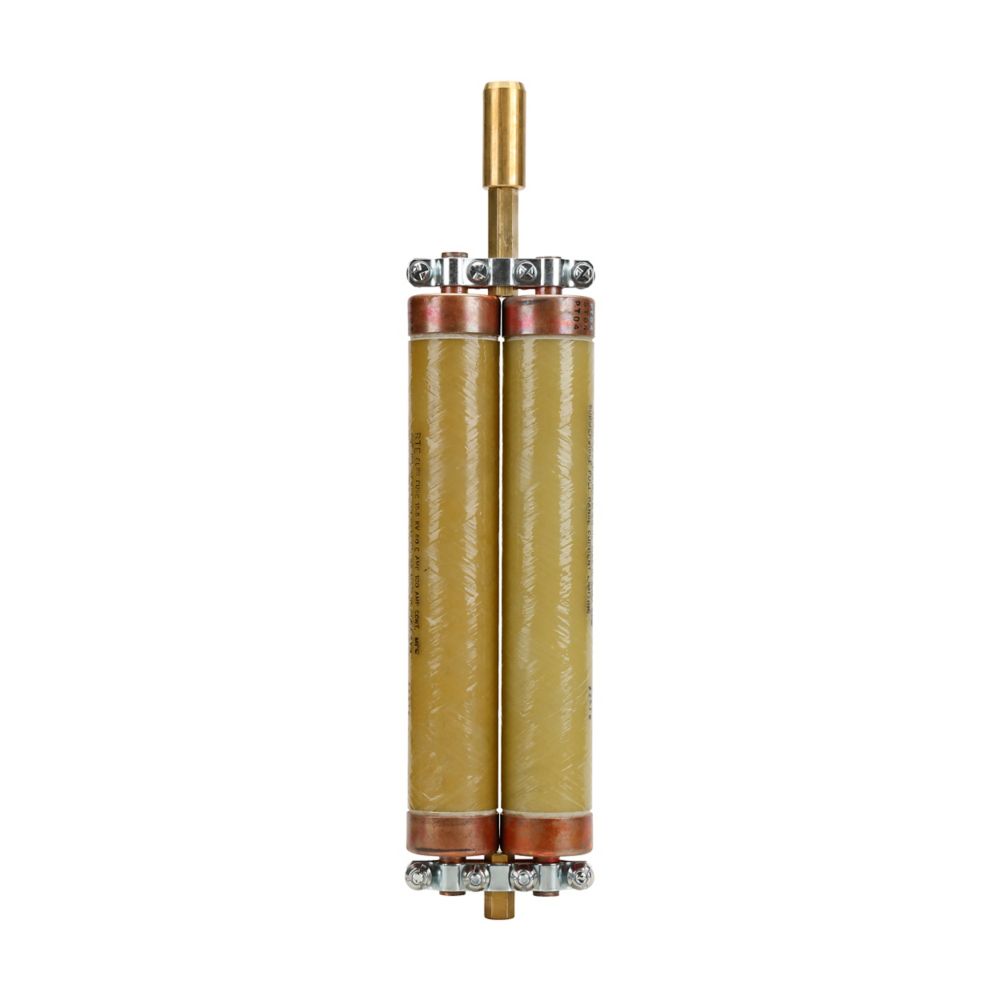

3594120M83M is a 125 ampere, 15.5 kV full-range current limiting fuse from Eaton's ELSG series designed for wet well mounting.
This fuse provides reliable overcurrent protection with a continuous current rating of 125A and a maximum interrupting rating of 20 kA. It features a 2.16 inch diameter and complies with IEEE standards C37.40, C37.41, and C37.46 for medium voltage power distribution applications. The fuse is part of Eaton's Cooper Power series and is suitable for use in electrical systems requiring high interrupting capacity and current limiting performance.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 15.5 kV
- Interrupt Rating: 20,000 A (20 kA)
- Mounting Type: Wet well
- Diameter: 2.16 inches
- Series: ELSG Full-Range Current Limiting Fuse
- Standards: IEEE Std C37.40, C37.41, C37.46 compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 3594120M83M
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting full range fuse
- Voltage : 15500
- Amperage : 120
- Connection : Wet Well
- Diameter : 4.3
- Class Rating : E
- Barrels : 2
Product Data
- UPC : 194006033527
- Dimensions : 19.1 in x 4.3 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 6.173
