Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
3594100M83M

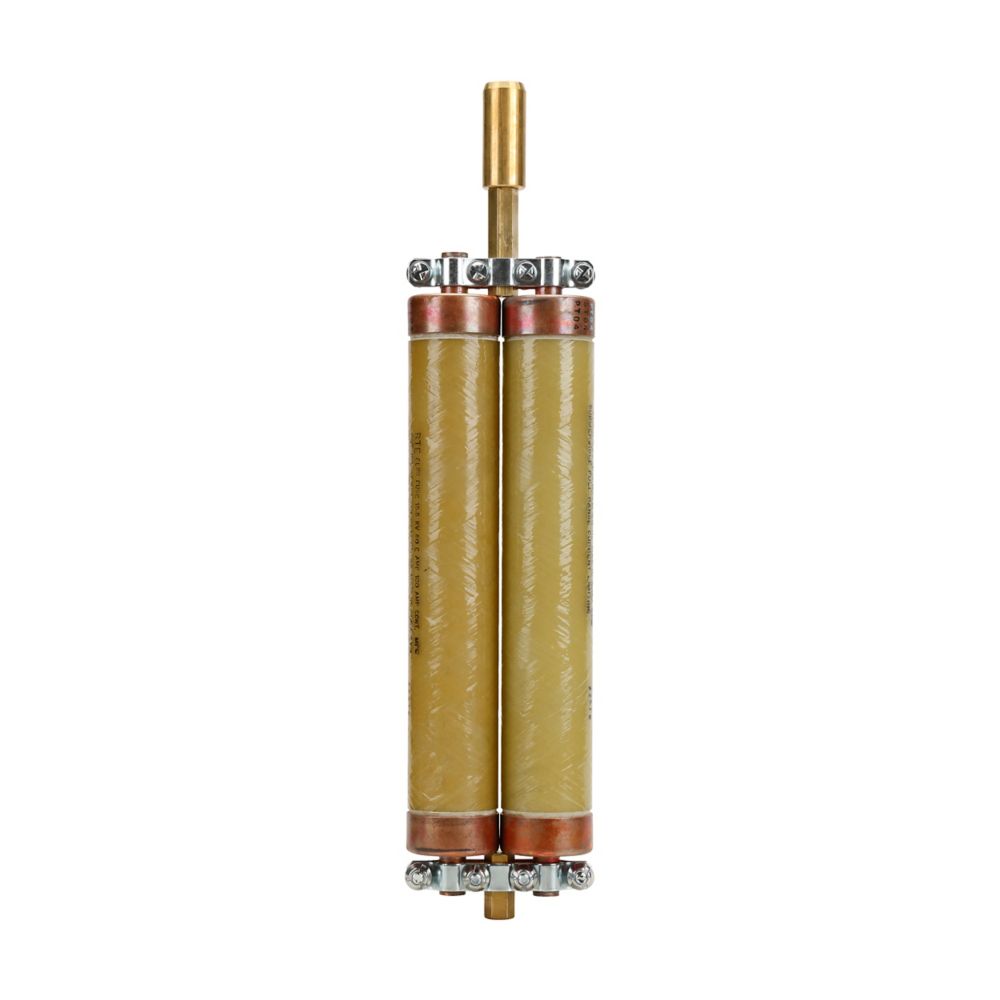

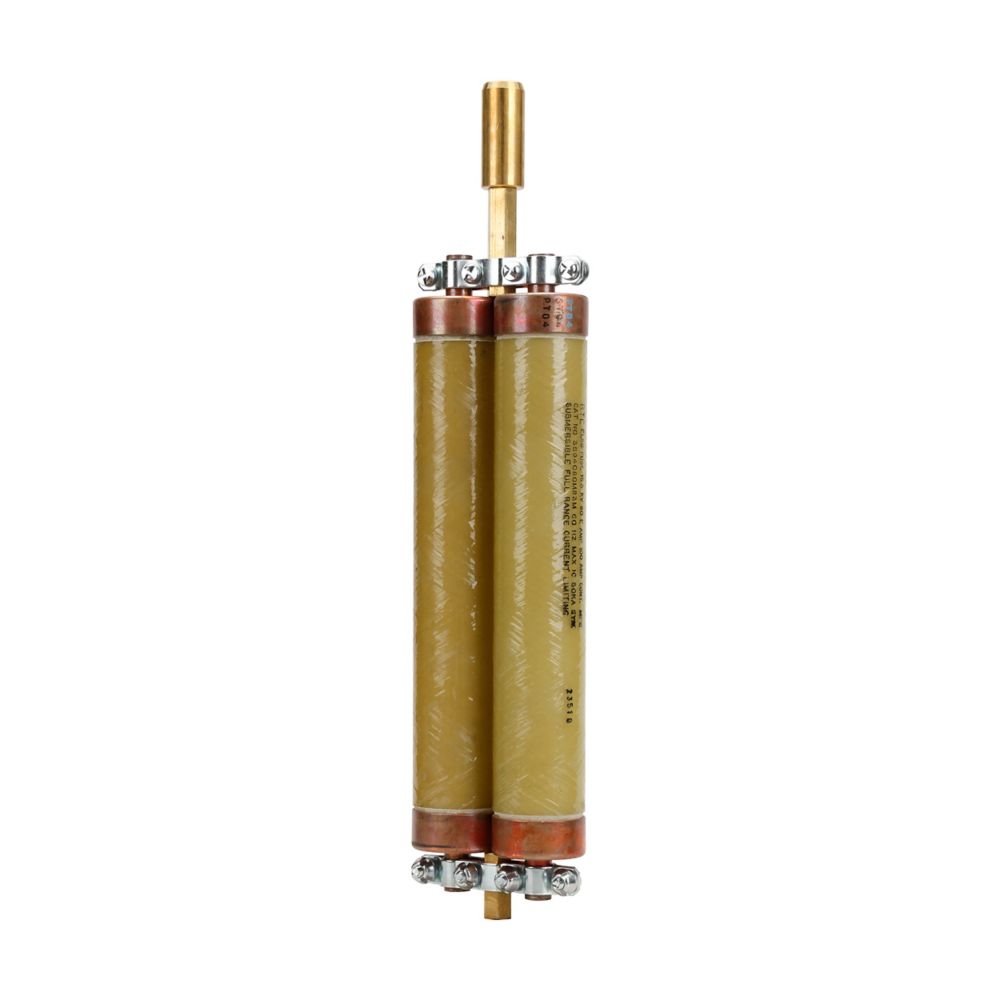

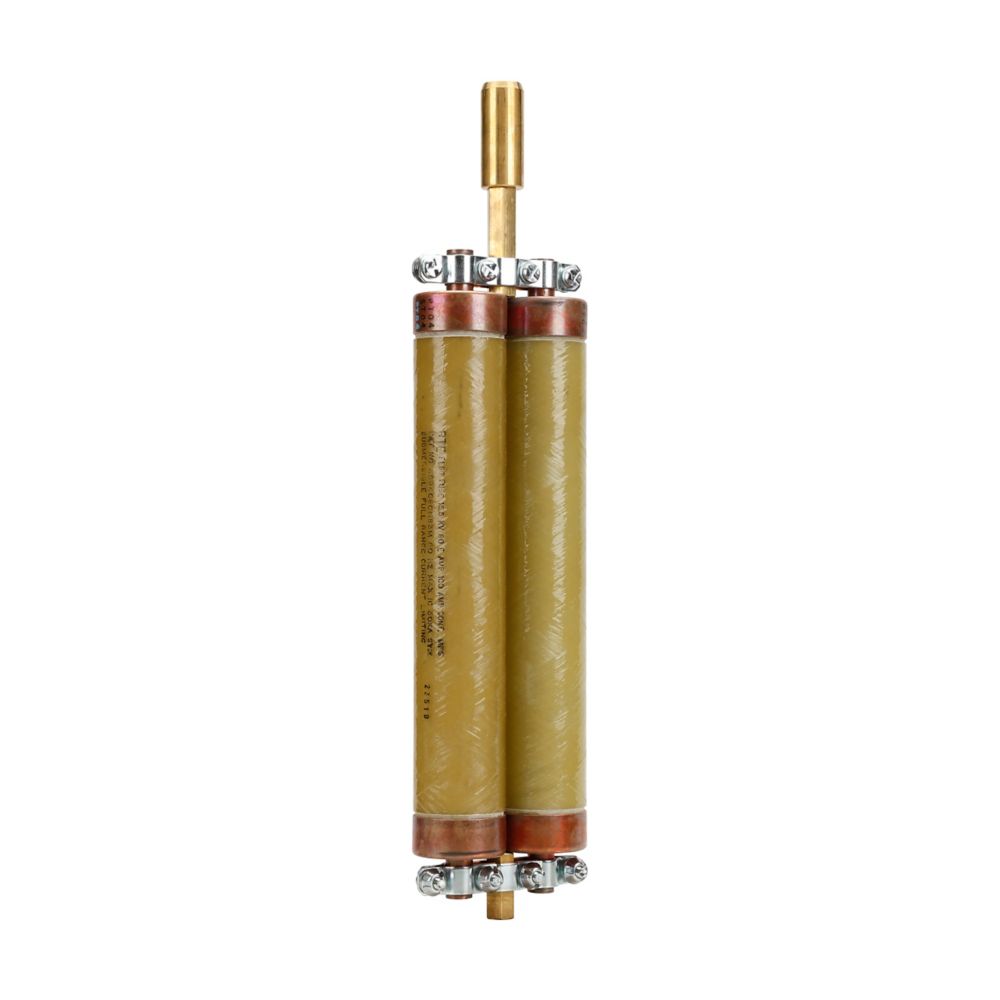

3594100M83M is a medium voltage fuse from Eaton designed for 15.5 kV systems with a 100 ampere rating and double barrel construction.3594100M83M features a durable design suitable for wet well mounting applications, with a 4.3 inch diameter and current-limiting characteristics to protect electrical equipment in medium voltage power distribution.
- Voltage Rating: 15.5 kV
- Current Rating: 100 A
- Construction: Double barrel fuse
- Diameter: 4.3 inches
- Mounting Type: Wet well
- Series: Eaton Cooper Power ELSG
- Interrupt Rating: 20,000 A (typical for 15.5 kV ELSG fuses)
- Standards: Meets IEEE C37.40, C37.41, and C37.46
Specifications
- Part Number: 3594100M83M
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting full range fuse
- Voltage : 15500
- Amperage : 100
- Connection : Wet Well
- Diameter : 4.3
- Class Rating : E
- Barrels : 2
Product Data
- UPC : 194006033510
- Dimensions : 19.1 in x 4.3 in x 2.2 in (Length/Depth x Height x Width)
- Weight : 6.173
