Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
3594025M83M

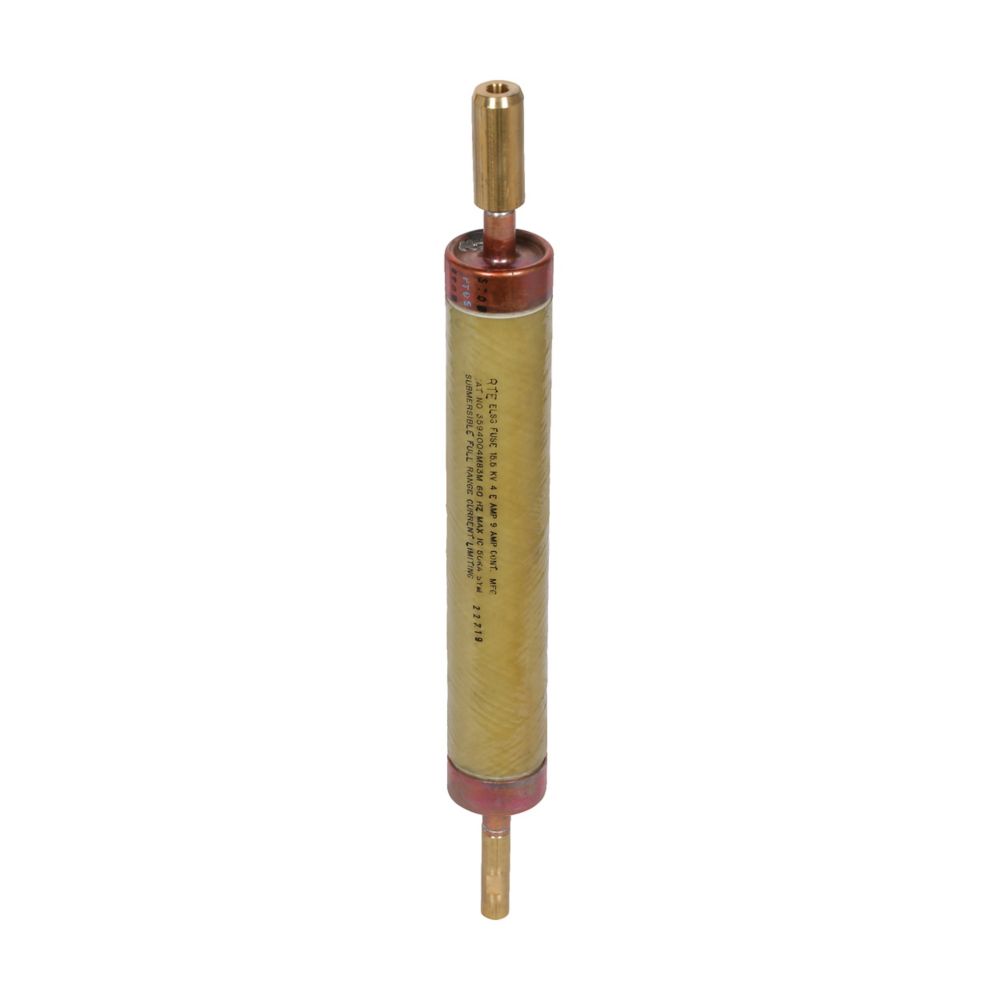

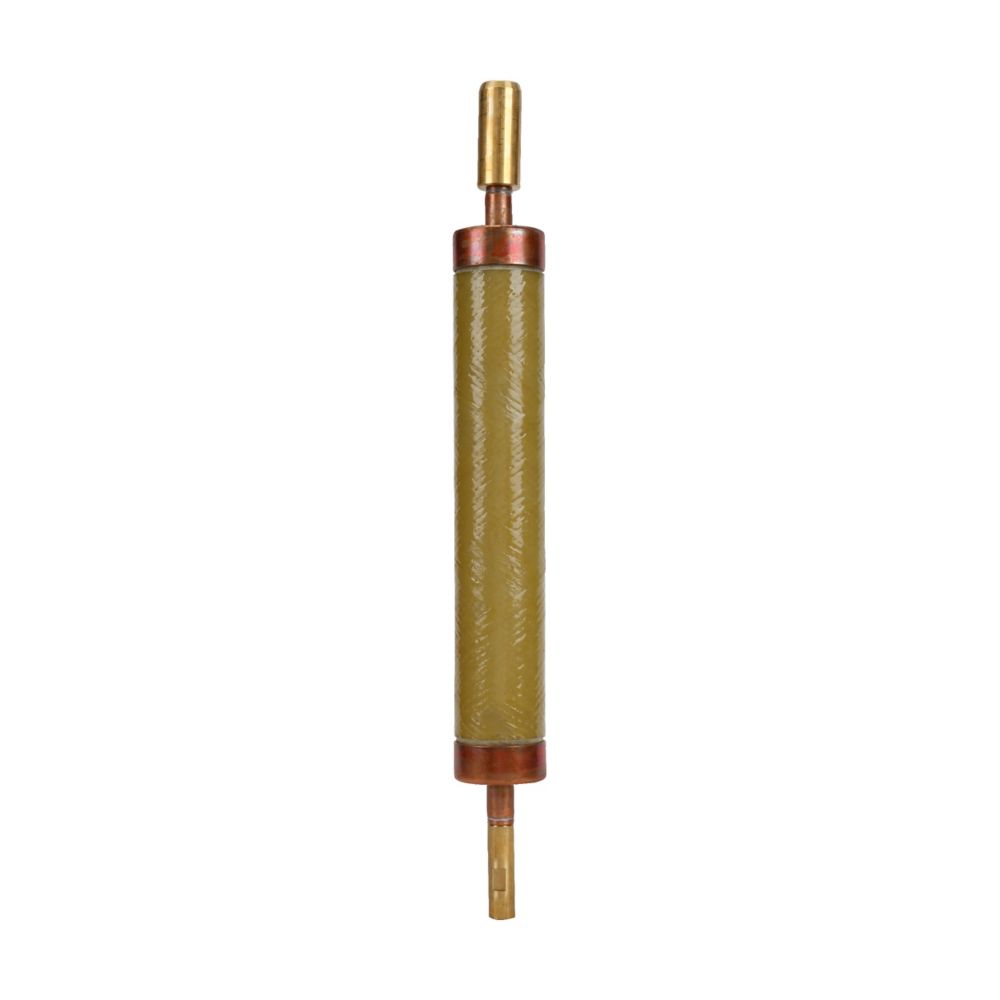

3594025M83M is an Eaton Cooper Power series ELSG full-range current-limiting fuse designed for medium-voltage power distribution systems. This wet well mounted fuse provides reliable overcurrent protection in 15.5 kV AC systems with a 25 ampere continuous current rating and Class E designation. The single-barrel construction features a 2.16 inch diameter and delivers a maximum interrupt current of 50 kA, meeting IEEE standards for current-limiting performance and fault protection.
- Voltage Rating: 15.5 kV AC
- Continuous Current: 25 A
- E-Rating: 25E
- Maximum Interrupt Current: 50 kA
- Fuse Class: ELSG
- Mounting Type: Wet Well
- Barrel Diameter: 2.16 inches
- Series: Cooper Power
- Standards: IEEE C37.40, C37.41, C37.46
- Construction: Single-Barrel
Specifications
- Part Number: 3594025M83M
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting full range fuse
- Voltage : 15500
- Amperage : 25
- Connection : Wet Well
- Diameter : 2.15
- Class Rating : E
- Barrels : 1
Product Data
- UPC : 194006033046
- Weight : 7.2
