2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
3593025M02M

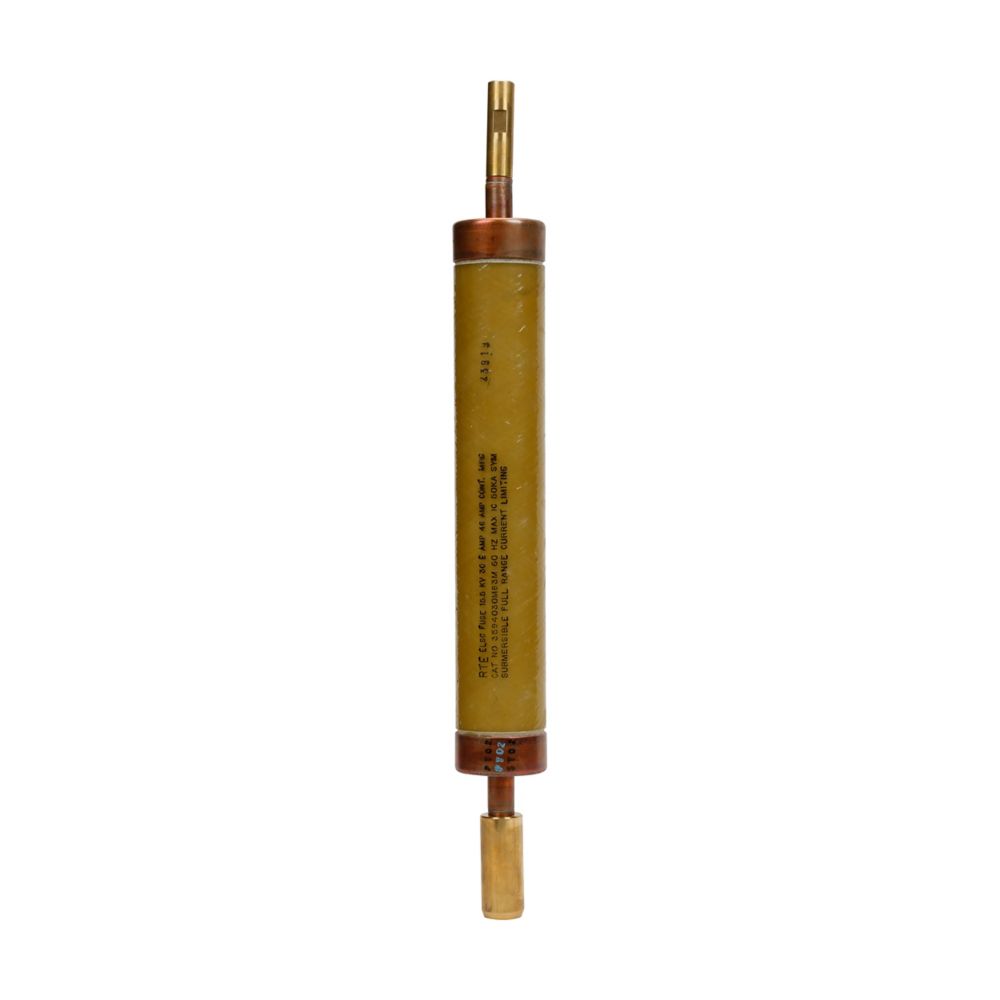

3593025M02M is an Eaton Cooper Power series ELSG current limiting full range fuse designed for medium voltage applications with a wet well mounting.This fuse features a voltage rating of 8.3 kV and a continuous current rating of 25 amperes. It is part of the Class E fuse series, engineered to provide reliable interruption of fault currents with a maximum interrupting current of 50 kA. The fuse has a 2.16 inch diameter and is designed for wet well mounting, ensuring robust performance in medium voltage power distribution systems. It meets IEEE Std. C37.41 certification standards.
- Key Specifications
- Manufacturer: Eaton
- Part Number: 3593025M02M
- Fuse Type: ELSG Current Limiting Full Range
- Voltage Rating: 8.3 kV
- Amperage Rating: 25 A
- Interrupting Current: 50 kA max
- Mounting Type: Wet Well
- Diameter: 2.16 inches
- Series: Cooper Power
- Certifications: IEEE Std. C37.41
- Part Number: 3593025M02M
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting full range fuse
- Voltage : 8300
- Amperage : 25
- Connection : Wet Well
- Diameter : 2.15
- Class Rating : E
- Barrels : 1
- UPC : 194006028370
- Weight : 4.2
