3565018M11M - Eaton 23 kV 18A ELX Full-Range Current-Limiting Fuse 50 kA Interrupt Rating

3565018M11M

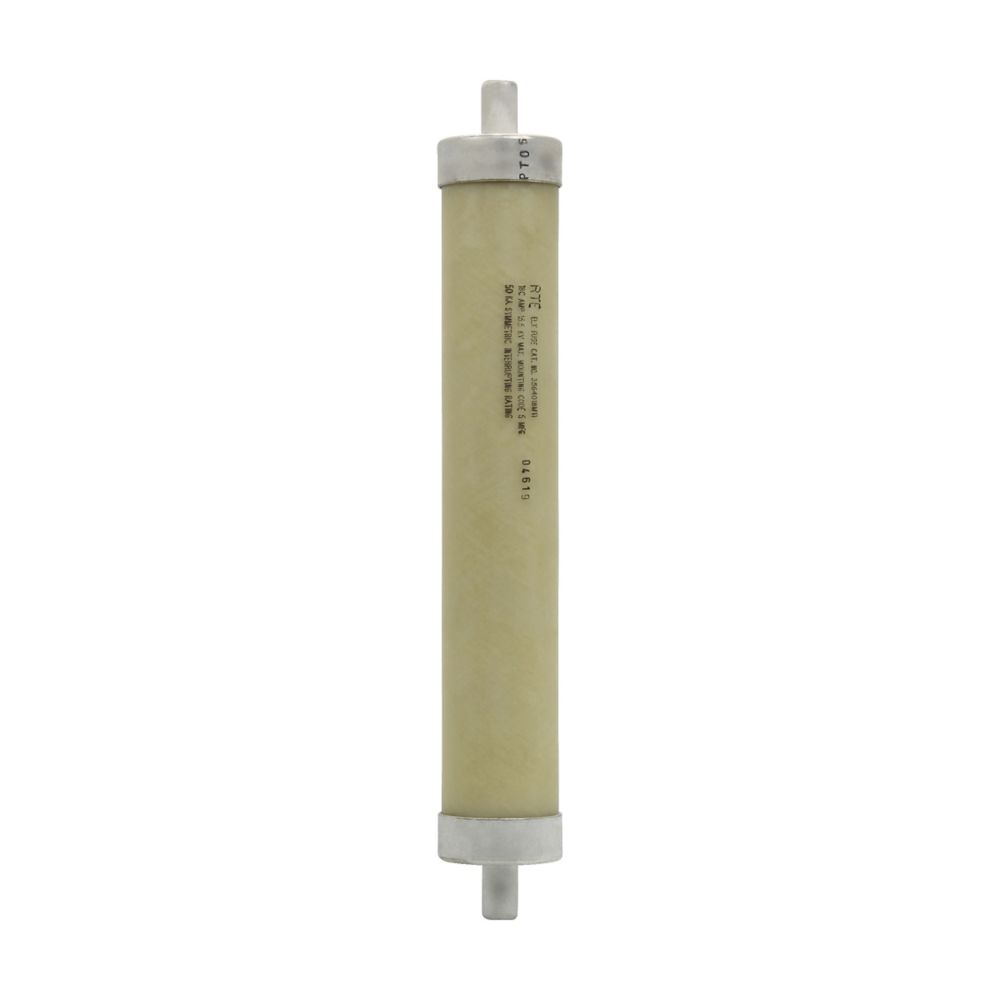

3565018M11M is a medium voltage current-limiting fuse designed for reliable overcurrent protection in industrial and commercial power distribution systems. This Eaton ELX series fuse features a 23 kV voltage rating, 18A current rating, and a 50 kA maximum interrupting rating for robust performance in demanding environments. The fuse is constructed with a fiberglass housing and pure silver element for stable operation under thermal and electrical stress. It is designed for indoor clip mounting and is suitable for use in padmounted equipment, sectionalizing enclosures, metalclad switchgear, and industrial vaults. The 3565018M11M is a full-range current-limiting fuse with a non-indicating design, making it ideal for installations where quiet and safe operation is required. Its industry-standard clip-style mounting ensures compatibility with a wide range of electrical apparatus. The fuse is engineered for consistent melt characteristics and long service life, providing dependable protection for critical power infrastructure.

• Manufacturer: Eaton
• Part Number: 3565018M11M
• Series: ELX
• Amperage: 18A
• Voltage: 23 kV
• Interrupting Rating: 50 kA
• Mounting Type: Indoor Clip
• Terminal Type: Clip
• Indicator Type: Non-indicating
• Diameter: 2.15 in
• Length: 17.21 in
• Material: Fiberglass

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3565018M11M
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Item Subcategory : Medium Voltage
• Section : Current limiting full range fuse
• Voltage : 23000
• Amperage : 18
• Connection : NX
• Diameter : 2
• Class Rating : C
• Barrels : 1

Product Data

• UPC : 194006030595
• Weight : 3.5
