Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
3543150M51M

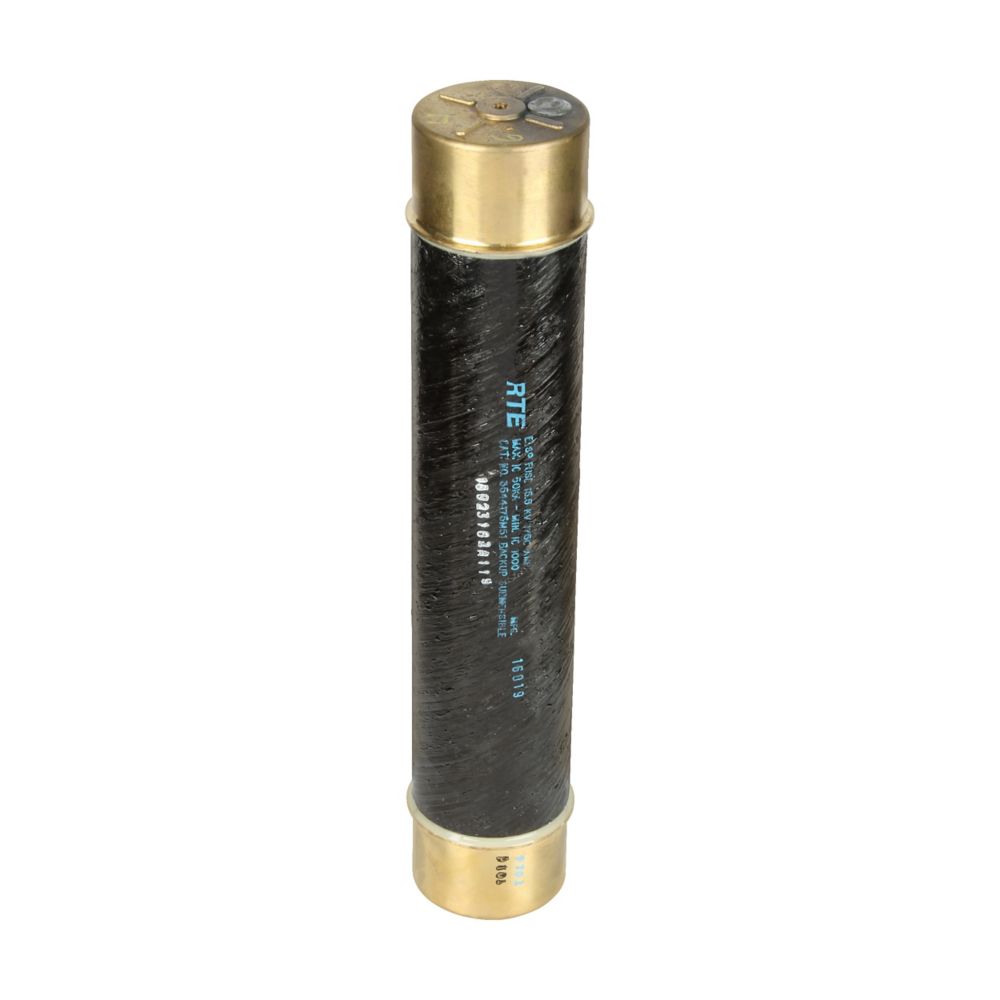

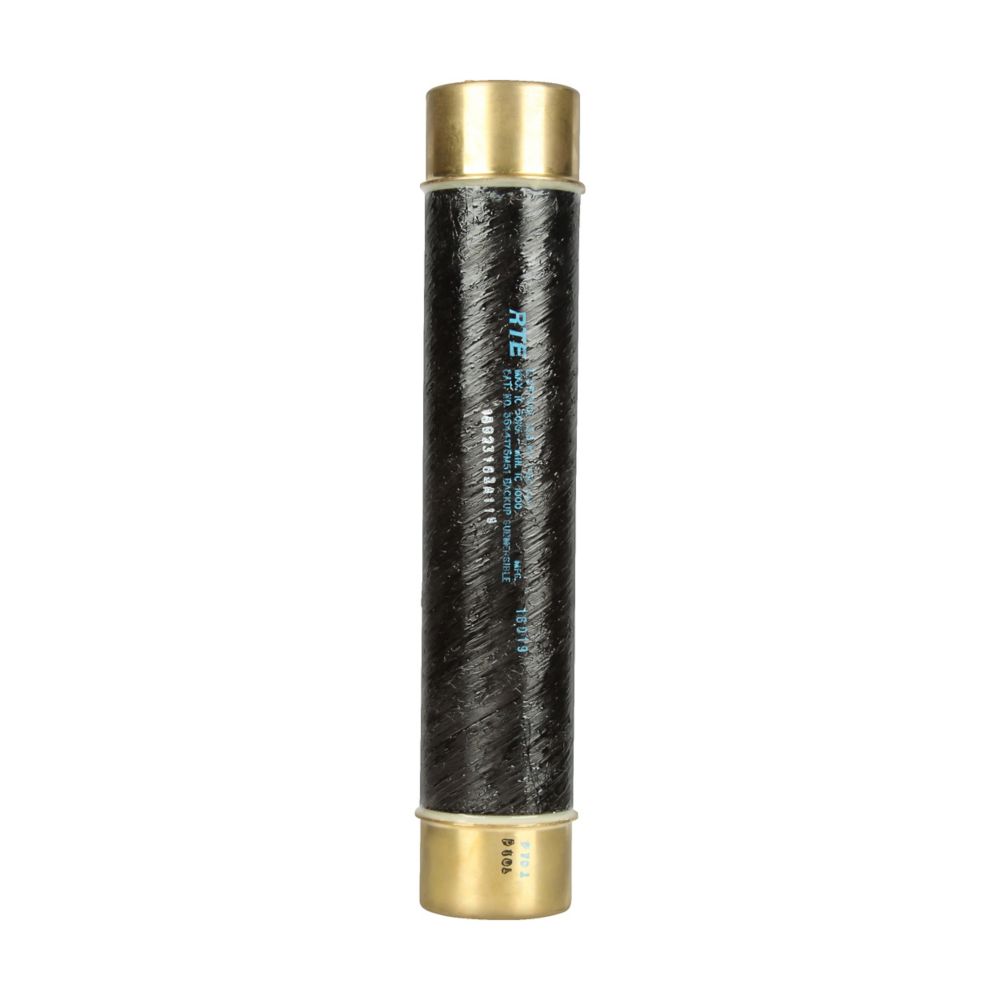

3543150M51M is an Eaton Cooper Power series current limiting backup fuse designed for medium voltage power distribution and transformer protection applications. This under oil fuse delivers reliable overcurrent protection with a compact 3.0 inch diameter design suitable for distribution systems requiring Distribution Class C performance. Specifications: The fuse operates at 8.3 kV with a 150A continuous current rating and provides a maximum interrupt capacity of 50 kA. It features a single-barrel construction and is mounted under oil for enhanced cooling and arc suppression. The fuse is engineered for use in transformer protection devices and distribution networks where current limiting backup protection is essential. Key Specifications
- Voltage Rating: 8.3 kV
- Current Rating: 150A
- Interrupt Capacity: 50 kA maximum
- Class: Distribution C
- Diameter: 3.0 inches
- Mounting: Under oil
- Series: Cooper Power
- Application: Transformer protection and distribution backup
- Construction: Single-barrel current limiting fuse
Specifications
- Part Number: 3543150M51M
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting backup fuse
- Voltage : 8300
- Amperage : 150
- AIC rating : [email protected]
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
- Clip Center : 10.3
Product Data
- UPC : 194006026697
- Weight : 6.1
