Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
3534012M11M

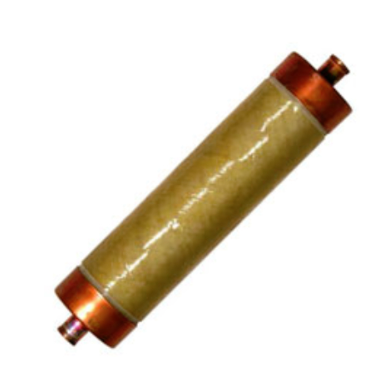

3534012M11M is an Eaton Cooper Power series current limiting full range fuse designed for medium voltage power distribution applications. This fuse provides reliable overcurrent protection with a 15.5 kV voltage rating and 12 A amperage rating, featuring a 2.0 inch diameter construction suitable for distribution systems. The fuse is rated for a maximum interrupting current of 50 kA and meets IEEE Std. C37.41 certification standards for medium voltage applications.
- Voltage Rating: 15.5 kV
- Amperage Rating: 12 A
- Maximum Interrupting Current: 50 kA
- Fuse Type: ELS (full-range current-limiting)
- Fuse Rating: Distribution C
- Product Diameter: 2.0 inch
- Product Height: 18.8 inch
- Product Weight: 3.9 lb
- Mounting Option: EL Bay-O-Net
- Certification: IEEE Std. C37.41
- Without Indicator
Specifications
- Part Number: 3534012M11M
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Voltage : 15500
- Amperage : 12
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
Product Data
- Weight : 5
