2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage
Description
3533012M11M

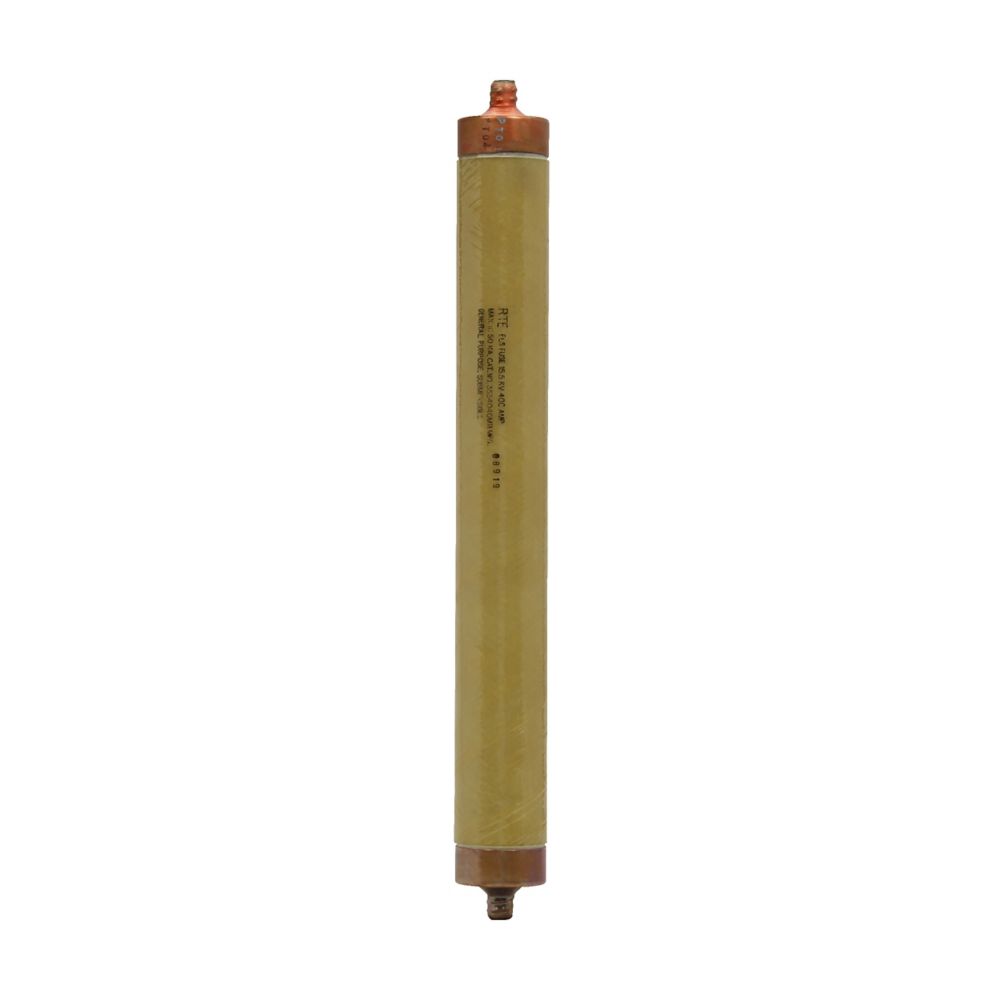

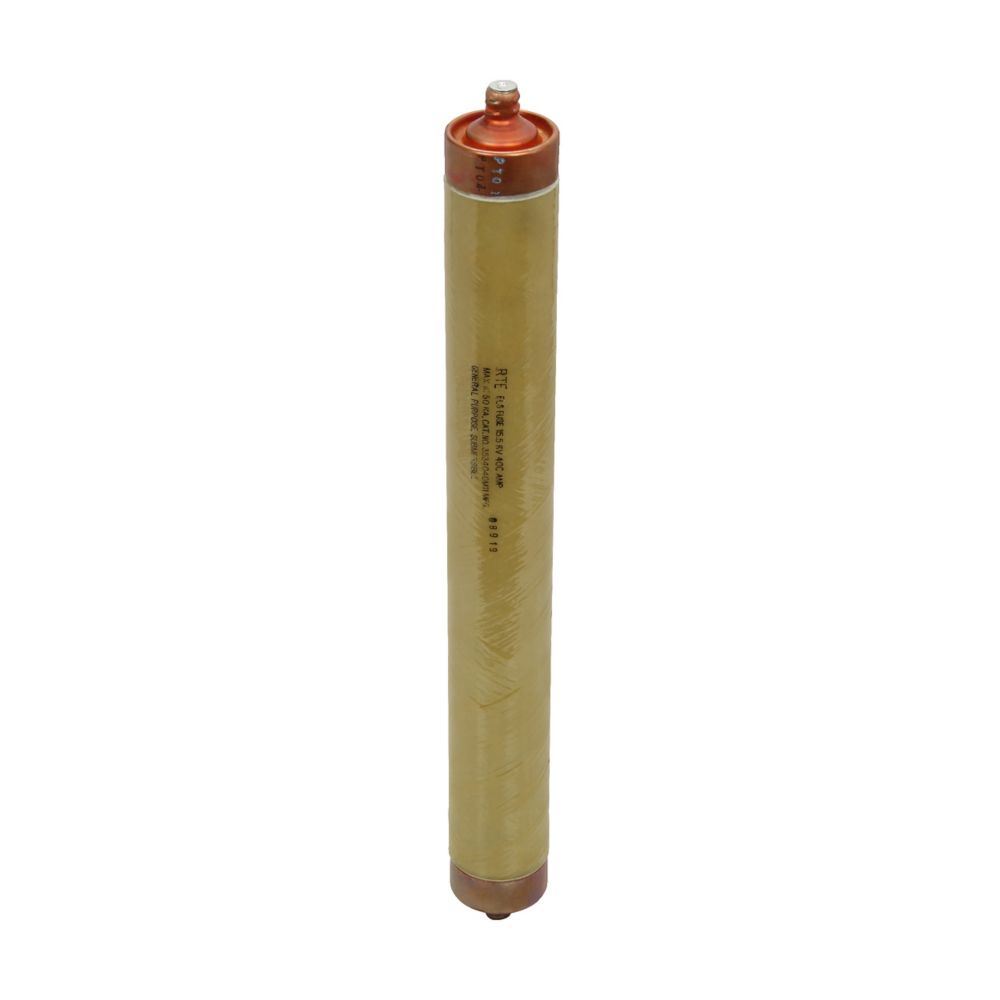

3533012M11M is an Eaton Cooper Power series current limiting full range fuse designed for medium voltage power distribution applications.This fuse features a 12 ampere rating and an 8.3 kV voltage rating with a maximum interrupting current of 50 kA. It is part of the Distribution C fuse rating category and uses the ELS fuse type. The fuse is mounted using the EL Bay-O-Net mounting option and complies with IEEE Std. C37.41.
- Key Specifications
- Amperage Rating: 12 A
- Voltage Rating: 8.3 kV
- Interrupting Current - Max: 50 kA
- Fuse Type: ELS
- Fuse Rating: Distribution C
- Mounting Option: EL Bay-O-Net
- Certifications: IEEE Std. C37.41
- Product Diameter: 2.1 inches
- Product Height: 10.75 inches
- Product Weight: 2.2 lb
- Part Number: 3533012M11M
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
- Item Subcategory : Medium Voltage
- Section : Current limiting full range fuse
- Voltage : 8300
- Amperage : 12
- Connection : Special
- Diameter : 2
- Class Rating : C
- Barrels : 1
- UPC : 194006030083
- Weight : 2.2
