3533008M11M - Eaton Cooper Power Series 8A 8.3kV Medium Voltage Current Limiting Fuse

3533008M11M

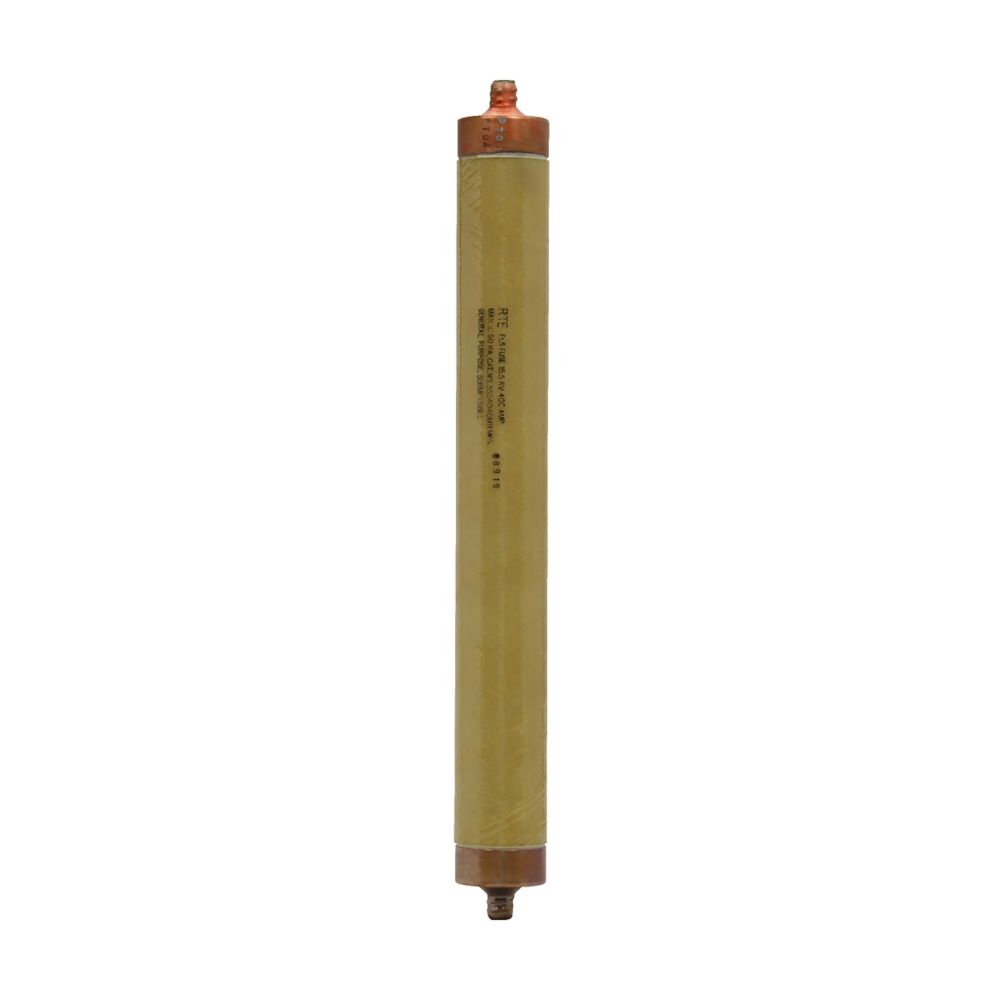

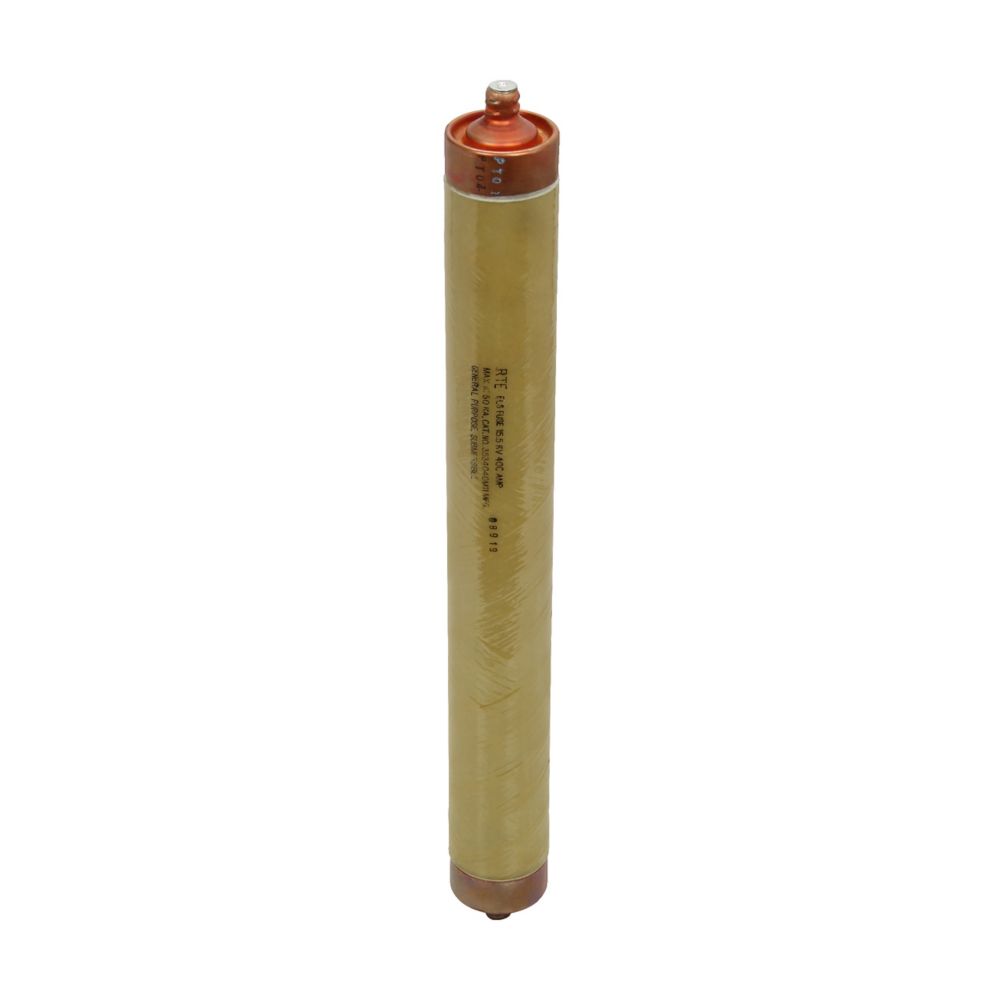

3533008M11M is an Eaton Cooper Power series current-limiting full-range medium voltage fuse designed for distribution applications. This fuse provides reliable circuit protection in medium voltage power systems with a compact, efficient design suitable for indoor clip mounting installations.Technical Description

The 3533008M11M is a Distribution Class C, ELS-type fuse engineered for 8.3 kV systems with an 8 ampere rating. It features a single-barrel construction with a 2.0 inch diameter and 10.75 inch height, weighing 2.2 pounds. The fuse utilizes a mica spider support system that provides stable winding support without generating excessive gas and pressure buildup during operation. With a maximum interrupting current rating of 50 kA, this fuse meets IEEE Std. C37.41 certification standards and is designed without an indicator for streamlined installation.

• Catalog Number: 3533008M11M
• Voltage Rating: 8.3 kV AC
• Amperage Rating: 8 A
• Fuse Type: ELS (full-range current-limiting)
• Fuse Class: Distribution C
• Maximum Interrupting Current: 50 kA
• Mounting Option: EL Bay-O-Net
• Product Diameter: 2.0 inches
• Product Height: 10.75 inches
• Product Weight: 2.2 pounds
• Certifications: IEEE Std. C37.41
• Warranty: 1 year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 3533008M11M
• Manufacturer : Eaton
• Brand : Eaton
• Category : Fuse
• Item Subcategory : Medium Voltage
• Section : Current limiting full range fuse
• Voltage : 8300
• Amperage : 8
• Connection : Special
• Diameter : 2
• Class Rating : C
• Barrels : 1

Product Data

• UPC : 194006030069
• Weight : 2.2
