2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Magnetic Coil
Description
3109140038

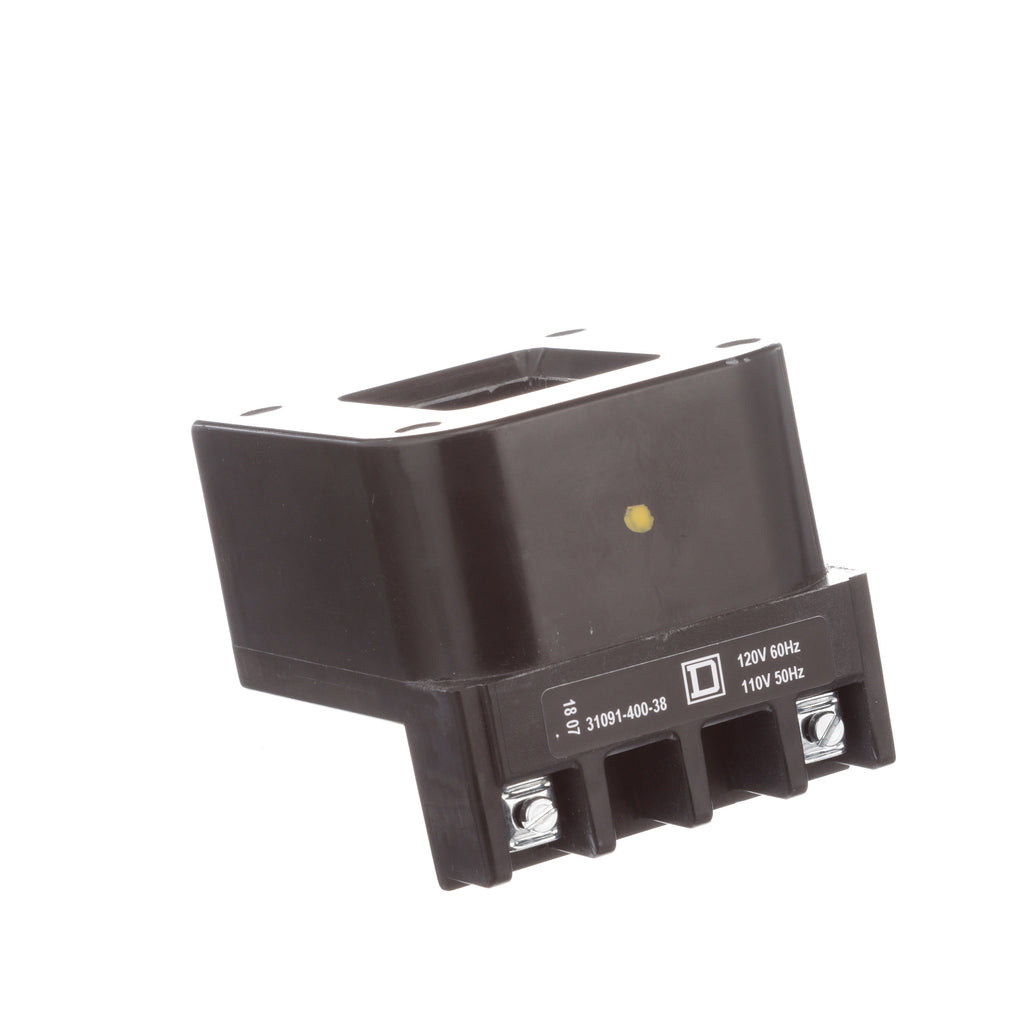

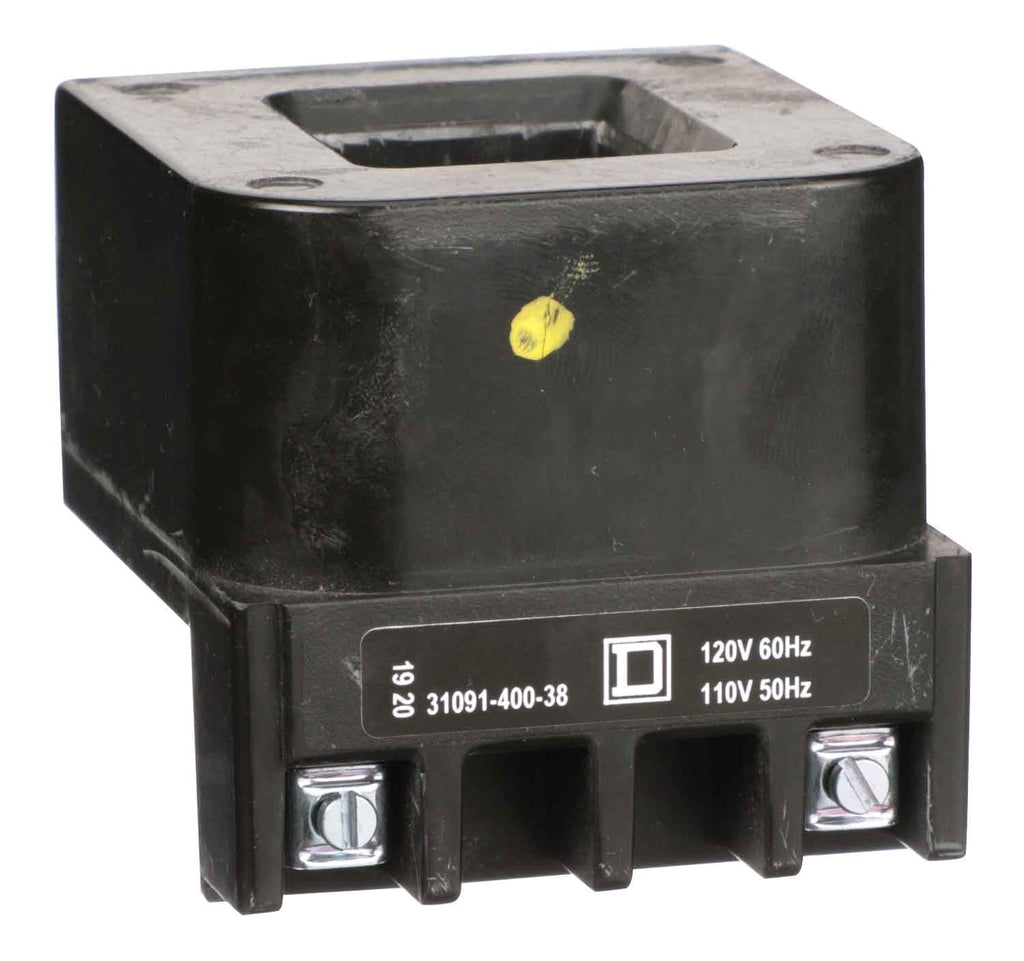

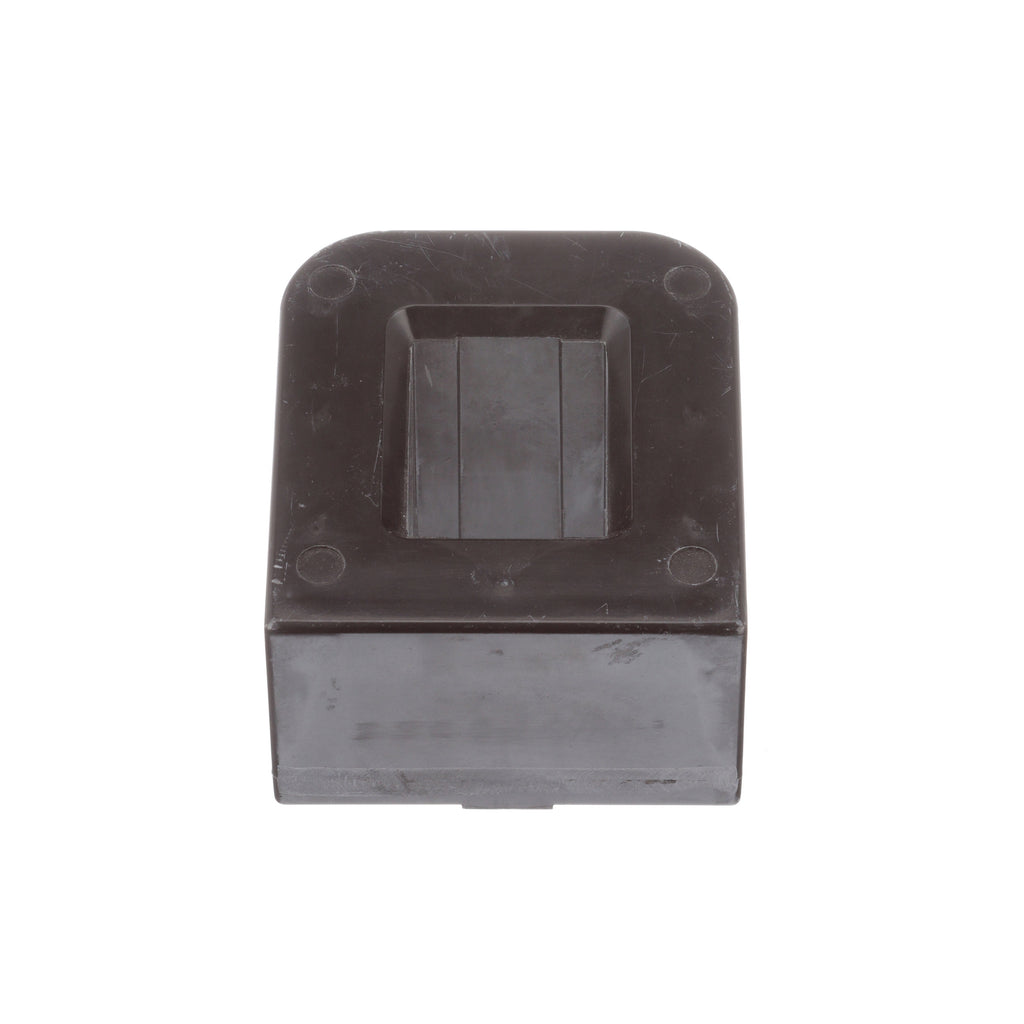

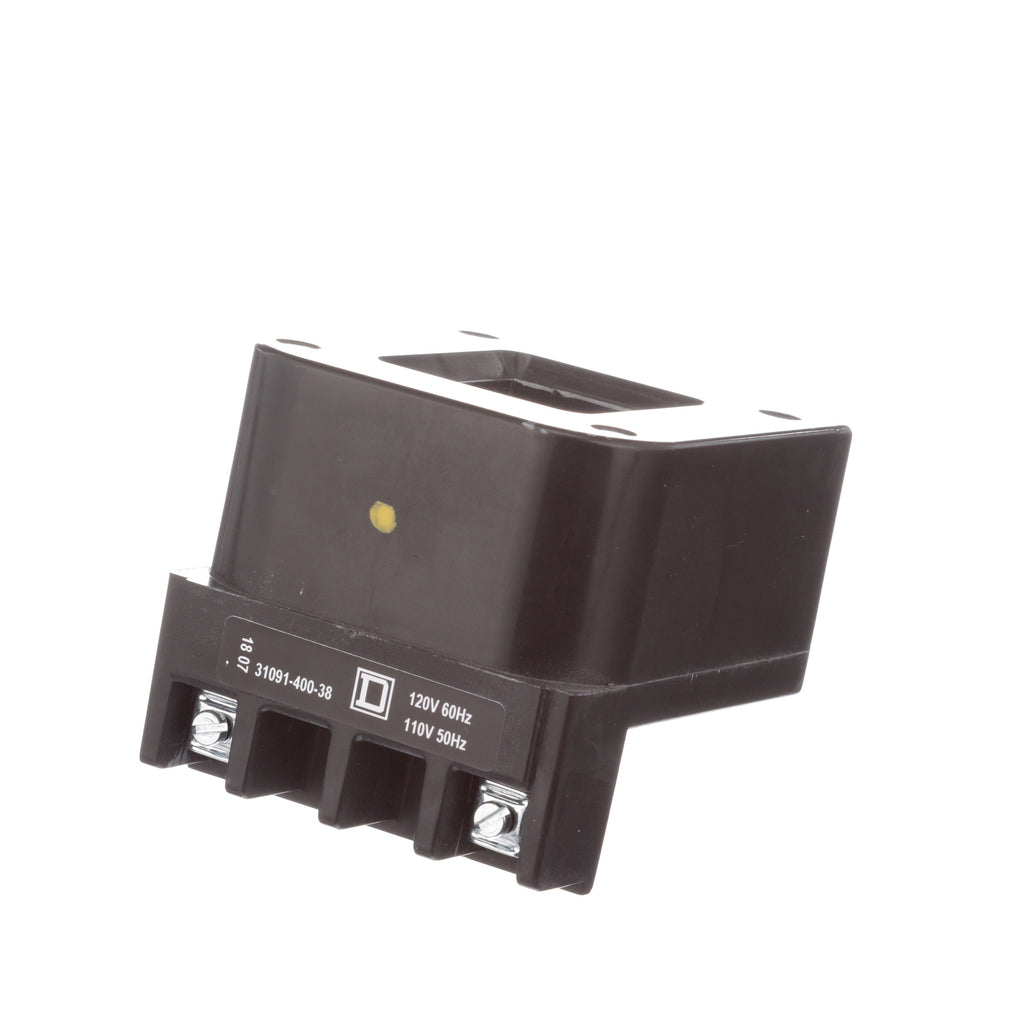

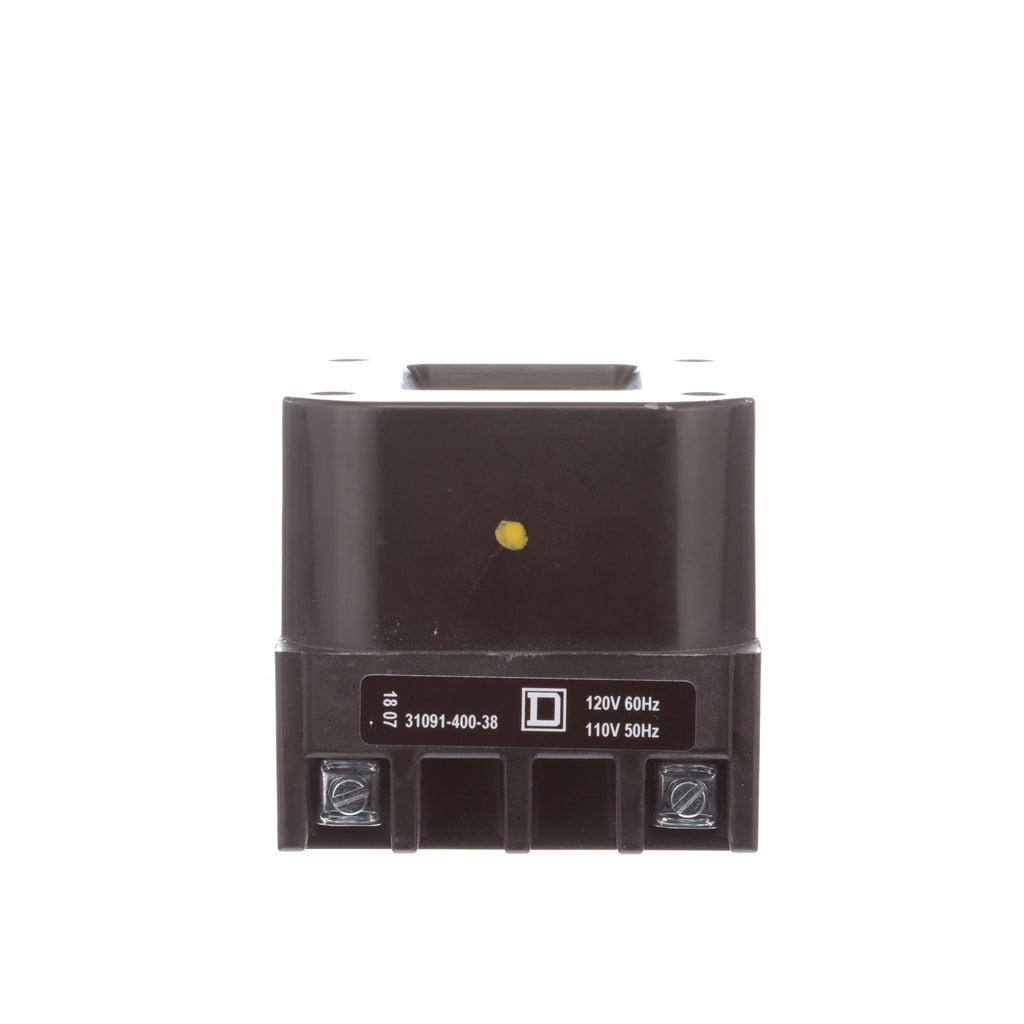

3109140038 is a Square D replacement coil designed for motor control applications with a 120V AC voltage rating and 100A amperage capacity.This Square D coil features direct mounting and is compatible with NEMA Size 4 contactors. It operates at 110-115V AC at 50 Hz and 120V AC at 60 Hz, with an average consumption of 85-89 VA. The coil supports through all poles and is UL and CSA approved, ensuring reliable performance and safety compliance.
- Manufacturer: Square D
- Part Number: 3109140038
- Voltage Rating: 120 V AC
- Amperage Rating: 100 A
- Mounting Type: Direct Mount
- Contactor Type: NEMA Size 4
- Average Consumption: 85-89 VA
- Dimensions: 2.87" H x 2.56" W x 2.47" D
- Connection Type: Screw Lamp
- Certifications: UL, CSA
- Compatible with multiple NEMA contactor series
Specifications
- Part Number: 3109140038
- Manufacturer : Square D
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Frequency : 50/60 Hz
Product Data
- UPC : 785901093138
- Country of Origin : Mexico
- Dimensions : 65 mm x 73 mm
- Weight : 126 lb
