3104140060 - Square D 480 VAC Replacement Coil for NEMA Size 00, 0 and 1 Motor Starters

3104140060

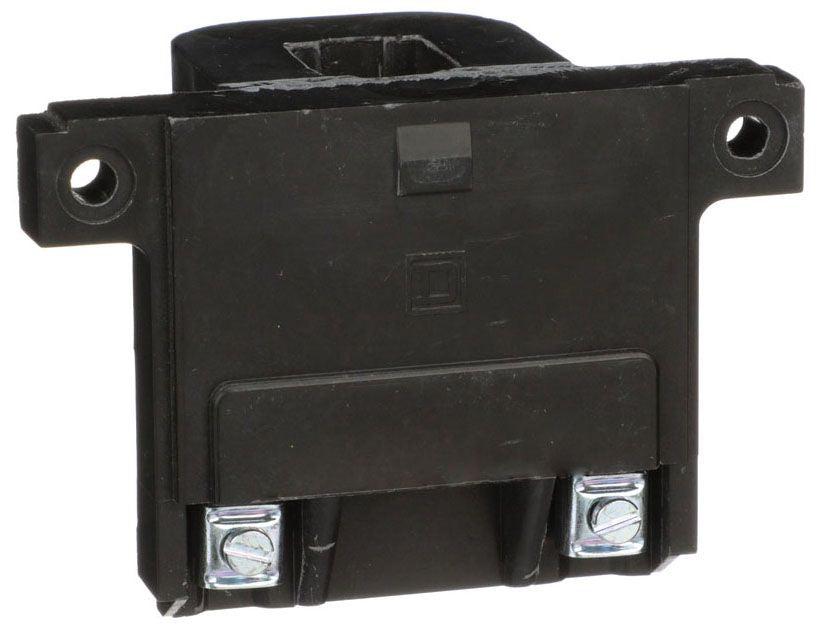

3104140060 is a Square D replacement coil designed for use with NEMA Size 00, 0, and 1 motor starters and lighting contactors at 440/480 VAC 50/60 Hz.This fully encapsulated coil features screw clamp connections and is compatible with Type S contactors and starters including models 8502SA, 8502SB, 8502SC, 8536SA, 8536SB, 8536SC, and 8903SM lighting contactors. It has an inrush power of 245 VA and an average sealed consumption of 27 VA, providing reliable operation in motor control applications.

Key Specifications
• Voltage Rating: 440/480 VAC, 50/60 Hz
• Application: Replacement coil for motor starters and lighting contactors
• Compatible Starter Sizes: NEMA Size 00, 0, and 1
• Compatible Models: 8502SA/B/C, 8536SA/B/C, 8903SM
• Inrush Power: 245 VA
• Average Sealed Consumption: 27 VA
• Coil Dimensions: Height 54.7 mm, Width 81.5 mm, Depth 48.3 mm
• Connection Type: Screw clamp
• Coil Construction: Fully encapsulated
• Manufacturer: Square D (Schneider Electric)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: 3104140060
• Manufacturer : Square D
• Brand : Square D
• Category : Motor Control
• Item Subcategory : Magnetic Coil
• Voltage : 240
• Amperage : 1200
• Phase : 1
• Poles : 2
• AIC rating : 50kA@480V
• Connection : Bolt-On
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Coil Voltage Maximum : 480 VAC
• Nema Starter Size : 1
• Protection : Solid State



Product Data

• UPC : 785901093138
• GTIN : 785901093138
• Country of Origin : Mexico
• Dimensions : 3.21 in (81.5 mm) x 2.15 in (54.7 mm)
• Weight : 1 lb
