Product Info
- Manufacturer:Square D
- Sub-Category:Magnetic Coil
Description
3104140042

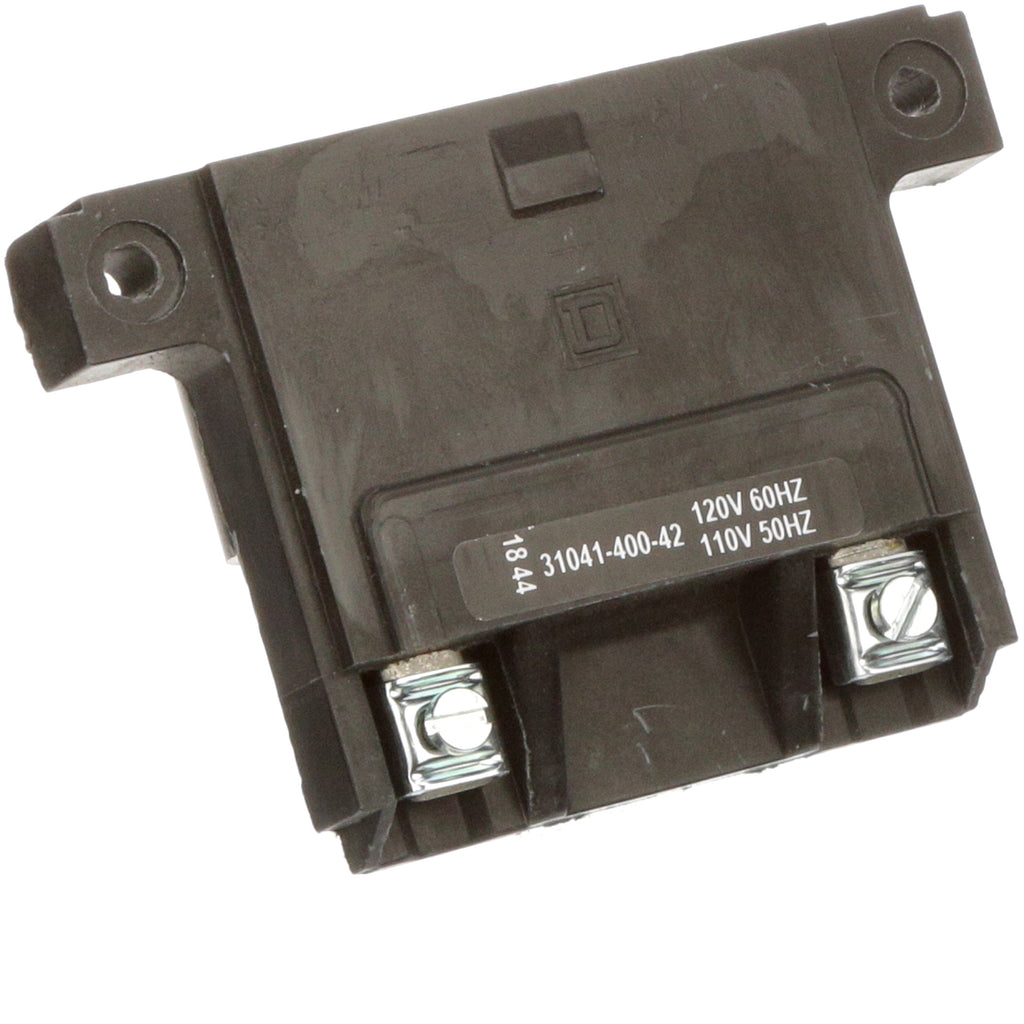

3104140042 is a Square D magnetic coil designed for motor control applications, compatible with NEMA Size 0 and 1 starters.
This coil operates at 110/120 VAC with a frequency of 50/60 Hz and has an inrush power rating of approximately 232-245 VA and sealed power consumption around 26-27 VA. It fits Class 8536 Type SA (Series A)/SB/SC and Class 8502 Type starters, providing reliable magnetic operation for motor control circuits.
- Key Specifications
- Amperage: 30 Amp coil rating
- Voltage: 110/120 VAC
- Frequency: 50/60 Hz
- Inrush Power: ~232-245 VA
- Sealed Power Consumption: ~26-27 VA
- Compatible Starters: Class 8536 SA/SB/SC and Class 8502
- NEMA Starter Sizes: 00, 0, 1
- Mounting Type: Magnetic Coil for motor starters
- Operating Temperature: 40°C ambient
- Weight: Approx. 0.43 lbs
- Part Number: 3104140042
- Manufacturer : Square D
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Magnetic Coil
- Coil Voltage Maximum : 120 VAC
- Nema Starter Size : 1
- UPC : 785901229124
- GTIN : 785901229124
- Country of Origin : Mexico
- Weight : 0.5 lb
