Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Fuse Block
Description
30351R

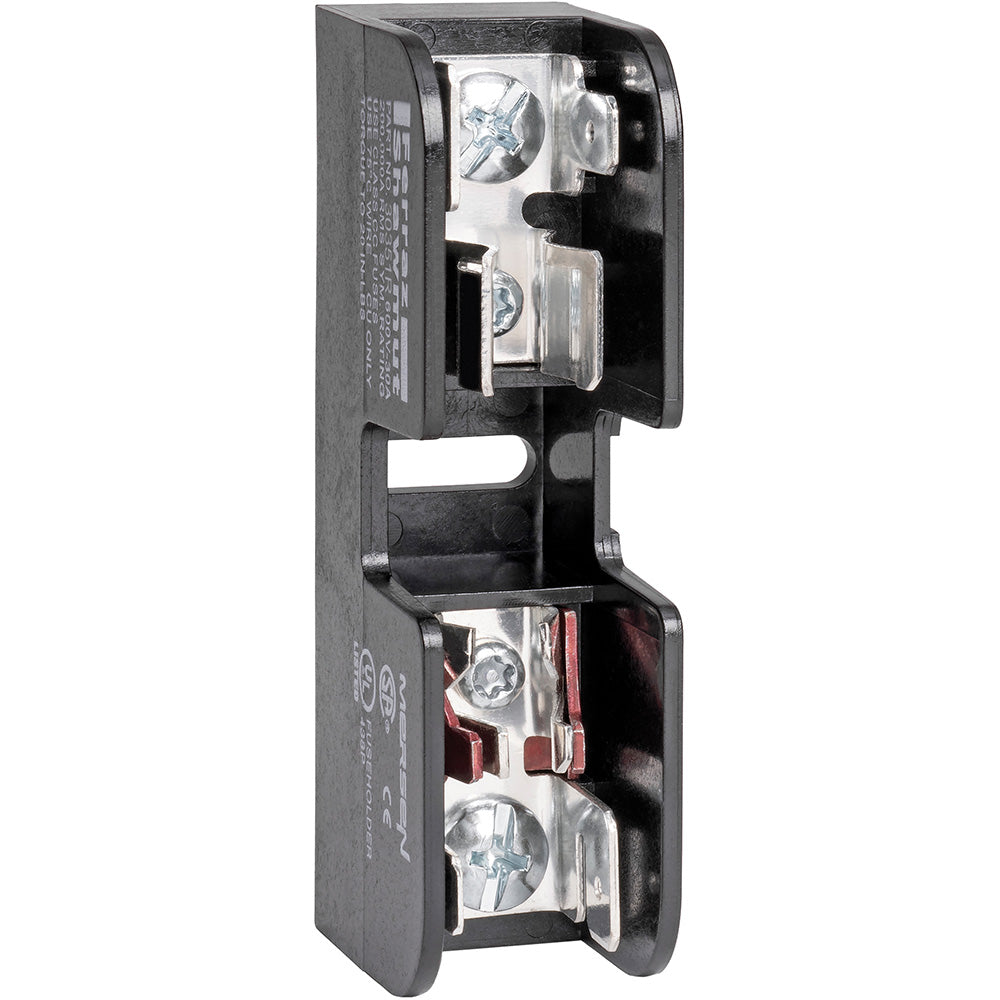

30351R is a 30 Amp, 600 Volt AC/DC Class CC fuse block with 1 pole and copper box lugs designed for clip-in fuse installation.30351R features a glass filled polycarbonate body, supports wire sizes 14 to 6 AWG copper, and is rated for 200 kA interrupting capacity. It mounts via screw or DIN rail and is UL and CSA approved for reliable electrical protection.
- Amperage: 30 A
- Voltage Rating: 600 V AC/DC
- Number of Poles: 1
- Fuse Class: Class CC
- Mounting Type: Screw Mount or DIN Rail
- Interrupt Rating: 200 kA SCCR
- Wire Range: 14 to 6 AWG Copper
- Body Material: Glass Filled Polycarbonate
- Fuse Installation: Clip-in
- Terminal Type: Copper Box Lug
- Certifications: UL 4248, CSA
Specifications
- Part Number: 30351R
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 303
- Voltage : 600
- Amperage : 30
Product Data
- UPC : 78200166362
- GTIN : 00782001663629
- Country of Origin : Mexico
- Dimensions : 0.85 in x 3.04 in x 1.31 in
- Weight : 5
