30322R - Ferraz Shawmut 30A 600V 2-Pole Class CC Fuse Block Pressure Plate Double Quick Connect

30322R

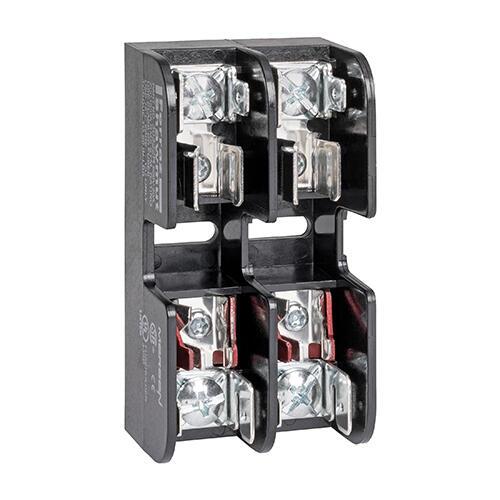

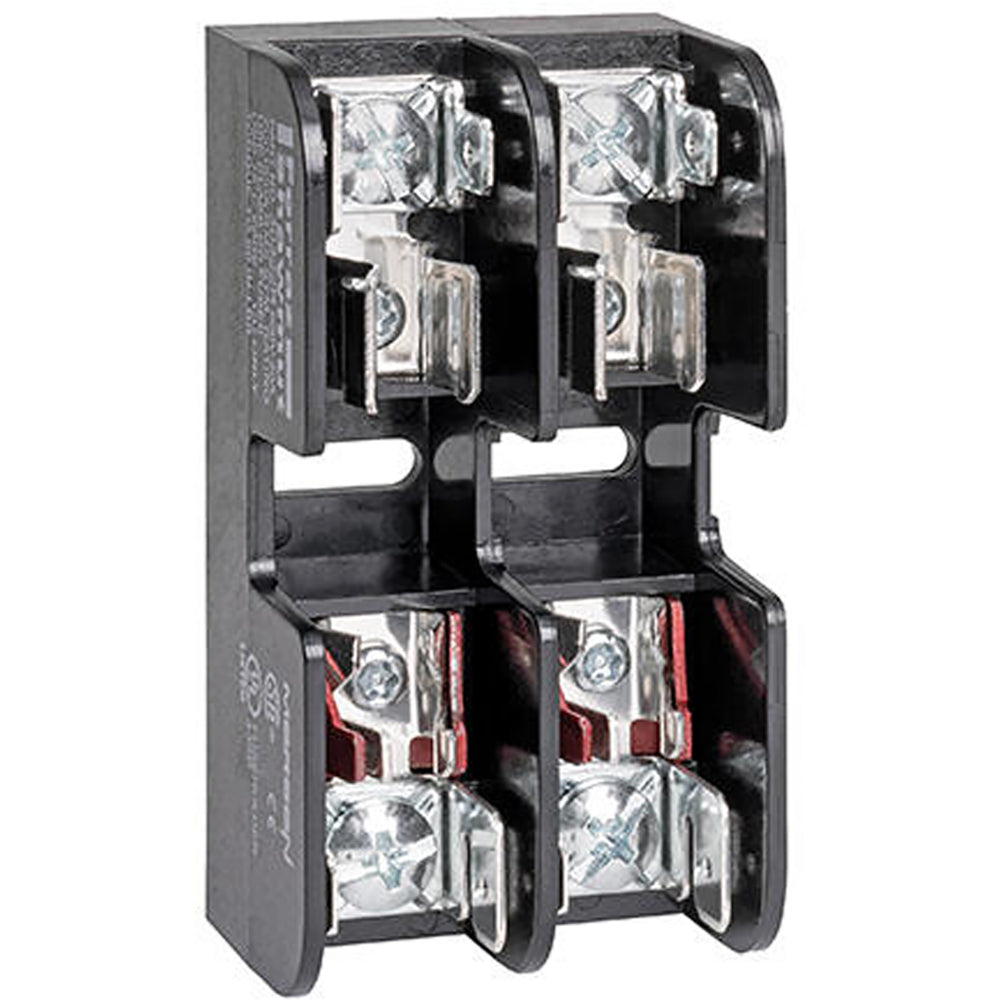

30322R is a 2-pole Class CC fuse block by Ferraz Shawmut designed for 30 amps and 600 volts AC/DC applications.30322R features a pressure plate with double quick connects at both ends, suitable for 14 to 10 AWG copper wire. It supports Class CC midget fuses sized 1-1/2 inch by 13/32 inch and has an interrupting rating of 200,000 AIC RMS AC and 10,000 A DC when using quick connect terminals. The fuse block is constructed with a glass-filled polycarbonate body and is UL and CSA certified for safety and reliability.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600 VAC/VDC
• Poles: 2
• Fuse Class: CC (Midget)
• Mounting Type: Screw Mount or DIN Rail
• Interrupt Rating: 200,000 AIC RMS AC, 10,000 A DC
• Wire Range: Copper #14-10 AWG
• Connector Type: Pressure Plate with Double Quick Connects
• Material: Glass-Filled Polycarbonate
• Fuse Size: 1-1/2 inch length, 13/32 inch diameter
• Certifications: UL 4248, CSA
• Torque Rating: 20 lb-in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: 30322R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Fuse Block
• Type : 303
• Amperage : 30

Product Data

• UPC : 078200175040
• GTIN : 00782001750404
• Country of Origin : Mexico
• Dimensions : 1.60 in x 3.04 in x 1.31 in
• Weight : 0.23
