Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
30321R

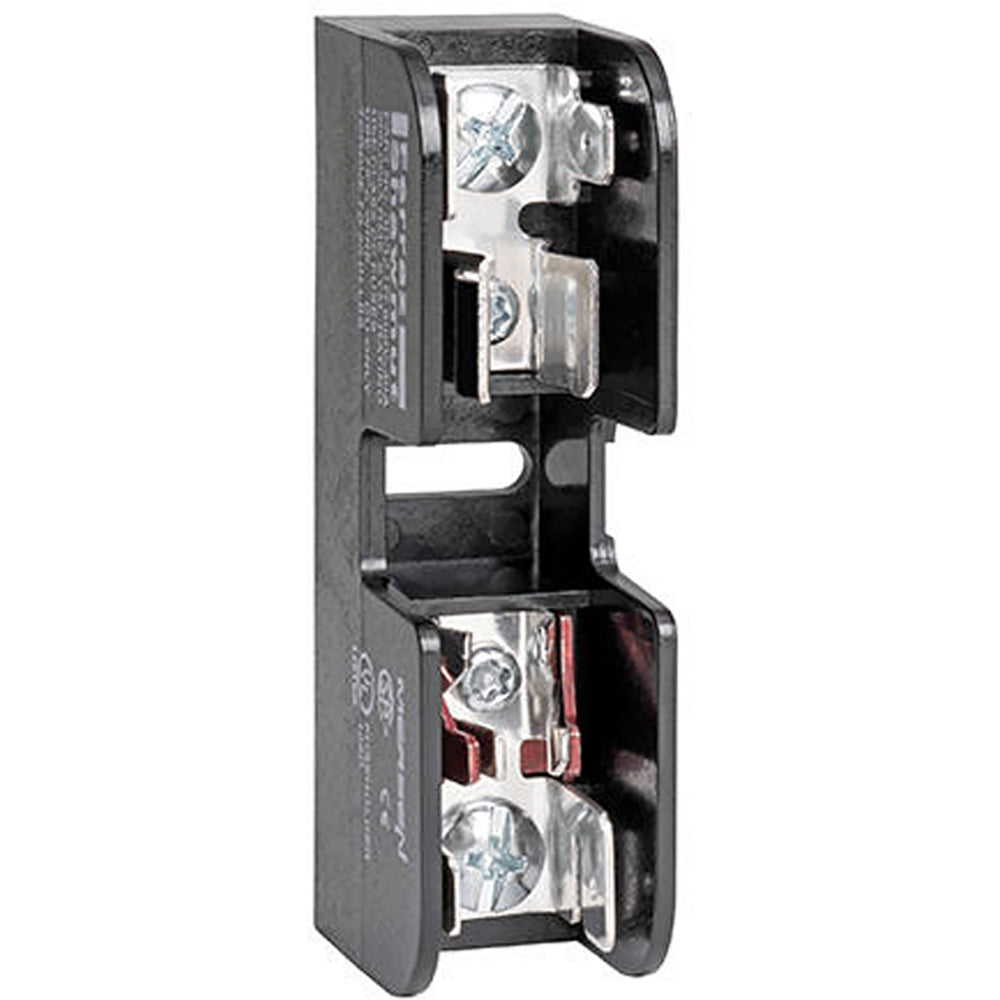

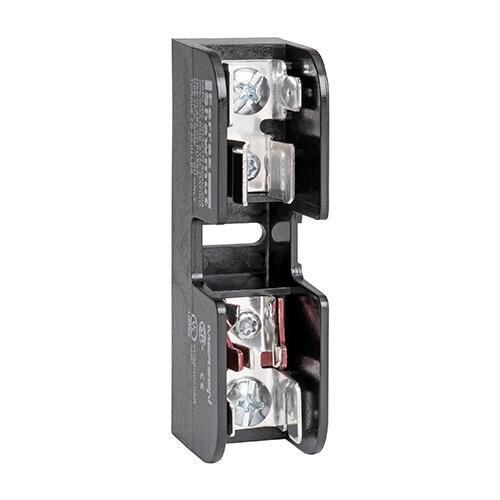

30321R is a Ferraz Shawmut Class CC fuse block rated for 30 amps and 600 volts AC/DC with 1 pole and versatile mounting options.30321R features a pressure plate with reinforced clip for secure fuse installation, supports Class CC fuses up to 30A, and is designed for screw or DIN rail mounting. It has a glass-filled polycarbonate body, UL and CSA approvals, and a high interrupt rating of 200kA SCCR.
- Amperage: 30 A
- Voltage: 600 VAC/VDC
- Poles: 1
- Fuse Class: Class CC
- Mounting Type: Screw Mount or DIN Rail
- Interrupt Rating (SCCR): 200 kA
- Body Material: Glass Filled Polycarbonate
- Fuse Installation: Pressure Plate with Reinforced Clip
- Wire Size: 14 to 10 AWG
- Certifications: UL 4248, CSA
- Frequency: 50/60 Hz
- Dimensions: 3.04" L x 0.75" W x 1.31" H
Specifications
- Part Number: 30321R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 303
- Voltage : 600
- Amperage : 30
- Mounting : Pressure Plate
Product Data
- UPC : 782001750091
- GTIN : 00782001750091
- Country of Origin : Mexico
- Dimensions : 0.85 in x 3.04 in x 1.31 in
- Weight : 0.11
