Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
30320

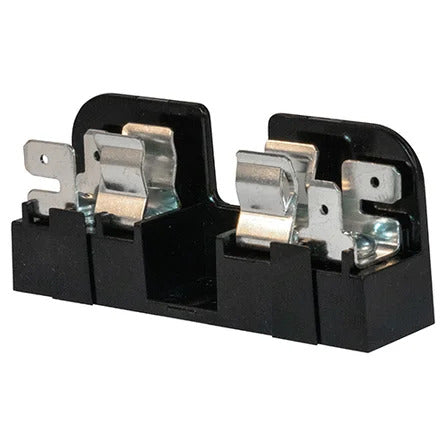

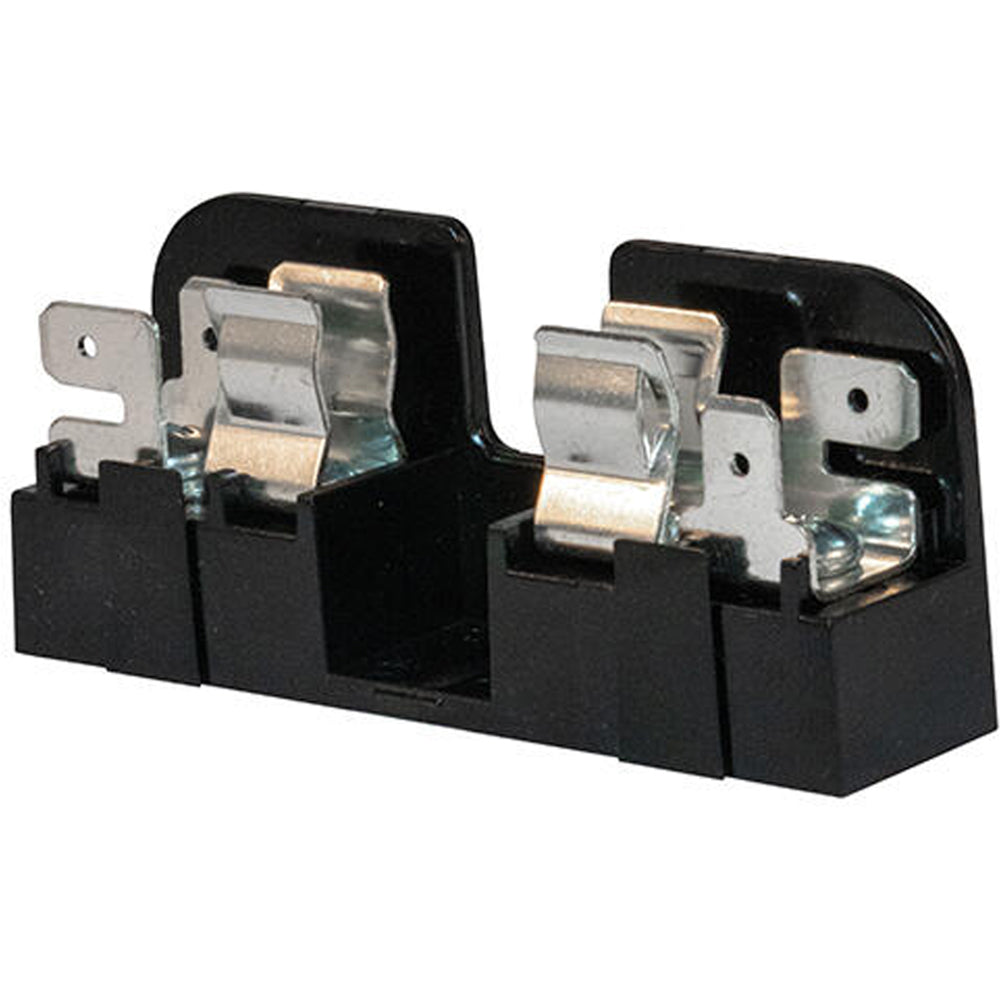

30320 is a Ferraz Shawmut midget fuse block designed for reliable circuit protection in demanding electrical applications.
This open-style fuse block accommodates 30A, 1-1/2" x 13/32" midget fuses, features a pressure plate with reinforced clip, and is suitable for both AC and DC circuits up to 600V. The robust glass filled polycarbonate construction ensures durability, while the double quick-connect terminals simplify installation. Ideal for industrial and commercial power distribution systems requiring high interrupting capacity and flexible mounting options.
Key Specifications
- Amperage: 30A
- Voltage: 600VAC/600VDC
- Poles: Adder (single pole)
- Mounting Type: DIN Rail or Screw Mount
- Interrupt Rating: 200,000A AC RMS; 10,000A DC (with quick connect)
- Series/Frame: 303 Series
- Trip Unit: Not applicable (fuse block only)
- Certifications: UL, CSA 6225, ROHS compliant
- Fuse Class: Midget (Class CC)
- Wire Range: #10-14 AWG (Copper)
- Body Material: Glass filled polycarbonate
- Dimensions: 3.04" H x 0.75" W x 1.31" D
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 30320
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 303
- Voltage : 600
- Amperage : 30
- Mounting : Pressure Plate
Product Data
- UPC : 782001759322
- GTIN : 00782001759322
- Weight : 0.10008975 lb
