Product Info
- Manufacturer:Eaton
- Sub-Category:Fuse Block
Description
30310R

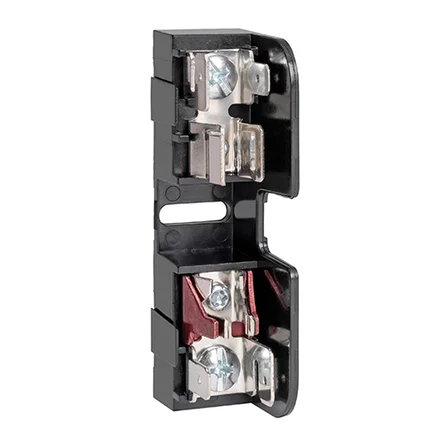

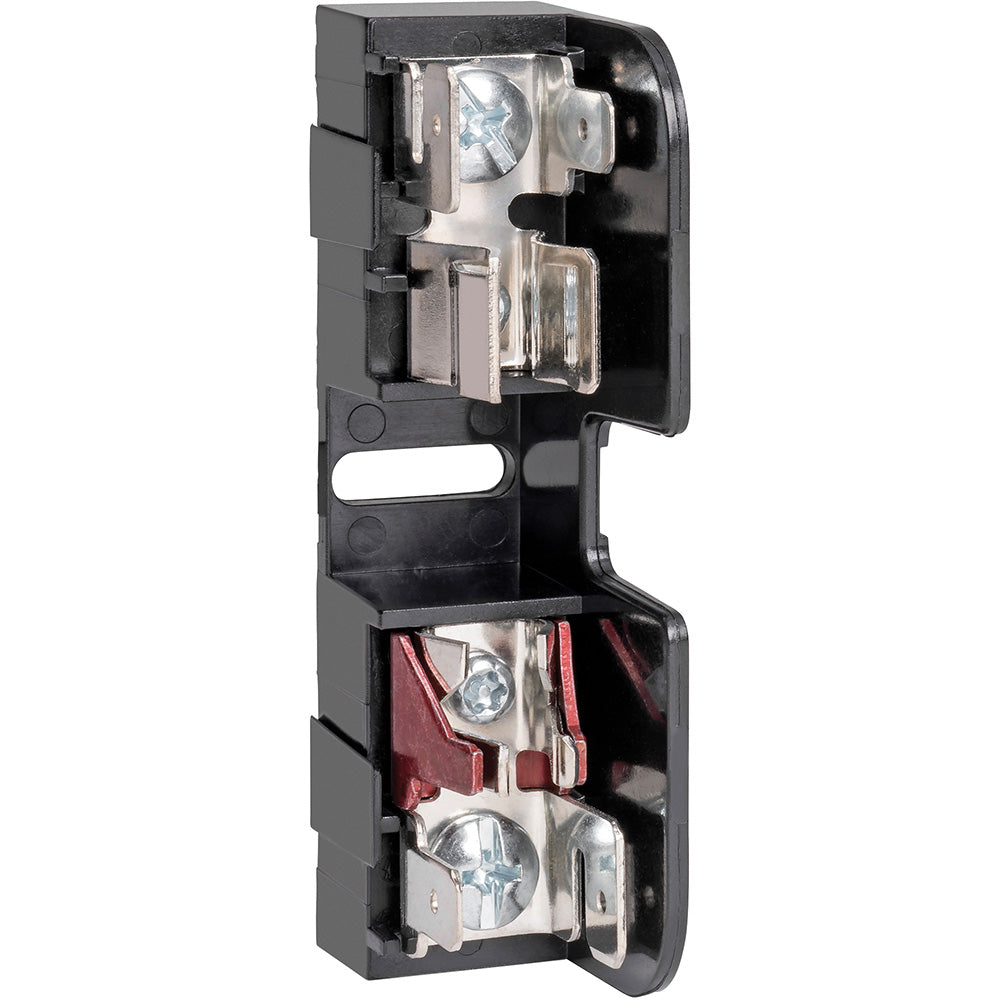

30310R is a 30 amp, 600 volt Class CC fuse block adder designed for secure screw mounting with reinforced clip.
This fuse block is part of the 303 Series Class CC open-style fuse blocks, suitable for both 600VAC and 600VDC applications. It features a screw connector type with reinforced clip for reliable fuse installation and supports wire sizes from 14 AWG to 10 AWG. The mounting style includes DIN-rail and screw options, and it is UL listed and CSA certified for safety and performance. The block is rated for a short circuit current of up to 200 kA and operates at a maximum temperature of 80°C.
- Manufacturer: Eaton Mersen
- Part Number: 30310R
- Fuse Type: Class CC
- Series: 303
- Amperage: 30A
- Voltage Rating: 600V AC/DC
- Number of Poles: Adder
- Connector Type: Screw with reinforced clip
- Mounting Style: DIN-Rail and screw mount
- Wire Range: 14 AWG to 10 AWG
- Short Circuit Current Rating: 200 kA
- Certifications: UL Listed, CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: 30310R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Fuse Block
- Type : 303
- Voltage : 600
- Amperage : 30
- Mounting : Screw
Product Data
- UPC : 782001759704
- GTIN : 00782001759704
- Country of Origin : Mexico
- Dimensions : 3/4 in x 3.04 in x 1.31 in
- Weight : 0.1
